2025 Kawasaki KLX150L (Indonesia Only) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2025 Kawasaki KLX150L (Indonesia Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

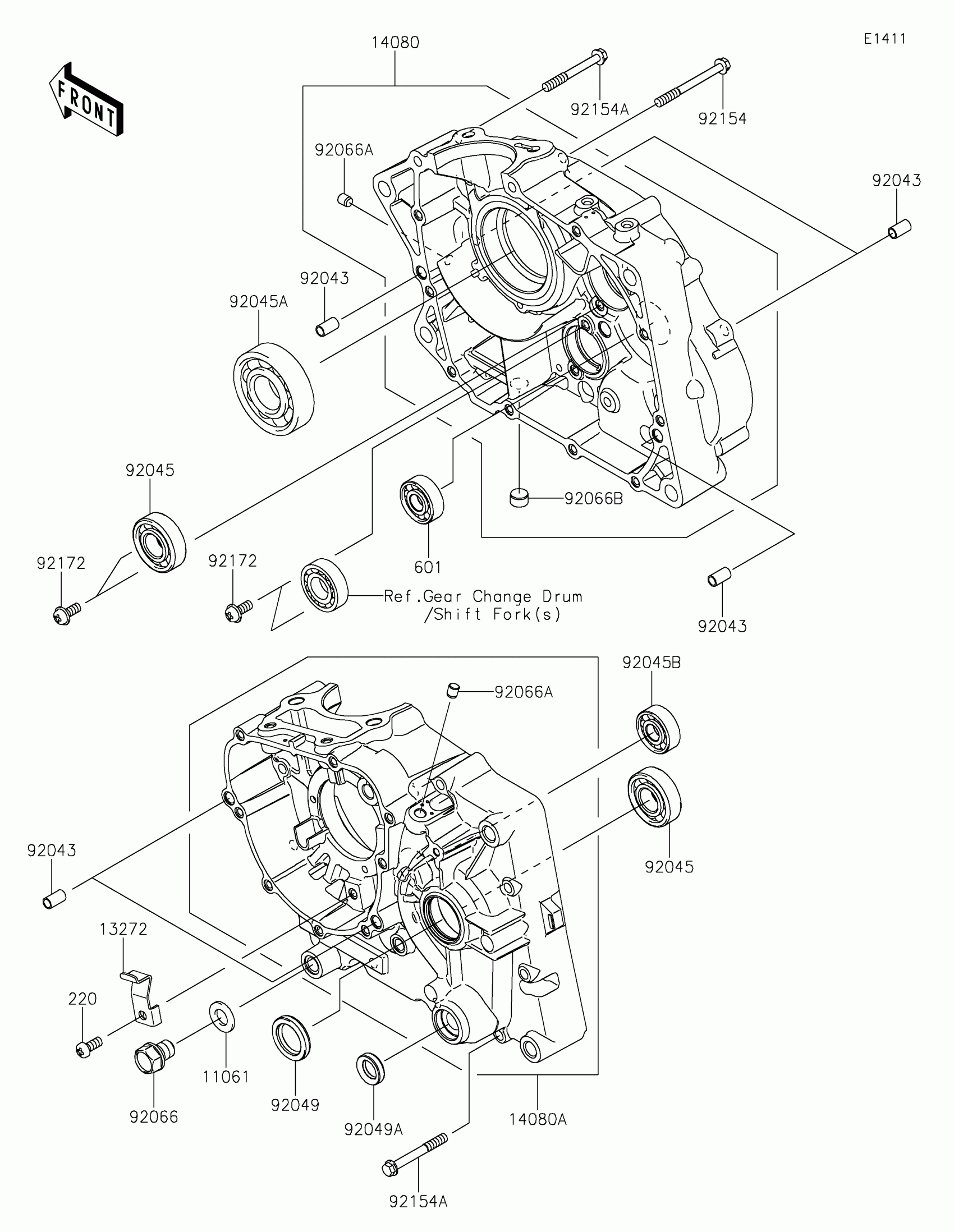

2025 Kawasaki KLX150L (Indonesia Only) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,DRAIN PLUG

11061-0421

1
Out of stock

13272

PLATE

13272-1384

1
Out of stock

14080

CRANKCASE,RH

14080-0251

1
Out of stock

14080A

CRANKCASE,LH

14080-0928

1
Out of stock

92043

PIN,6.2X8X14

92043-1741

1
Out of stock

92045

BEARING-BALL,#6203C2

92045-0745

1
Out of stock

92045A

BEARING-BALL,25X62X17

92045-0895

1
Out of stock

92045B

BEARING-BALL,12X32X10

92045-0896

1
Out of stock

92049

SEAL-OIL

92049-0811

1
Out of stock

92049A

SEAL-OIL

92049-1431

1
Out of stock

92066

PLUG,OIL DRAIN,12X15

92066-0768

1
Out of stock

92066A

PLUG,OIL LINE,7.2X8

92066-1012

1
Out of stock

92066B

PLUG

92066-1110

1
Out of stock

92154

BOLT,6X60

92154-1161

1
Out of stock

92154A

BOLT,6X50

92154-1168

1
Out of stock

92172

SCREW,6X14

92172-0850

1
Out of stock

220

SCREW-PAN-CROSS,6X14

220AA0614

1
Out of stock

601

BEARING-BALL

601A6201

1
Out of stock
