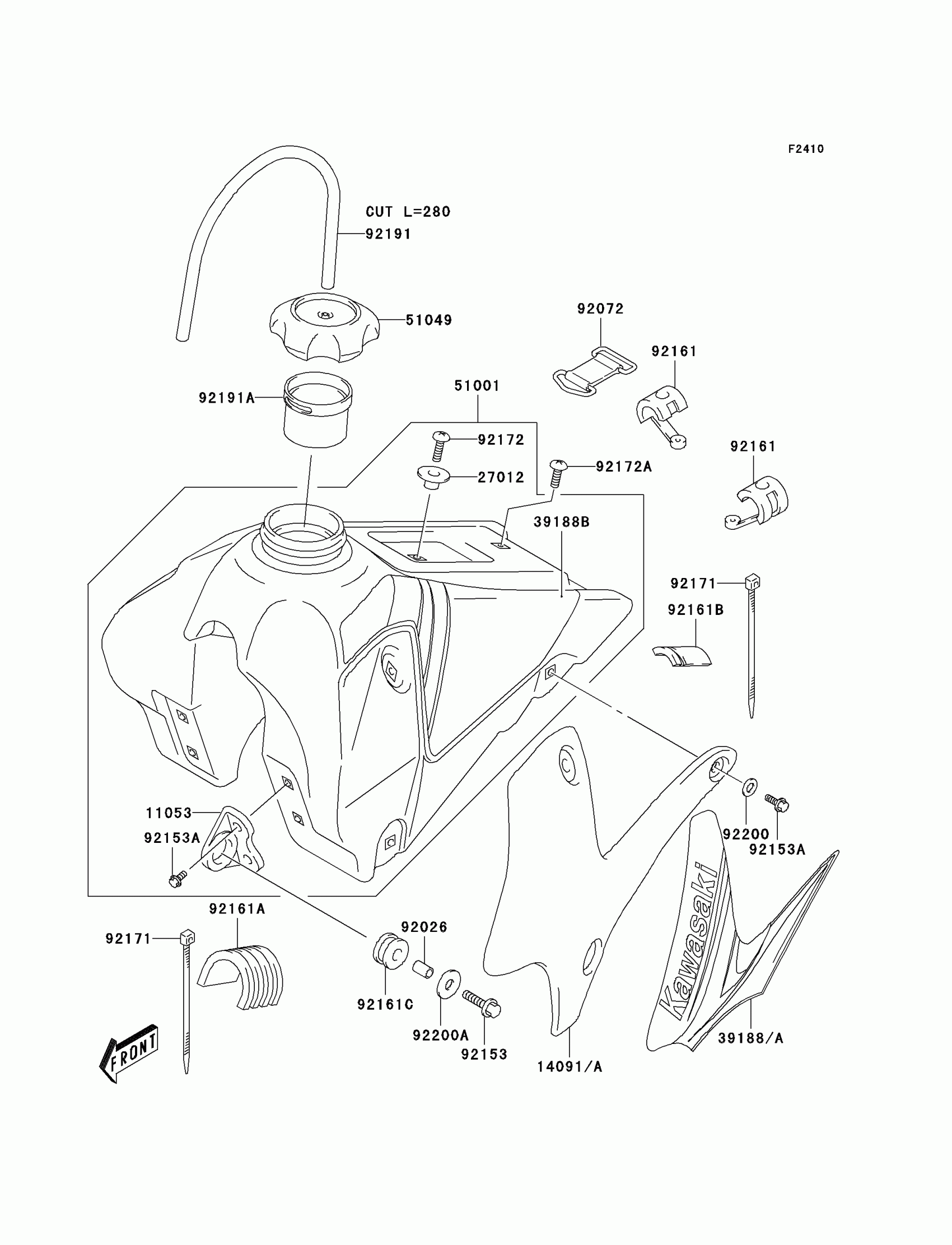

Kawasaki KLX125L Fuel Tank(B1) Diagram

#

Description
Price

11053

BRACKET,FUEL TANK,FR

11053-S001

$12.34

14091

COVER,FUEL TANK,RH,L.GREEN

14091-S062-535

$48.82

14091A

COVER,FUEL TANK,LH,L.GREEN

14091-S063-535

$48.82

27012

HOOK,SEAT FRONT

27012-S003

$8.97

39188

TAPE,FUEL TANK COVER,RH

39188-S002-537

$98.18

39188A

TAPE,FUEL TANK COVER,LH

39188-S003-537

Unavailable

39188B

TAPE SET,FUEL TANK

39188-S005-536

$241.44

51001

TANK-COMP-FUEL,S.BLACK

51001-S004-539

$569.71

51049

CAP-TANK

51049-S004

$45.12

92026

SPACER,FUEL TANK,FR

92026-S049

Unavailable

92072

BAND,FUEL TANK,RR

92072-S004

$14.47

92153

BOLT

92153-S003

Unavailable

92153A

BOLT

92153-S144

Unavailable

92161

DAMPER,FUEL TANK

92161-S062

$9.02

92161A

DAMPER,FUEL TANK

92161-S063

$23.22

92161B

DAMPER,FUEL TANK

92161-S064

$9.02

92161C

DAMPER,FUEL TANK

92161-S065

Unavailable

92171

CLAMP,FUEL TANK CUSHION

92171-S056

$4.34

92172

SCREW

92172-S019

$1.42

92172A

SCREW

92172-S055

$1.42

92191

TUBE,FUEL TANK BREATHER

92191-S028

$7.30

92191A

TUBE,FUEL TANK FILLER

92191-S029

$8.00

92200

WASHER

92200-S078

$1.87

92200A

WASHER

92200-S080

$2.27
