2005 Kawasaki KLX125L Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2005 Kawasaki KLX125L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

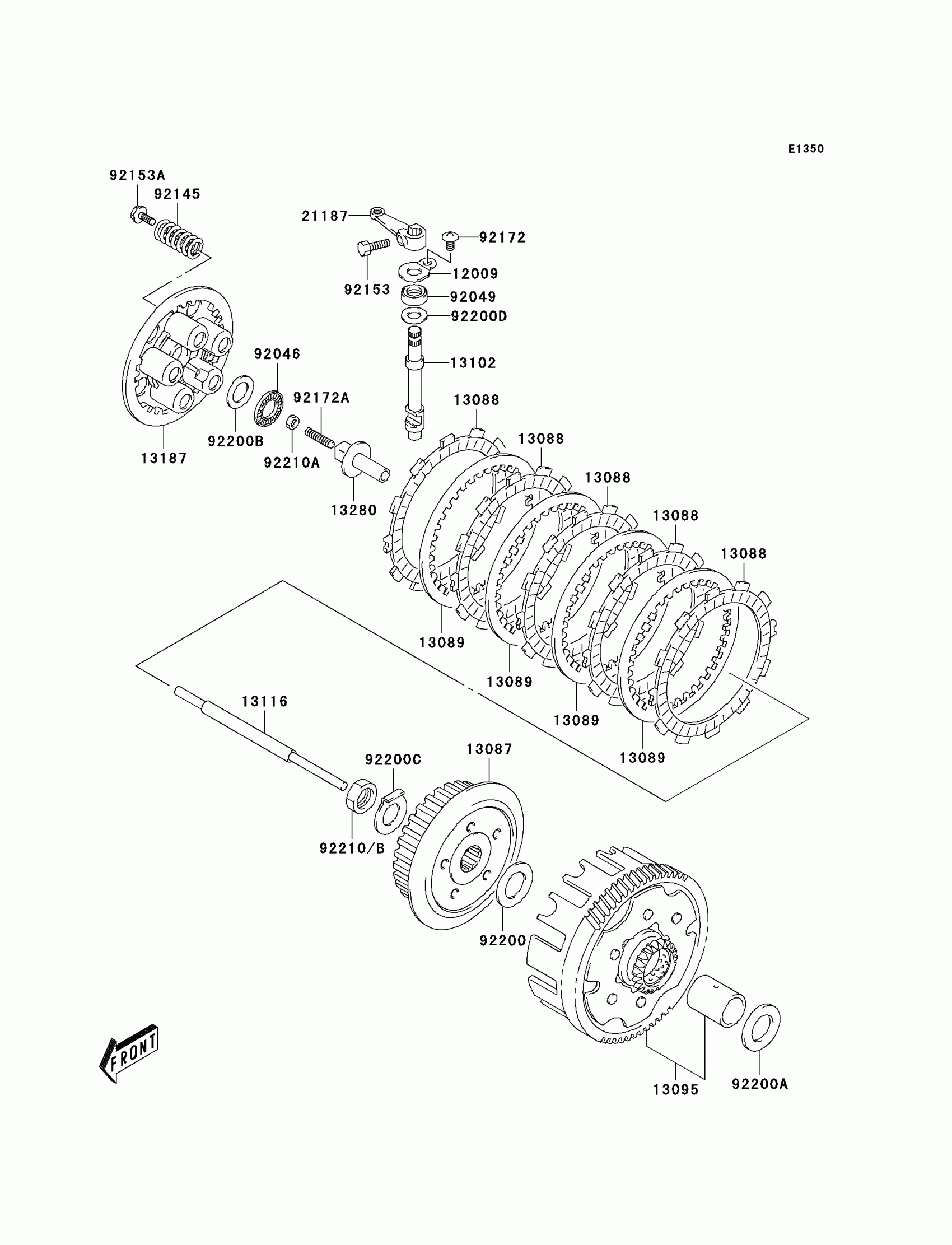

2005 Kawasaki KLX125L Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12009

1

$4.66

In stock

13087

HUB-CLUTCH

13087-S001

1

$71.58

In stock

13088

PLATE-FRICTION

13088-S001

1

$17.63

In stock

13089

PLATE-CLUTCH

13089-S001

1

$7.73

In stock

13095

HOUSING-COMP-CLUTCH

13095-S003

1

$223.53

In stock

13102

RELEASE-COMP-CLUTCH

13102-S002

1

$42.86

In stock

13116

ROD-PUSH

13116-S002

1

$10.88

In stock

13187

1

$21.03

In stock

13280

HOLDER,CLUTCH PUSH

13280-S012

1

$23.22

In stock

21187

1

$23.83

In stock

92046

BEARING-NEEDLE,15X28X2

92046-S006

1
Out of stock

92049

SEAL-OIL,10X20X6

92049-S018

1
Out of stock

92145

SPRING

92145-S041

1

$4.17

In stock

92153

BOLT

92153-S126

1
Out of stock

92153A

BOLT,5X16

92153-S137

1

$2.27

In stock

92172

SCREW

92172-S092

1
Out of stock

92172A

SCREW

92172-S093

1

$3.76

In stock

92200

WASHER

92200-S025

1
Out of stock

92200A

WASHER

92200-S055

1
Out of stock

92200B

WASHER,15.5X28X1

92200-S056

1
Out of stock

92200C

WASHER

92200-S060

1
Out of stock

92200D

WASHER,10X20X1.0

92200-S061

1
Out of stock

92210A

NUT,6X3.6

92210-S047

1
Out of stock

92210B

NUT

92210-S157

1
Out of stock
