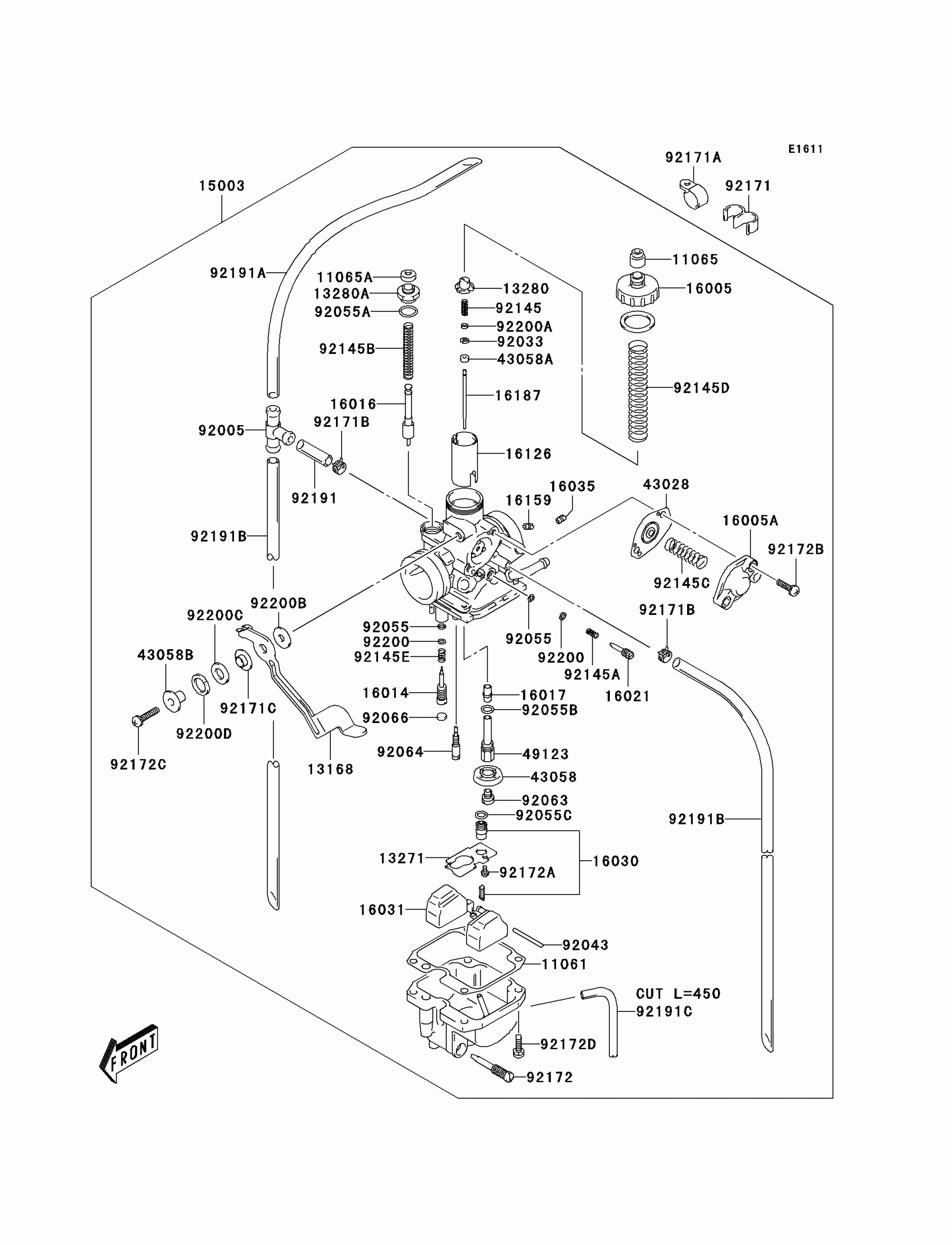

Kawasaki KLX125L Carburetor Diagram

#

Description
Price

11061

GASKET

11061-S052

$13.17

11065

CAP

11065-S020

$2.73

11065A

CAP

11065-S031

$4.81

13168

LEVER

13168-S001

$19.51

13271

PLATE

13271-S036

$5.98

13280

HOLDER

13280-S015

$6.32

13280A

HOLDER

13280-S021

$10.95

15003

CARBURETOR-ASSY

15003-S003

$329.86

16005

TOP-CHAMBER

16005-S003

$25.58

16005A

TOP-CHAMBER

16005-S004

$33.07

16014

SCREW-PILOT AIR

16014-S003

$13.44

16016

PLUNGER

16016-S006

Unavailable

16017

JET-NEEDLE

16017-S002

$46.16

16021

SCREW-THROTTLE STOP

16021-S002

$12.53

16030

VALVE-FLOAT

16030-S003

$50.15

16031

FLOAT

16031-S003

$34.31

16035

JET-AIR,#85

16035-S002

$13.37

16126

VALVE,PISTON

16126-S005

$56.73

16159

JET-POWER,POWER,145

16159-S001

$14.32

16187

NEEDLE-JET

16187-S003

$10.53

43028

DIAPHRAGM

43028-S008

$24.95

43058

RING

43058-S002

$6.32

43058A

RING

43058-S005

$8.44

43058B

RING

43058-S006

$5.63

49123

HOLDER-MAIN JET

49123-S003

$34.18

92005

FITTING

92005-S004

Unavailable

92033

RING-SNAP

92033-S033

$4.97

92043

PIN

92043-S034

$4.17

92055

RING-O

92055-S013

$4.81

92055A

RING-O

92055-S048

$2.20

92055B

RING-O

92055-S049

$4.81

92055C

RING-O

92055-S050

$4.97

92063

JET-MAIN

92063-S005

$10.64

92064

JET-PILOT,#17.5

92064-S003

$24.32

92066

PLUG

92066-S027

$5.10

92145

SPRING

92145-S013

$4.10

92145A

SPRING

92145-S054

$4.56

92145B

SPRING

92145-S055

$5.03

92145C

SPRING

92145-S056

$4.34

92145D

SPRING

92145-S057

$9.05

92145E

SPRING

92145-S088

$4.81

92171

CLAMP,AIR VENT HOSE

92171-S052

$2.07

92171A

CLAMP

92171-S060

$4.07

92171B

CLAMP

92171-S061

$5.24

92171C

CLAMP

92171-S083

$4.17

92172

SCREW

92172-S113

$5.00

92172A

SCREW

92172-S114

$2.81

92172B

SCREW

92172-S115

$3.83

92172C

SCREW

92172-S116

$4.10

92172D

SCREW

92172-S139

$2.76

92191

TUBE,5X8X25

92191-S035

$2.58

92191A

TUBE,5X8X375

92191-S036

$8.22

92191B

TUBE,5X8X475

92191-S037

$9.80

92191C

TUBE

92191-S053

$10.46

92200

WASHER

92200-S019

$1.81

92200A

WASHER

92200-S082

Unavailable

92200B

WASHER

92200-S122

$3.49

92200C

WASHER

92200-S123

$1.95

92200D

WASHER

92200-S124

$2.08
