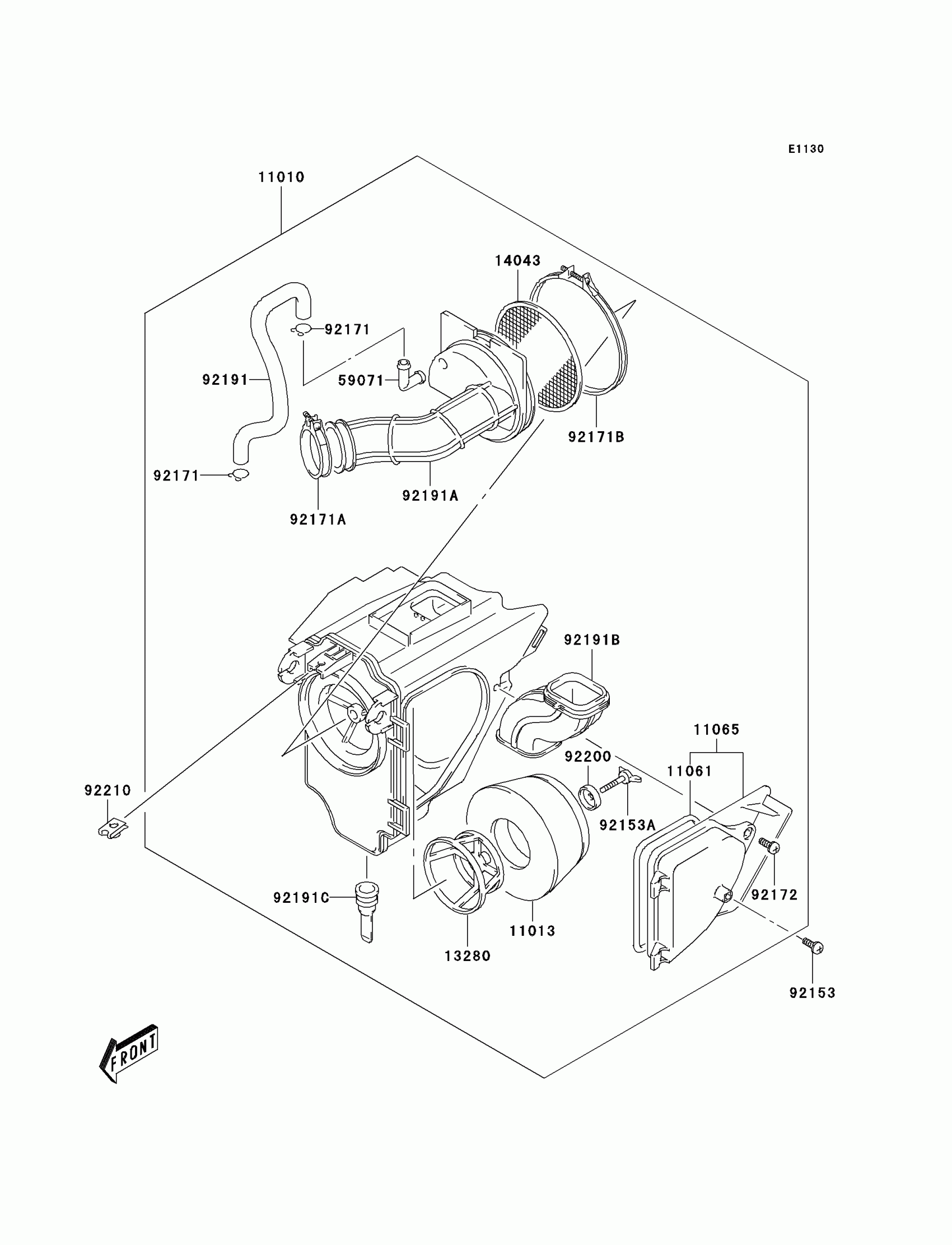

Kawasaki KLX125L Air Cleaner Diagram

Description

Price

11010A

FILTER-ASSY-AIR

11010-S007

$217.51

11013

ELEMENT-AIR FILTER

11013-S004

$36.90

11061

GASKET

11061-S039

Unavailable

11065

CAP,AIR CLEANER

11065-S033

$25.75

13280

HOLDER,FILTER

13280-S014

$11.76

14043

FILTER

14043-S003

$11.90

59071

JOINT

59071-S003

$8.29

92153

BOLT

92153-S011

$1.42

92153A

BOLT

92153-S165

$7.61

92171

CLAMP

92171-S006

$2.49

92171A

CLAMP

92171-S009

$4.97

92171B

CLAMP,OUTLET TUBE

92171-S054

Unavailable

92172

SCREW

92172-S163

$1.64

92191

TUBE,BREATHER

92191-S030

$20.29

92191A

TUBE,OUTLET

92191-S032

$50.64

92191B

TUBE,INLET

92191-S033

$25.53

92191C

TUBE,DRAIN

92191-S043

$5.98

92200

WASHER

92200-S076

$4.81

92210

NUT

92210-S050

$4.32
