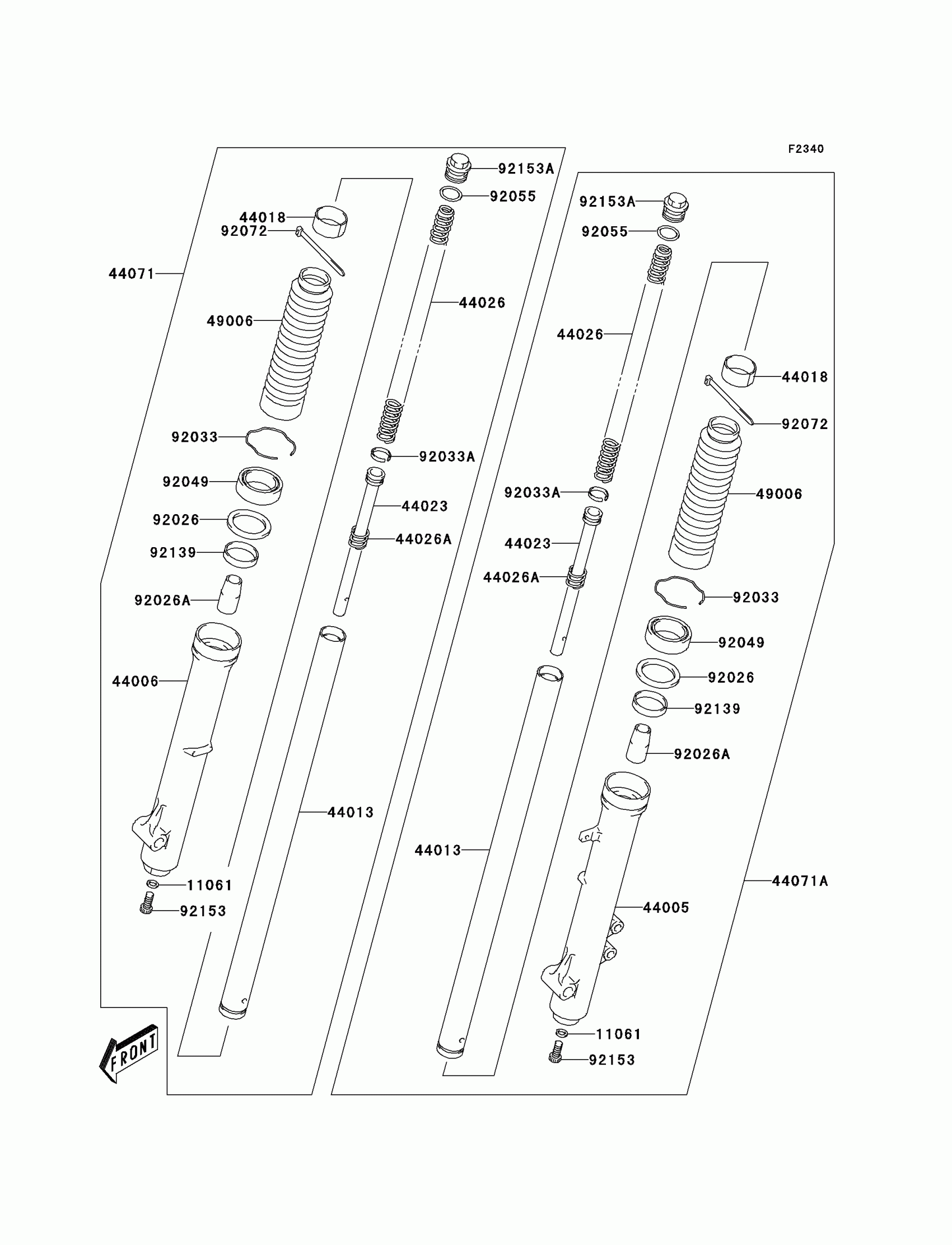

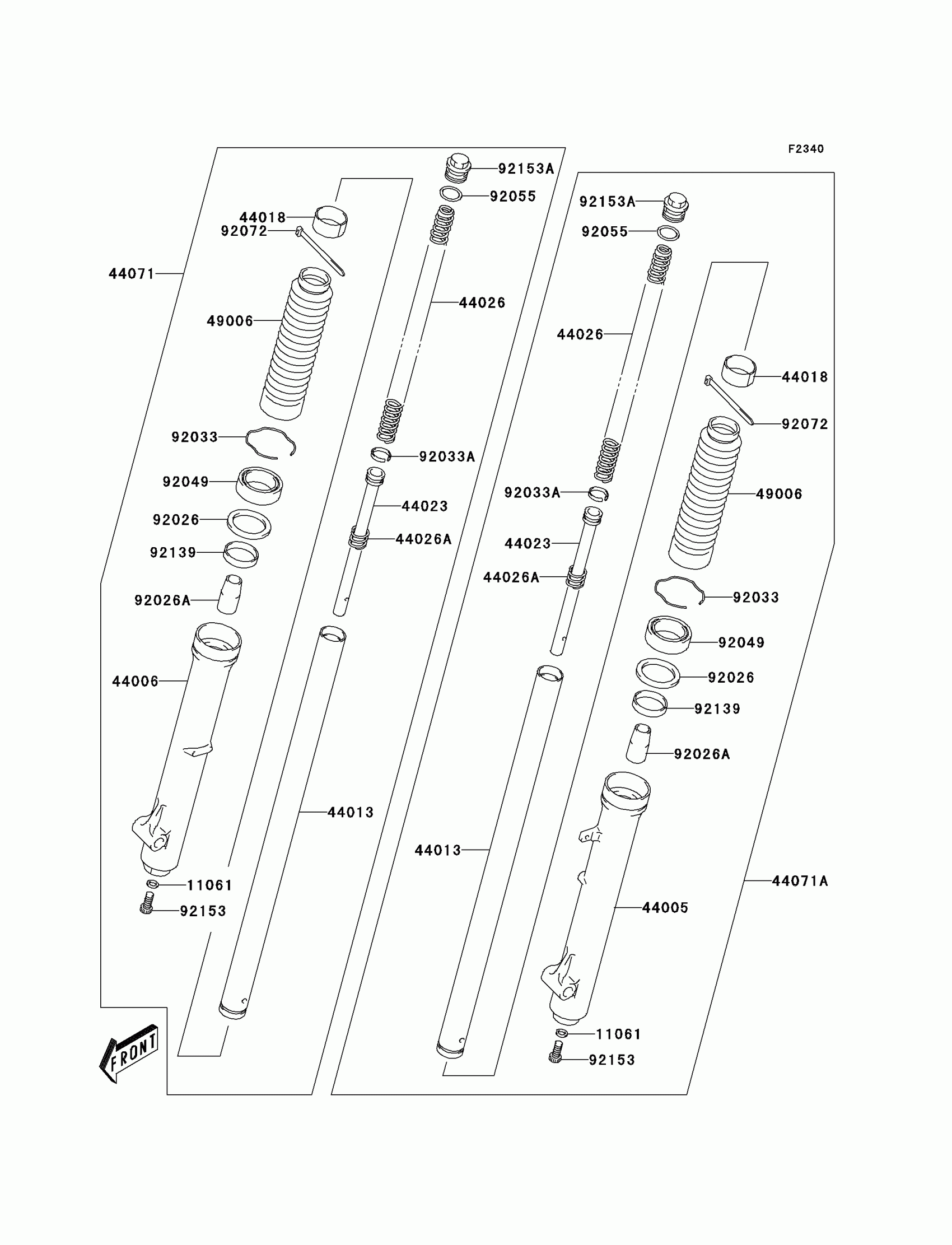

Kawasaki KLX125L Front Fork Diagram

#

Description
Price

11061

GASKET

11061-S019

$4.10

44005

PIPE-LEFT FORK OUTER

44005-S005

$273.43

44006

PIPE-RIGHT FORK OUTER

44006-S005

$273.43

44013

PIPE-FORK INNER

44013-S003

$241.04

44018

PISTON-FORK

44018-S002

$18.49

44023

CYLINDER-SET-FORK

44023-S002

$50.64

44026

SPRING-FRONT FORK

44026-S005

$54.94

44026A

SPRING-FRONT FORK

44026-S006

$5.29

44071

DAMPER-ASSY,FRONT FORK,RH

44071-S003

$552.18

44071A

DAMPER-ASSY,FRONT FORK,LH

44071-S004

$552.18

49006

BOOT

49006-S011

$46.89

92026

SPACER

92026-S079

$5.58

92026A

SPACER

92026-S080

$15.08

92033

RING-SNAP

92033-S035

$4.81

92033A

RING-SNAP

92033-S036

$7.19

92049

SEAL-OIL

92049-S047

$12.90

92055

RING-O

92055-S051

$4.10

92072

BAND

92072-S005

$8.63

92139

BUSHING

92139-S021

$12.92

92153

BOLT

92153-S241

$4.81

92153A

BOLT

92153-S242

$17.54
