2005 Kawasaki KLX125L Front Hub Diagram

← All diagrams

Find the part on the Front Hub diagram for your 2005 Kawasaki KLX125L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

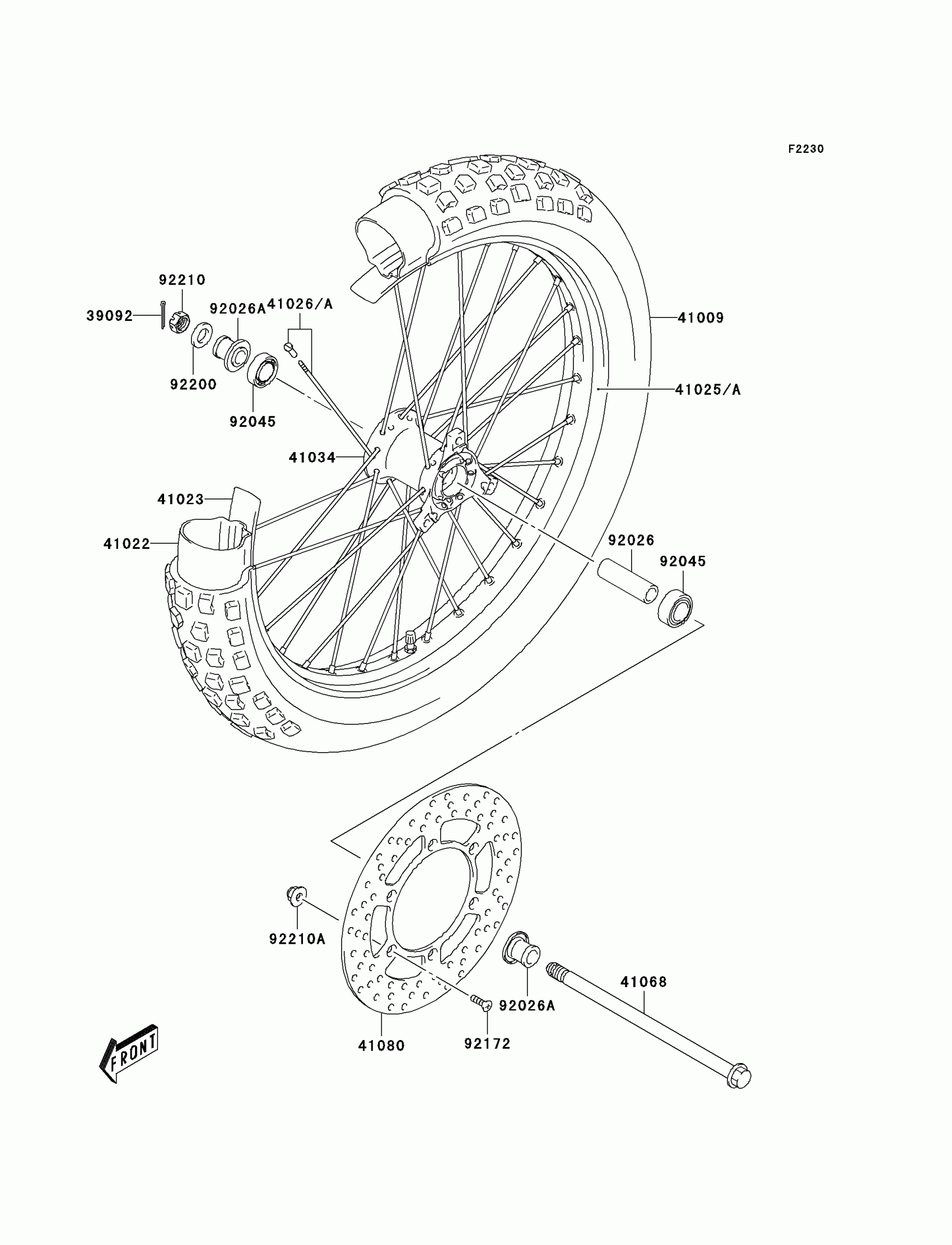

2005 Kawasaki KLX125L Front Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39092

PIN-HAIR,COTTER

39092-S005

1

$1.64

In stock

41009

TIRE,FR

41009-S007

1

$96.90

In stock

41022

TUBE-TIRE

41022-S003

1

$35.12

In stock

41023

BAND-RIM

41023-S003

1

$5.27

In stock

41025A

RIM

41025-S018

1

$269.71

In stock

41026A

SPOKE-ASSY

41026-S012

1

$45.41

In stock

41034

1

$229.74

In stock

41068

AXLE,FR

41068-S005

1

$39.44

In stock

41080

DISC

41080-S004

1

$195.53

In stock

92026

SPACER,FRONT HUB BEARING

92026-S050

1
Out of stock

92026A

SPACER,FRONT AXLE

92026-S051

1
Out of stock

92045

1

$19.85

In stock

92172

SCREW

92172-S109

1

$2.44

In stock

92200

WASHER

92200-S079

1
Out of stock

92210

NUT

92210-S064

1
Out of stock

92210A

NUT

92210-S066

1
Out of stock
