2005 Kawasaki KLX125L Handle Lever Diagram

← All diagrams

Find the part on the Handle Lever diagram for your 2005 Kawasaki KLX125L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

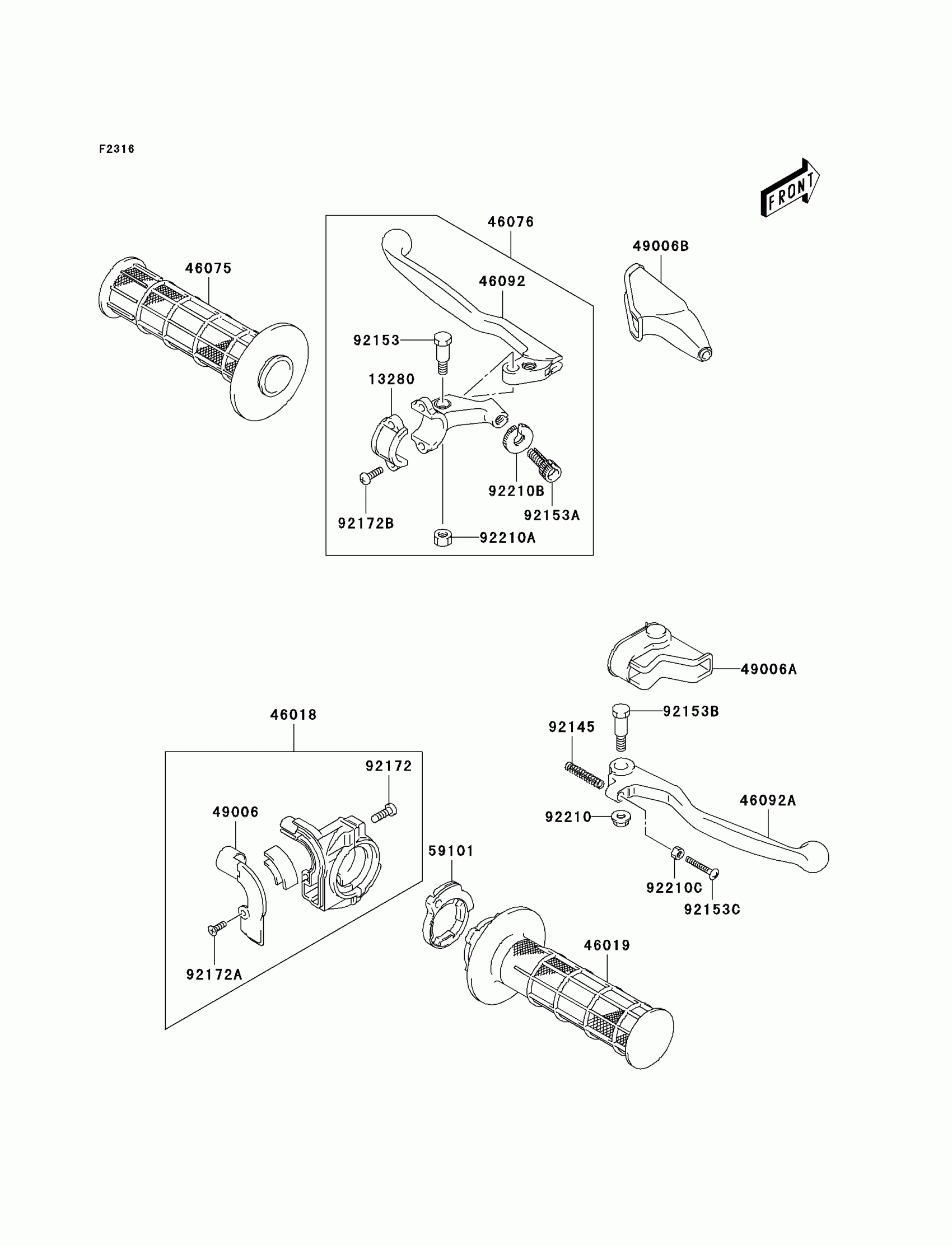

2005 Kawasaki KLX125L Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13280

1

$21.02

In stock

46018

GRIP-ASSY-THROTTLE

46018-S001

1

$72.17

In stock

46019

GRIP-ASSY,THROTTLE

46019-S003

1

$33.83

In stock

46075

GRIP

46075-S003

1

$14.22

In stock

46076

1

$37.99

In stock

46092

LEVER-GRIP,CLUTCH

46092-S004

1

$12.36

In stock

46092A

LEVER-GRIP,BRAKE

46092-S006

1

$15.12

In stock

49006

BOOT

49006-S008

1

$10.05

In stock

49006A

BOOT,BRAKE LEVER

49006-S010

1
Out of stock

49006B

BOOT

49006-S019

1
Out of stock

59101

REEL,THROTTLE GRIP

59101-S001

1

$9.07

In stock

92145

SPRING,RETURN

92145-S052

1

$4.97

In stock

92153

BOLT

92153-S156

1

$8.00

In stock

92153A

BOLT,CABLE

92153-S157

1

$9.29

In stock

92153B

BOLT

92153-S170

1

$8.00

In stock

92153C

BOLT

92153-S171

1

$6.32

In stock

92172

SCREW

92172-S097

1

$2.20

In stock

92172A

SCREW

92172-S098

1
Out of stock

92172B

SCREW

92172-S100

1

$1.63

In stock

92210

NUT

92210-S004

1
Out of stock

92210A

NUT

92210-S053

1
Out of stock

92210B

NUT

92210-S059

1
Out of stock

92210C

NUT

92210-S065

1
Out of stock
