2005 Kawasaki KLX125L Front Master Cylinder Diagram

← All diagrams

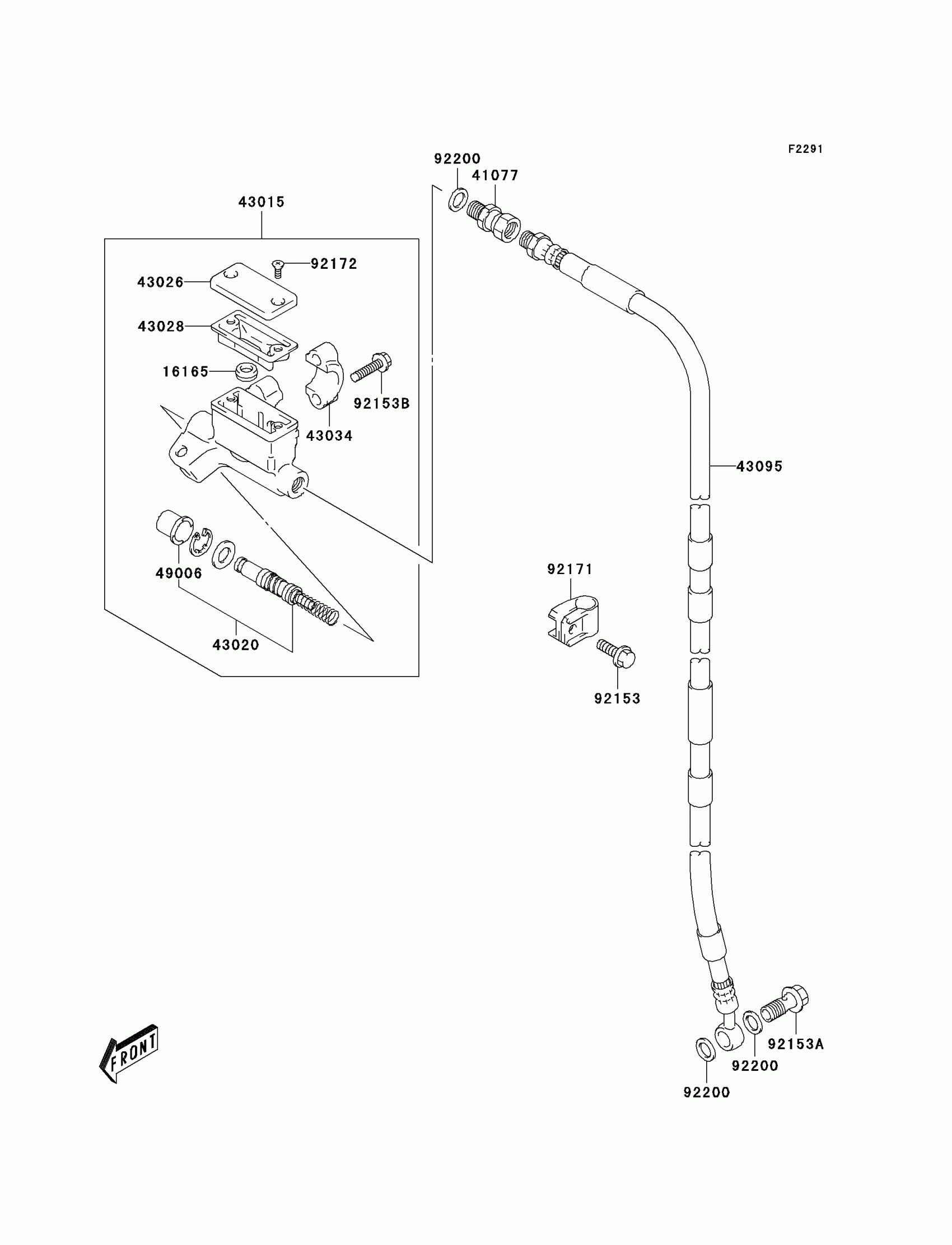

Find the part on the Front Master Cylinder diagram for your 2005 Kawasaki KLX125L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki KLX125L Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16165

SEPARATOR

16165-S005

1

$10.90

In stock

41077

ADAPTER

41077-S002

1
Out of stock

43015

1

$372.38

In stock

43020

PISTON-COMP-BRAKE

43020-S003

1

$54.16

In stock

43026

CAP-BRAKE

43026-S003

1

$18.95

In stock

43028

DIAPHRAGM

43028-S006

1

$10.95

In stock

43034

HOLDER-BRAKE

43034-S003

1

$15.66

In stock

43095

HOSE-BRAKE

43095-S006

1
Out of stock

49006

BOOT

49006-S004

1

$5.86

In stock

92153

BOLT

92153-S002

1

$1.64

In stock

92153A

BOLT

92153-S053

1
Out of stock

92153B

BOLT

92153-S172

1

$3.98

In stock

92171

1

$5.98

In stock

92172

SCREW,RESERVOIR CAP

92172-S054

1

$1.81

In stock

92200

WASHER,10X15X1.5

92200-S014

1
Out of stock
