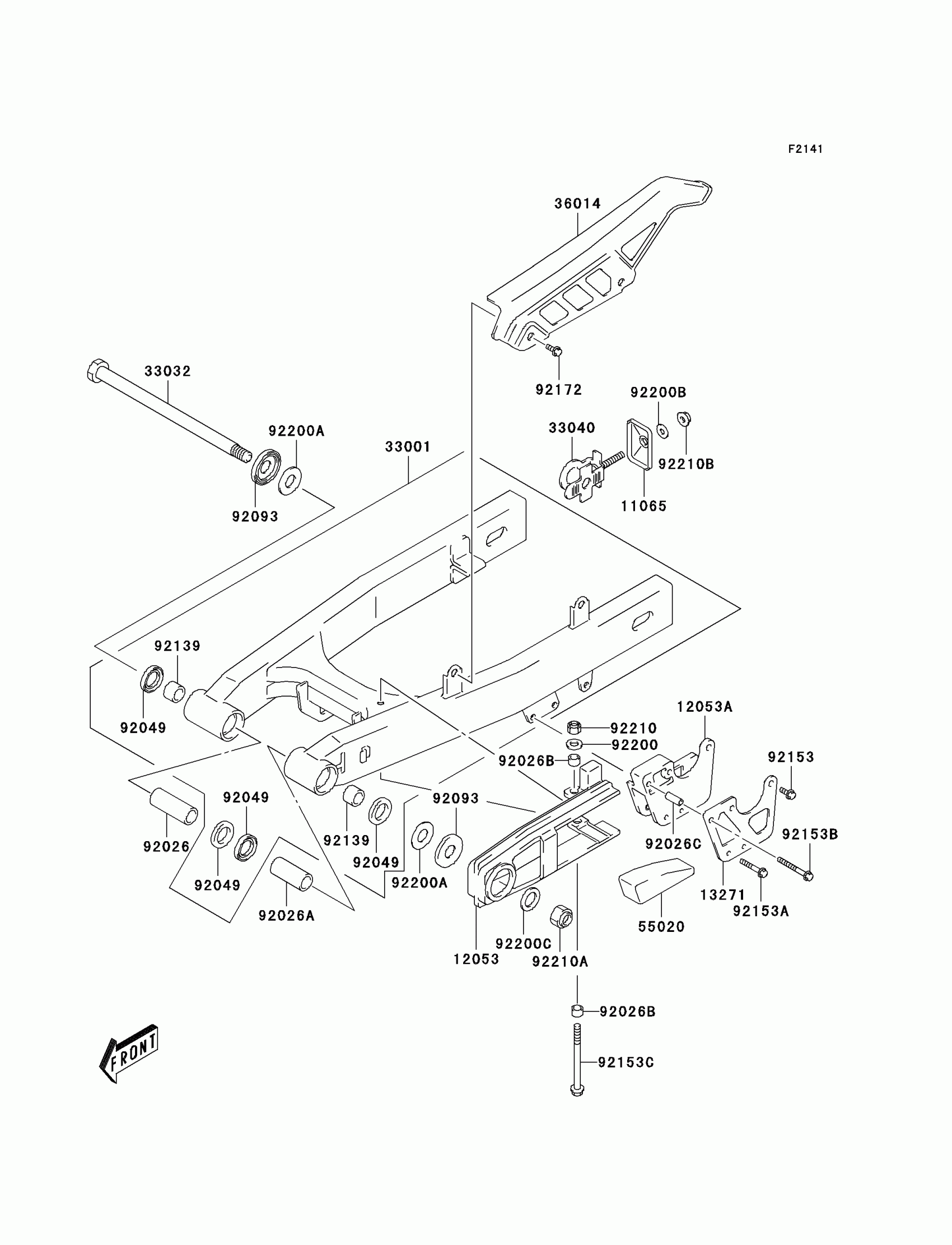

Kawasaki KLX125 Swingarm Diagram

#

Description
Price

11065

CAP,CHAIN ADJUSTER GUIDE

11065-S018

$5.63

12053

GUIDE-CHAIN

12053-S008

$30.62

12053A

GUIDE-CHAIN,CHAIN

12053-S011

$37.49

13271

PLATE,CHAIN,GUIDE

13271-S023

$34.18

33001

ARM-COMP-SWING,B.SILVER

33001-S001-530

$464.37

33032

SHAFT-SWING ARM

33032-S001

$36.49

33040

ADJUSTER-CHAIN

33040-S001

$32.32

36014

CASE-CHAIN

36014-S001

Unavailable

55020

GUARD,CHAIN,GUIDE

55020-S007

$15.95

92026

SPACER,SWING ARM PIVOT,RH

92026-S042

$23.03

92026A

SPACER,SWING ARM PIVOT,LH

92026-S043

$19.90

92026B

SPACER,CHAIN

92026-S052

$2.44

92026C

SPACER,CHAIN GUIDE

92026-S054

$2.34

92049

SEAL-OIL,SWINGARM

92049-S022

$5.63

92093

SEAL,REAR SWINGARM

92093-S012

$9.05

92139

BUSHING,REAR SWINGARM PIVOT

92139-S008

$16.49

92153

BOLT

92153-S177

$1.96

92153A

BOLT

92153-S178

$2.80

92153B

BOLT

92153-S179

$2.27

92153C

BOLT

92153-S243

$2.19

92172

SCREW,6X10

92172-S099

$2.11

92200

WASHER

92200-S003

$1.42

92200A

WASHER

92200-S068

$3.68

92200B

WASHER,12.5X26X2.3

92200-S070

$2.38

92200C

WASHER,14.5X24X2.3

92200-S072

$2.76

92210

NUT

92210-S024

Unavailable

92210A

NUT

92210-S057

$12.49

92210B

NUT

92210-S094

$2.97
