2005 Kawasaki KLX125 Shock Absorber Diagram

← All diagrams

Find the part on the Shock Absorber diagram for your 2005 Kawasaki KLX125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

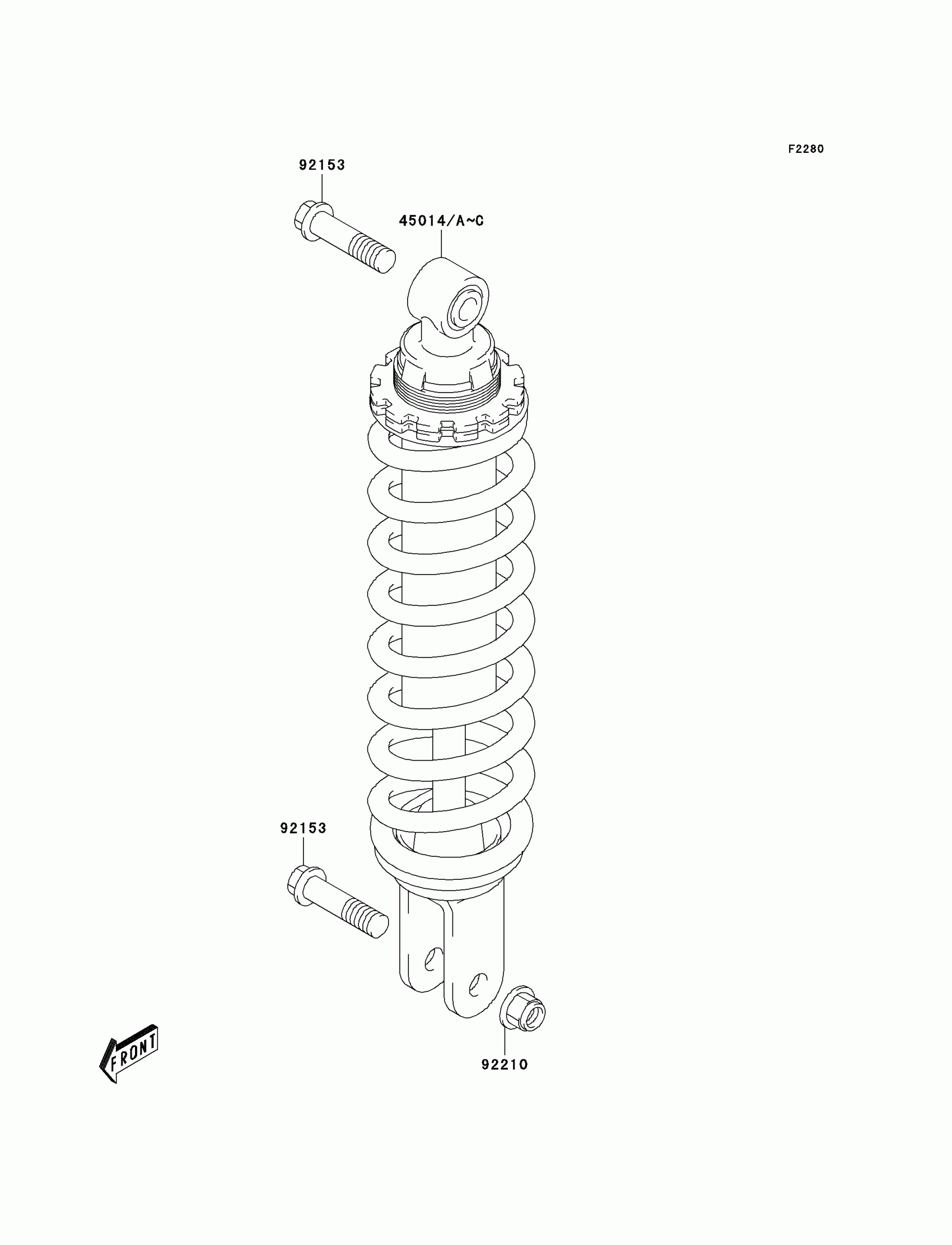

2005 Kawasaki KLX125 Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92153

BOLT

92153-S160

1

$5.92

In stock

92210

NUT

92210-S015

1
Out of stock

45014B

SHOCKABSORBER,T.SILVER

45014-S039-903

1
Out of stock

45014C

SHOCKABSORBER,T.SILVER

45014-S040-903

1

$906.20

In stock
