2006 Kawasaki KLX125 Rear Hub Diagram

← All diagrams

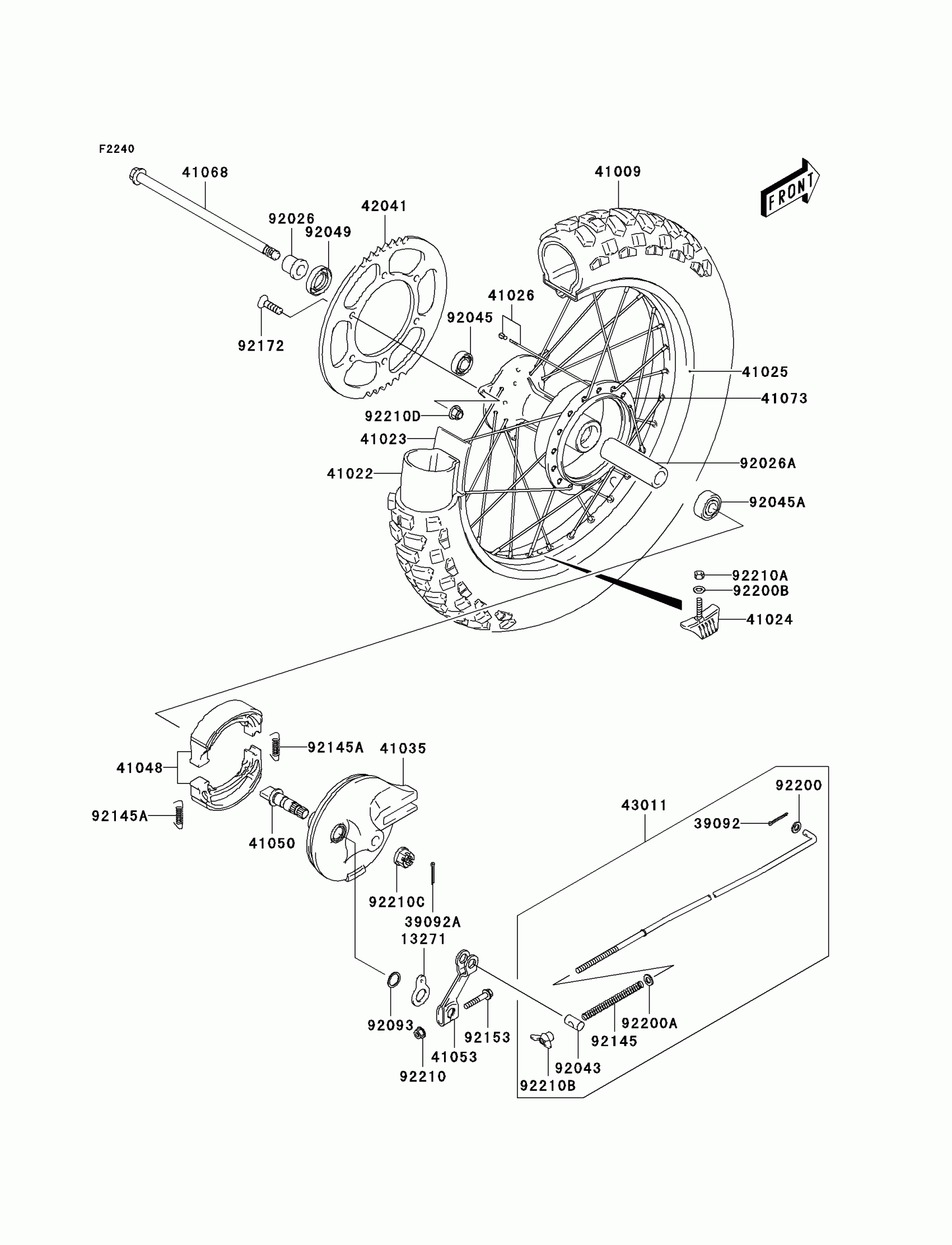

Find the part on the Rear Hub diagram for your 2006 Kawasaki KLX125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Kawasaki KLX125 Rear Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13271

1

$4.66

In stock

39092

PIN-HAIR,COTTER

39092-S005

1

$1.64

In stock

39092A

PIN-HAIR,REAR AXLE COTTER

39092-S006

1
Out of stock

41009

TIRE,RR

41009-S006

1
Out of stock

41022

TUBE-TIRE

41022-S002

1
Out of stock

41023

BAND-RIM

41023-S002

1

$6.58

In stock

41024

STOPPER-RIM

41024-S001

1
Out of stock

41025

1

$276.08

In stock

41026

1

$51.72

In stock

41035

PANEL-ASSY-BRAKE

41035-S002

1

$134.90

In stock

41048

SHOE-BRAKE

41048-S003

1
Out of stock

41050

CAM-BRAKE

41050-S003

1

$21.75

In stock

41053

LEVER-BRAKE CAM

41053-S003

1

$20.93

In stock

41068

AXLE,RR

41068-S004

1

$40.98

In stock

41073

WHEEL-ASSY,REAR

41073-S016

1

$274.63

In stock

42041

SPROCKET-HUB,51T

42041-S001

1

$63.02

In stock

43011

ROD-BRAKE

43011-S001

1

$19.90

In stock

92026

SPACER,REAR AXLE

92026-S055

1

$15.36

In stock

92026A

1

$10.42

In stock

92043

1

$2.27

In stock

92045

1

$13.70

In stock

92045A

1

$14.14

In stock

92049

SEAL-OIL,REAR HUB

92049-S025

1
Out of stock

92093

SEAL

92093-S008

1

$5.10

In stock

92145

SPRING,REAR BRAKE ROD

92145-S046

1
Out of stock

92145A

1

$3.26

In stock

92153

BOLT

92153-S130

1
Out of stock

92172

SCREW,SPROCKET

92172-S111

1

$2.44

In stock

92200

WASHER

92200-S002

1
Out of stock

92200A

WASHER

92200-S003

1
Out of stock

92200B

WASHER

92200-S028

1
Out of stock

92210

NUT

92210-S004

1
Out of stock

92210A

NUT

92210-S051

1
Out of stock

92210B

NUT

92210-S055

1
Out of stock

92210C

NUT

92210-S056

1
Out of stock

92210D

NUT

92210-S094

1
Out of stock
