2005 Kawasaki KLX125 Front Hub Diagram

← All diagrams

Find the part on the Front Hub diagram for your 2005 Kawasaki KLX125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

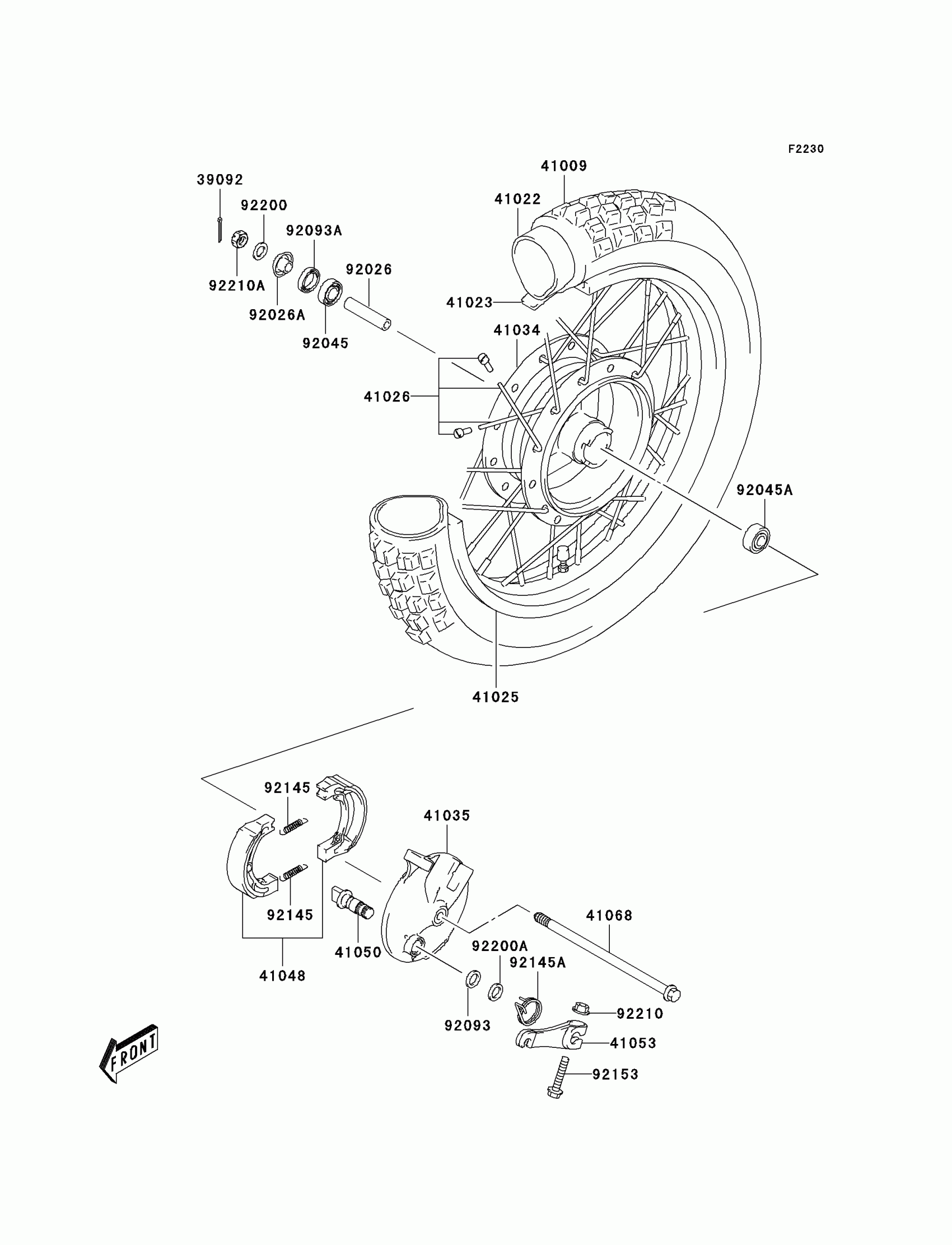

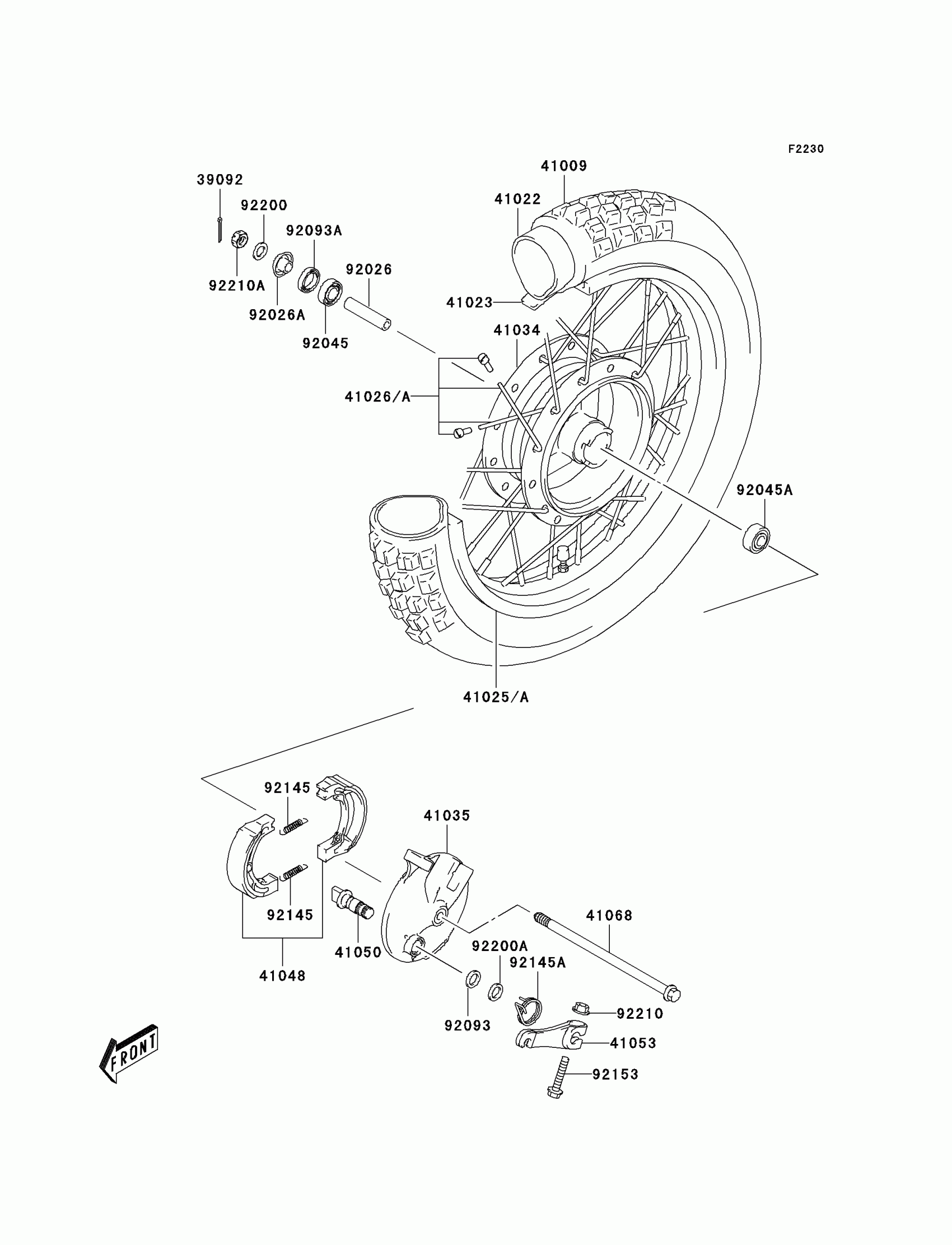

2005 Kawasaki KLX125 Front Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39092

PIN-HAIR,COTTER

39092-S005

1

$1.64

In stock

41009

TIRE,FR

41009-S005

1
Out of stock

41022

TUBE-TIRE

41022-S001

1

$34.68

In stock

41023

BAND-RIM

41023-S001

1

$8.25

In stock

41025A

1

$232.21

In stock

41026A

1

$39.66

In stock

41034

1

$131.10

In stock

41035

PANEL-ASSY-BRAKE

41035-S001

1

$134.90

In stock

41048

SHOE-BRAKE

41048-S002

1
Out of stock

41050

CAM-BRAKE

41050-S002

1
Out of stock

41053

LEVER-BRAKE CAM

41053-S002

1
Out of stock

41068

AXLE,FR

41068-S006

1

$36.69

In stock

92026

1

$8.27

In stock

92026A

1

$16.83

In stock

92045

1

$12.78

In stock

92045A

1

$16.34

In stock

92093

SEAL

92093-S008

1

$5.10

In stock

92093A

SEAL,FRONT HUB DUST

92093-S009

1

$4.27

In stock

92145

1

$3.26

In stock

92145A

1

$8.27

In stock

92153

BOLT

92153-S130

1
Out of stock

92200

WASHER

92200-S069

1
Out of stock

92200A

WASHER

92200-S071

1
Out of stock

92210

NUT

92210-S001

1
Out of stock

92210A

NUT

92210-S052

1
Out of stock
