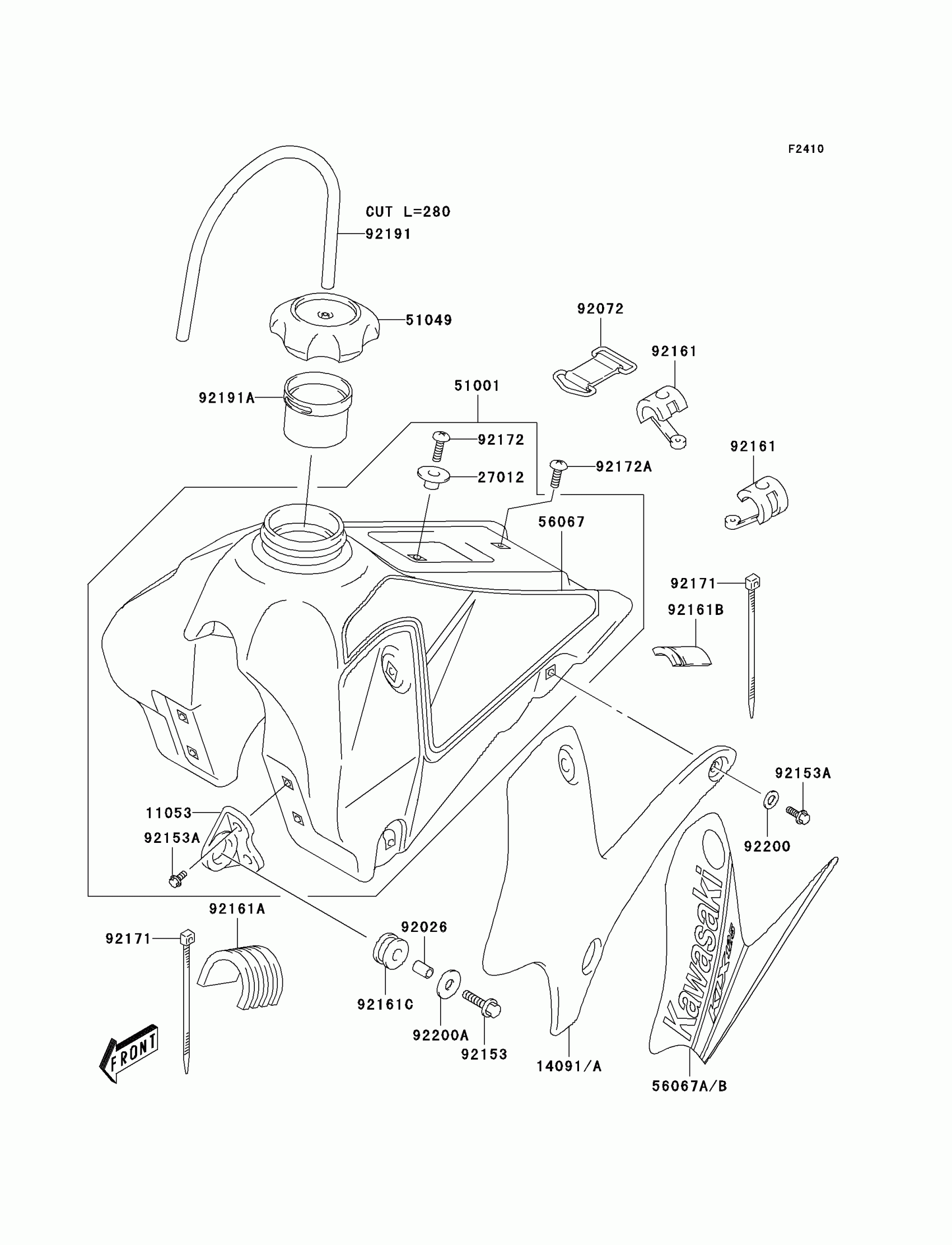

Kawasaki KLX125 Fuel Tank Diagram

#

Description
Price

11053

BRACKET,FUEL TANK,FR

11053-S001

$12.34

14091

COVER,FUEL TANK,RH,L.GREEN

14091-S062-908

Unavailable

14091A

COVER,FUEL TANK,LH,L.GREEN

14091-S063-908

Unavailable

27012

HOOK,SEAT FRONT

27012-S003

$8.97

51001

TANK-COMP-FUEL,BLACK

51001-S025-539

Unavailable

51049

CAP-TANK

51049-S004

$45.12

56067

PATTERN,SET,TANK,BLK/WHT/GRN

56067-S002-904

$226.76

56067A

PATTERN,RH,BLK/WHT/GRN

56067-S003-904

$115.30

56067B

PATTERN,LH,BLK/WHT/GRN

56067-S004-904

$132.30

92026

SPACER,FUEL TANK,FR

92026-S049

Unavailable

92072

BAND,FUEL TANK,RR

92072-S004

$14.47

92153

BOLT

92153-S003

Unavailable

92153A

BOLT

92153-S144

Unavailable

92161

DAMPER,FUEL TANK

92161-S062

$9.02

92161A

DAMPER,FUEL TANK

92161-S063

$23.22

92161B

DAMPER,FUEL TANK

92161-S064

$9.02

92161C

DAMPER,FUEL TANK

92161-S065

Unavailable

92171

CLAMP,FUEL TANK CUSHION

92171-S056

$4.34

92172

SCREW

92172-S019

$1.42

92172A

SCREW

92172-S055

$1.64

92191

TUBE,FUEL TANK BREATHER

92191-S028

$7.30

92191A

TUBE,FUEL TANK FILLER

92191-S029

$8.00

92200

WASHER

92200-S078

$1.87

92200A

WASHER

92200-S080

$2.27
