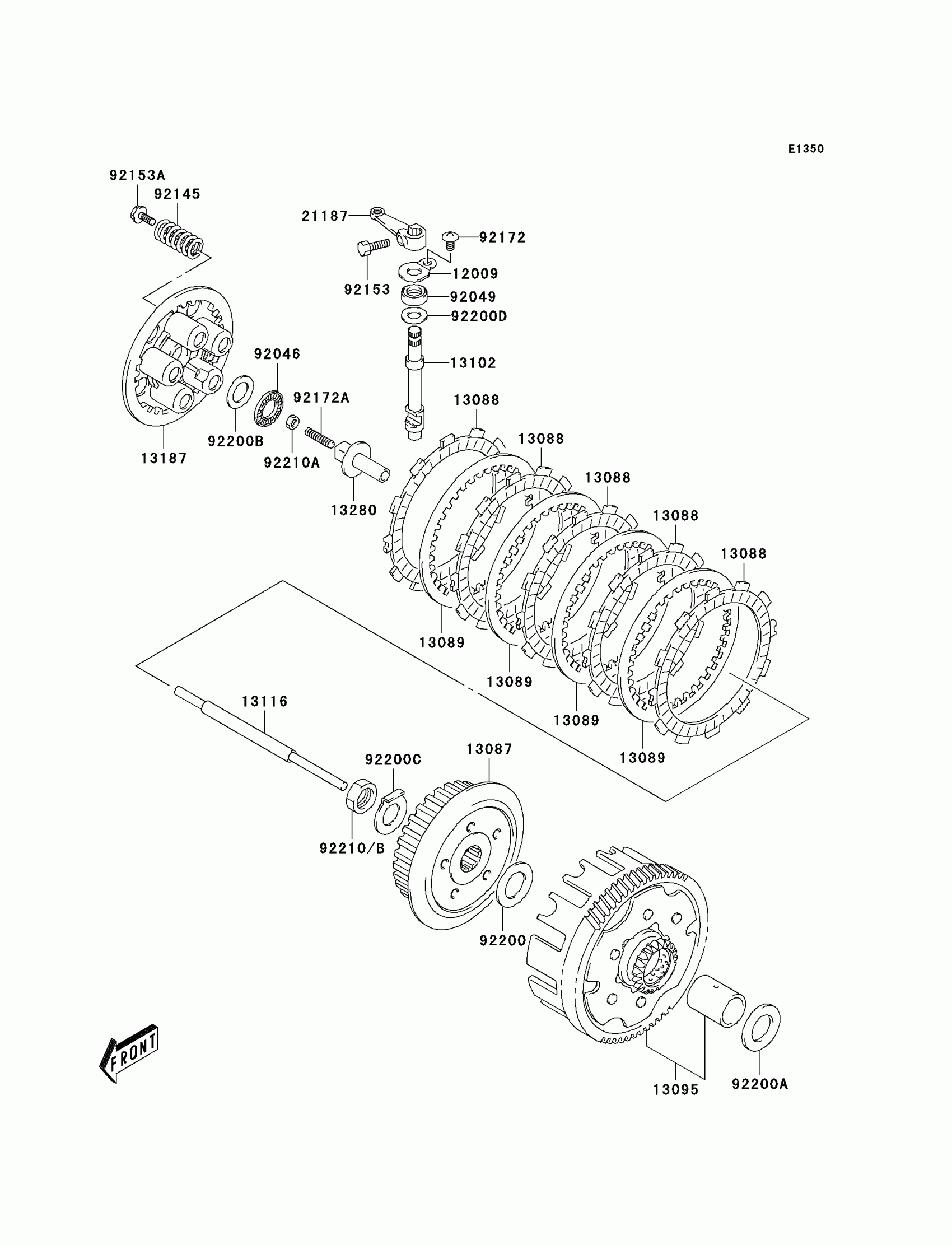

Kawasaki KLX125 Clutch Diagram

#

Description
Price

12009

RETAINER-VALVE SPRING

12009-S003

$4.66

13087

HUB-CLUTCH

13087-S001

$71.58

13088

PLATE-FRICTION

13088-S001

$17.63

13089

PLATE-CLUTCH

13089-S001

$7.73

13095

HOUSING-COMP-CLUTCH

13095-S003

$223.53

13102

RELEASE-COMP-CLUTCH

13102-S002

$42.86

13116

ROD-PUSH

13116-S002

$10.88

13187

PLATE-CLUTCH OPERATING

13187-S002

$21.03

13280

HOLDER,CLUTCH PUSH

13280-S012

$23.22

21187

ARM-ASSY,CLUTCH RELEASE

21187-S001

$23.83

92046

BEARING-NEEDLE,15X28X2

92046-S006

$8.47

92049

SEAL-OIL,10X20X6

92049-S018

$8.78

92145

SPRING

92145-S041

$4.17

92153

BOLT

92153-S126

Unavailable

92153A

BOLT,5X16

92153-S137

$2.27

92172

SCREW

92172-S092

Unavailable

92172A

SCREW

92172-S093

$3.76

92200

WASHER

92200-S025

$3.83

92200A

WASHER

92200-S055

$3.83

92200B

WASHER,15.5X28X1

92200-S056

$4.27

92200C

WASHER

92200-S060

$2.27

92200D

WASHER,10X20X1.0

92200-S061

$2.20

92210A

NUT,6X3.6

92210-S047

$2.17

92210B

NUT

92210-S157

$3.53
