2009 Kawasaki KLX®450R Shock Absorber Diagram

← All diagrams

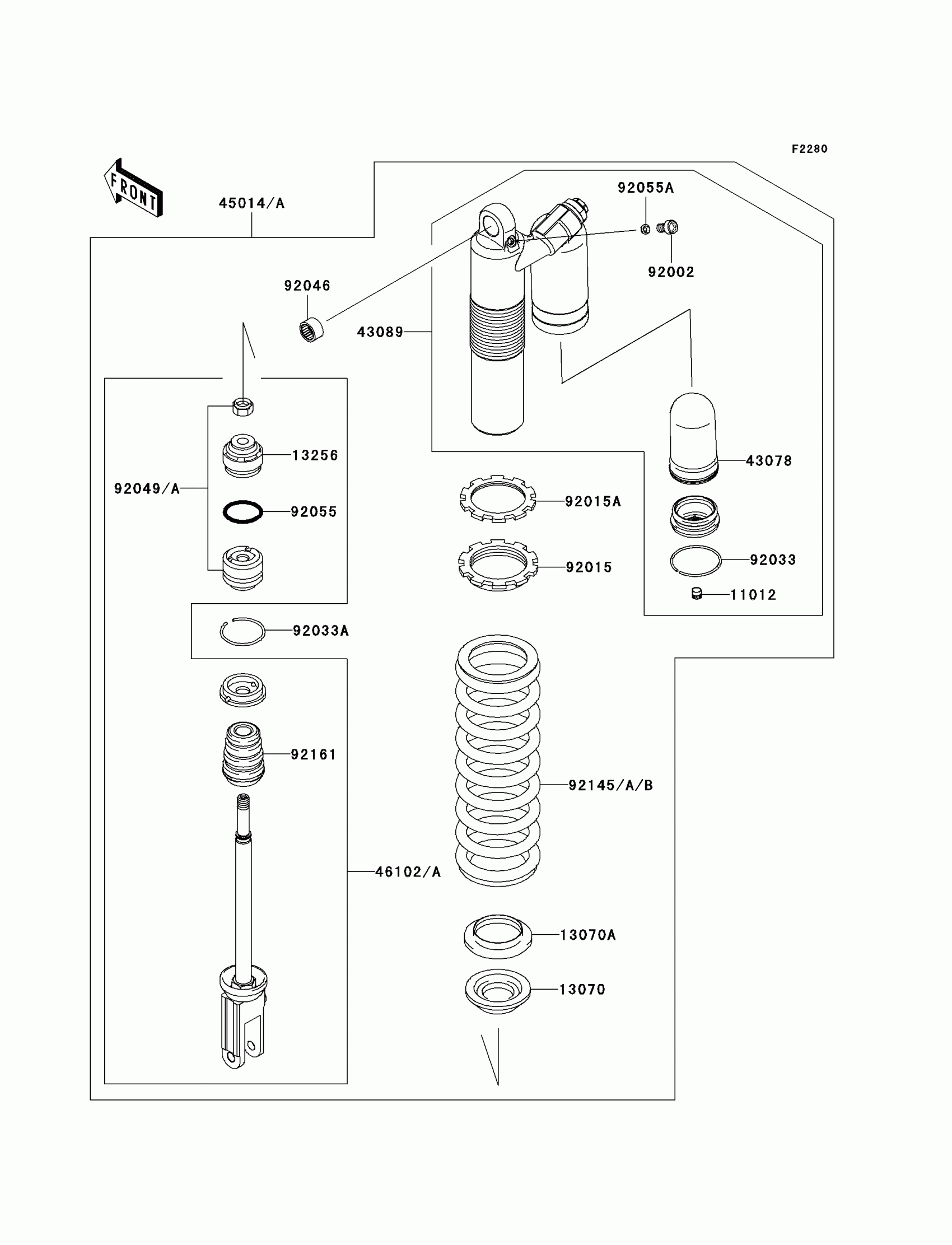

Find the part on the Shock Absorber diagram for your 2009 Kawasaki KLX®450R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki KLX®450R Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,AIR VALVE

11012-1552

1
Out of stock

13070

GUIDE,SPRING

13070-0029

1
Out of stock

13070A

GUIDE,SPRING

13070-1362

1
Out of stock

13256

PISTON,SHOCKABSORBER

13256-0002

1
Out of stock

43078

RESERVOIR,SHOCKABSORBER

43078-0031

1
Out of stock

43089

CYLINDER-SHOCKABSORBER,GOLD

43089-0010-829

1
Out of stock

45014

SHOCK,SPRING SIL+BODY GOLD

45014-0252-23D

1
Out of stock

46102A

ROD,SHOCKABSORBER

46102-0137

1
Out of stock

92002

BOLT,DRAIN

92002-1955

1
Out of stock

92015

NUT,SPRING ADJUST

92015-1703

1
Out of stock

92015A

NUT,SPRING ADJUST LOCK

92015-1704

1
Out of stock

92033

RING-SNAP

92033-0044

1
Out of stock

92033A

RING-SNAP

92033-1209

1
Out of stock

92046

BEARING-NEEDLE,7E-HVS16X22X12

92046-1301

1
Out of stock

92049A

SEAL-OIL

92049-0100

1
Out of stock

92055

RING-O,ROD

92055-1346

1
Out of stock

92055A

RING-O

92055-1383

1
Out of stock

92145

SPRING,SHOCK,K=50.0N/MM,SIL

92145-0015-8V

1
Out of stock

92145A

SPRING,SHOCK,K=52N/MM,I.SILVER

92145-0016-8V

1
Out of stock

92145B

SPRING,SHOCK,K=54N/MM,I.SILVER

92145-0244-8V

1
Out of stock

92161

DAMPER,SHOCKABSORBER

92161-1172

1
Out of stock
