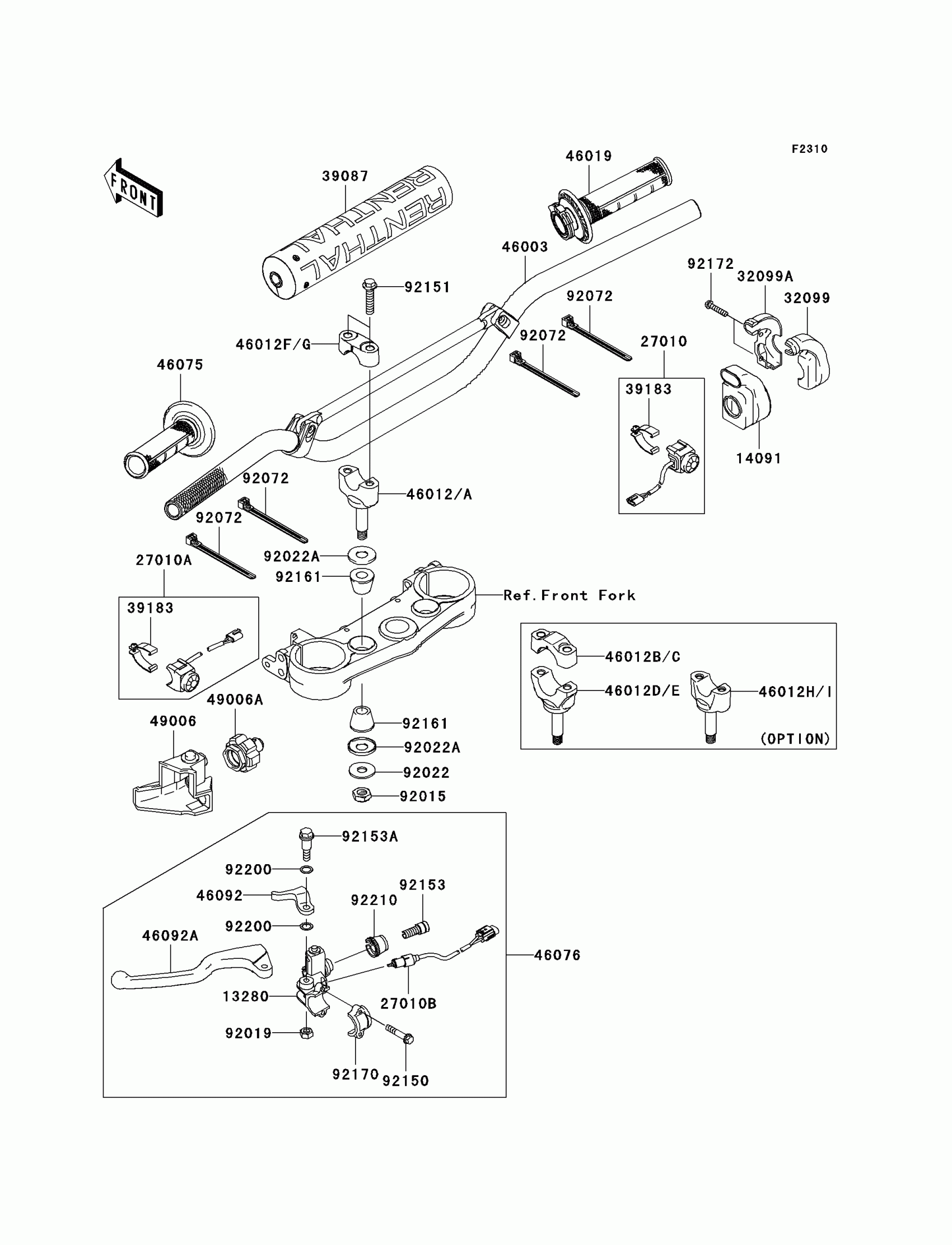

Kawasaki KLX®450R Handlebar Diagram

#

Description
Price

13280

HOLDER,CLUTCH LEVER

13280-0213

$60.82

14091

COVER,THROTTLE CASE

14091-0182

$7.67

27010

SWITCH,ENGINE START

27010-0069

$38.22

27010A

SWITCH,ENGINE STOP

27010-0070

$38.22

27010B

SWITCH,CLUTCH

27010-0071

$56.33

32099

CASE,THROTTLE,RR

32099-0002

$30.89

32099A

CASE,THROTTLE,FR

32099-0003

$30.89

39087

PAD-HANDLE

39087-0004

$66.54

39183

BAND-ASSY,SWITCH

39183-1059

$9.89

46003

HANDLE

46003-0077

$207.01

46012A

HOLDER-HANDLE,LWR,P.SILVER

46012-0013-458

$35.81

46012C

HOLDER-HANDLE,UPP,FAT BAR,SIL

46012-0020-458

$25.41

46012E

HOLDER-HANDLE,LWR,FAT BAR,SIL

46012-0021-458

$42.13

46012G

HOLDER-HANDLE,UPP,P.SILVER

46012-0023-458

$22.46

46012I

HOLDER-HANDLE,LWR,P.SILVER

46012-0048-458

$48.20

46019

GRIP-ASSY,THROTTLE

46019-0018

$52.65

46075

GRIP,LH

46075-0044

$13.86

46076

LEVER-ASSY-GRIP,CLUTCH&STARTER

46076-0041

$65.72

46092

LEVER-GRIP,STARTER

46092-0001

$5.47

46092A

LEVER-GRIP,CLUTCH

46092-0025

$15.71

49006

BOOT,CLUTCH LEVER

49006-0051

$14.25

49006A

BOOT,CLUTCH CABLE

49006-0060

$7.47

92015

NUT,LOCK,10MM

92015-1962

$4.59

92019

NUT,LOCK,6MM

92019-008

$3.12

92022

WASHER,10.2X28X2

92022-1088

$3.57

92022A

WASHER

92022-1737

$4.18

92072

BAND,L=100

92072-0055

$3.51

92150

BOLT

92150-1474

$3.81

92151

BOLT,FLANGED,8X35

92151-1537

$2.19

92153

BOLT,BOLT ADJUSTING

92153-0773

$11.44

92153A

BOLT,6MM

92153-1506

$8.46

92161

DAMPER,HANDLE HOLDER

92161-0113

$4.02

92170

CLAMP,LEVER HOLDER

92170-1226

$25.61

92172

SCREW,5X20

92172-0069

$2.30

92200

WASHER

92200-0300

$2.98

92210

NUT,BOLT WIRE ADJUSTING

92210-0167

$32.46
