2009 Kawasaki KLX®450R Rear HUB Diagram

← All diagrams

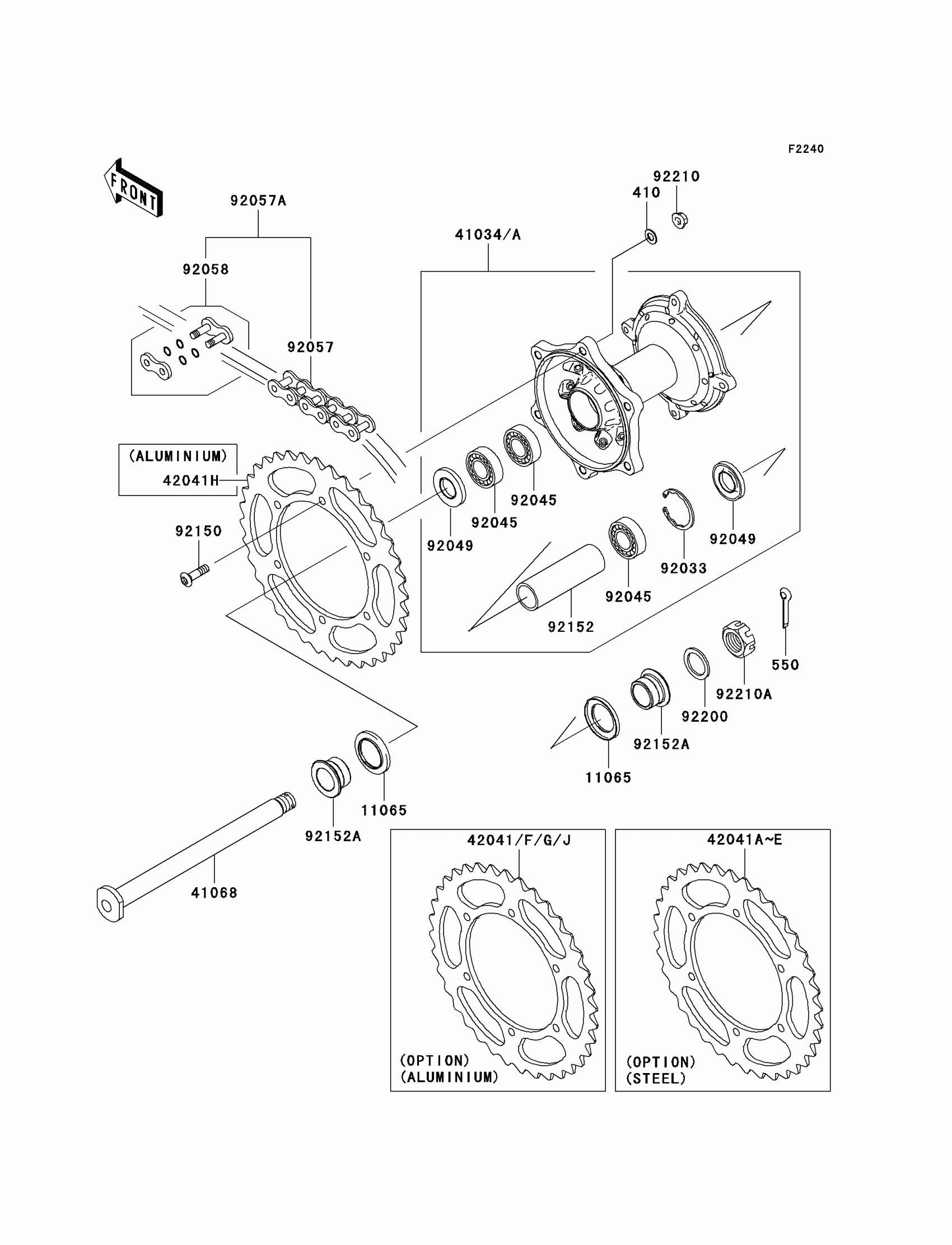

Find the part on the Rear HUB diagram for your 2009 Kawasaki KLX®450R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki KLX®450R Rear HUB Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

410

WASHER-PLAIN-SMALL,8MM

410AA0800

1
Out of stock

550

PIN-COTTER,3.0X35

550AA3035

1
Out of stock

11065

CAP,AXLE

11065-1253

1
Out of stock

41034A

1

$506.22

In stock

41068

AXLE,RR

41068-1466

1
Out of stock

42041

SPROCKET-HUB,52T,AL

42041-0001

1
Out of stock

42041A

SPROCKET-HUB,48T,STEEL

42041-1383

1
Out of stock

42041B

SPROCKET-HUB,49T,STEEL

42041-1384

1
Out of stock

42041C

SPROCKET-HUB,50T,STEEL

42041-1408

1
Out of stock

42041D

SPROCKET-HUB,51T,STEEL

42041-1428

1
Out of stock

42041E

SPROCKET-HUB,52T,STEEL

42041-1429

1
Out of stock

42041F

SPROCKET-HUB,48T,AL

42041-1448

1
Out of stock

42041G

SPROCKET-HUB,49T,AL

42041-1449

1
Out of stock

42041H

SPROCKET-HUB,50T,AL

42041-1450

1
Out of stock

42041J

SPROCKET-HUB,51T,AL

42041-1451

1
Out of stock

92033

RING-SNAP,42MM

92033-1041

1
Out of stock

92045

BEARING-BALL,69052RS

92045-1446

1
Out of stock

92049

SEAL-OIL

92049-1614

1
Out of stock

92057A

CHAIN,DRIVE,DID520MXVX114L

92057-0149

1
Out of stock

92058

JOINT-CHAIN,DRIVE

92058-0011

1
Out of stock

92150

BOLT,SOCKET,8X28

92150-1978

1
Out of stock

92152

COLLAR,REAR BRAKE DRUM,L=106.5

92152-1427

1
Out of stock

92152A

COLLAR,RR AXLE,L=17

92152-1473

1
Out of stock

92200

WASHER,22.5X35X2.3

92200-1623

1
Out of stock

92210

NUT,FLANGED,LOCK,8MM

92210-0159

1
Out of stock

92210A

NUT,CASTLE,22MM

92210-1411

1
Out of stock
