2009 Kawasaki KLX®450R Rear Suspension Diagram

← All diagrams

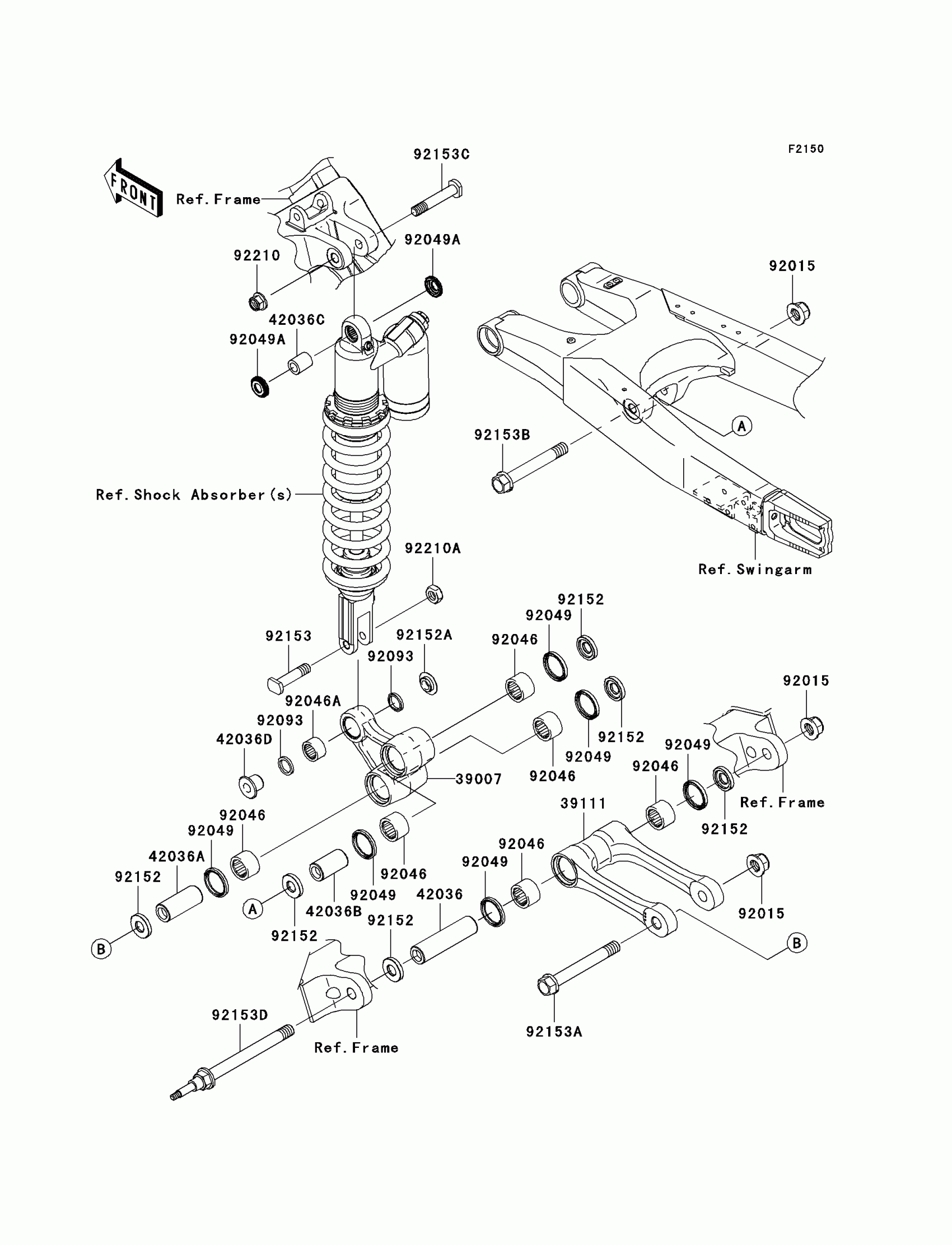

Find the part on the Rear Suspension diagram for your 2009 Kawasaki KLX®450R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki KLX®450R Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP,UNI TRAK

39007-0073

1

$258.18

In stock

39111

ROD-TIE,SUSPENSION

39111-0041

1

$124.28

In stock

42036

SLEEVE,ROD,L=78.4

42036-0020

1

$16.81

In stock

42036A

1

$12.95

In stock

42036B

1

$11.42

In stock

42036C

SLEEVE,10X16X19.3

42036-0030

1

$9.45

In stock

42036D

SLEEVE

42036-1351

1

$8.94

In stock

92015

1

$7.04

In stock

92046

BEARING-NEEDLE,F-2016

92046-1151

1
Out of stock

92046A

BEARING-NEEDLE,7E-HVS16X22X12

92046-1301

1
Out of stock

92049

SEAL-OIL,SDO26X32X4

92049-0063

1
Out of stock

92049A

SEAL-OIL

92049-0069

1
Out of stock

92093

SEAL

92093-1436

1

$5.77

In stock

92152

COLLAR

92152-0425

1

$7.99

In stock

92152A

COLLAR

92152-1139

1

$7.04

In stock

92153

BOLT,10X45

92153-0937

1
Out of stock

92153A

BOLT,FLANGED,12X95

92153-0938

1
Out of stock

92153B

BOLT,FLANGED,12X86

92153-0939

1
Out of stock

92153C

BOLT,10X58

92153-1386

1
Out of stock

92153D

BOLT,12MM,L=122

92153-1643

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1080

1
Out of stock

92210A

NUT,LOCK,10MM

92210-1184

1
Out of stock
