2009 Kawasaki KLX®450R Reflectors Diagram

← All diagrams

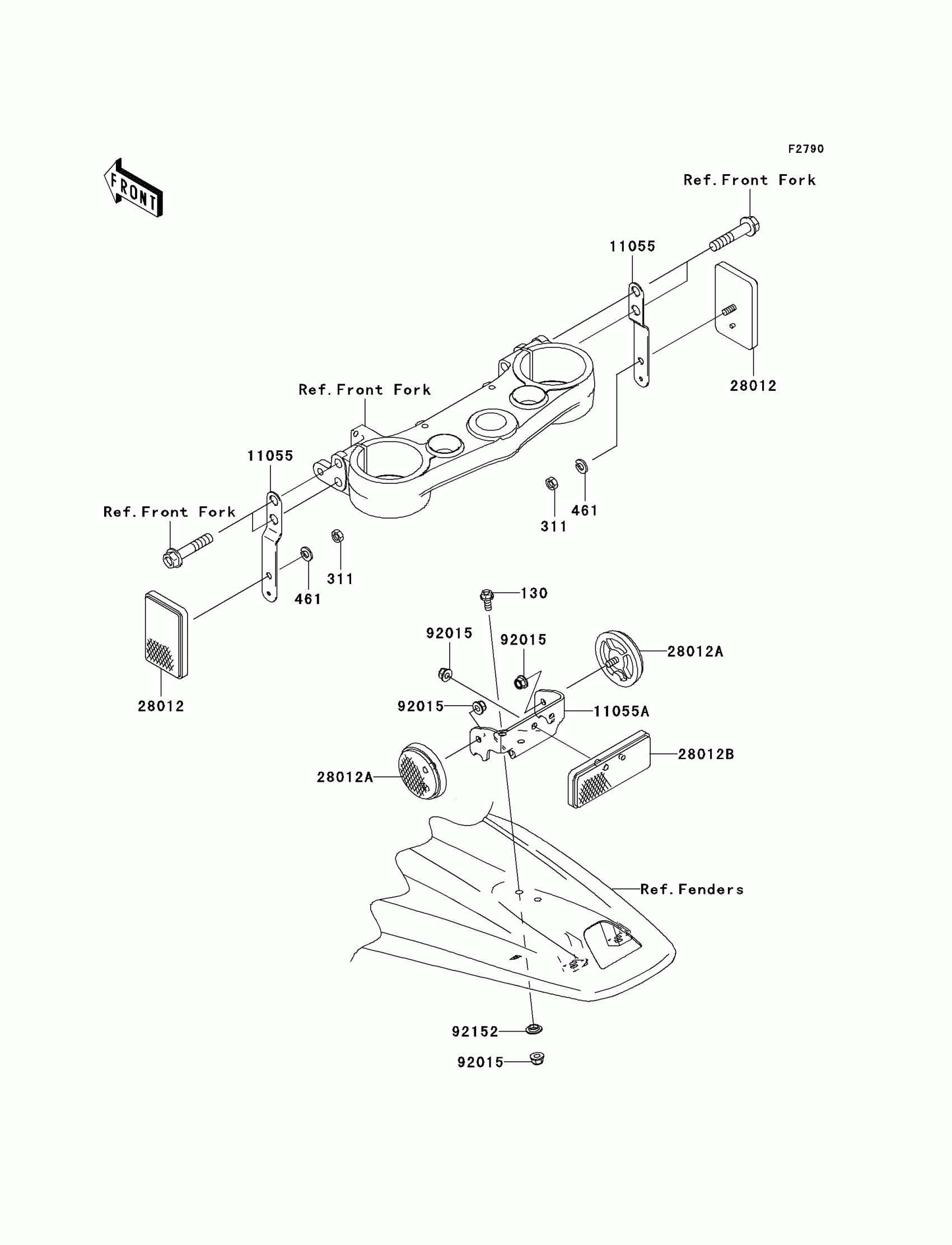

Find the part on the Reflectors diagram for your 2009 Kawasaki KLX®450R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki KLX®450R Reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X12

130BA0512

1

$1.80

In stock

311

NUT-HEX,5MM

311BA0500

1
Out of stock

461

WASHER-SPRING,5MM

461DA0500

1
Out of stock

11055

BRACKET,REFLECTOR,FR

11055-0080

1
Out of stock

11055A

BRACKET,REFLECTOR,RR

11055-0226

1
Out of stock

28012

REFLECTOR-REFLEX

28012-1003

1
Out of stock

28012A

REFLECTOR-REFLEX

28012-1067

1
Out of stock

28012B

REFLECTOR-REFLEX

28012-1077

1
Out of stock

92015

NUT,LOCK,FLANGED,5MM

92015-1752

1
Out of stock

92152

COLLAR

92152-0250

1
Out of stock
