2009 Kawasaki KLX®450R Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 2009 Kawasaki KLX®450R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

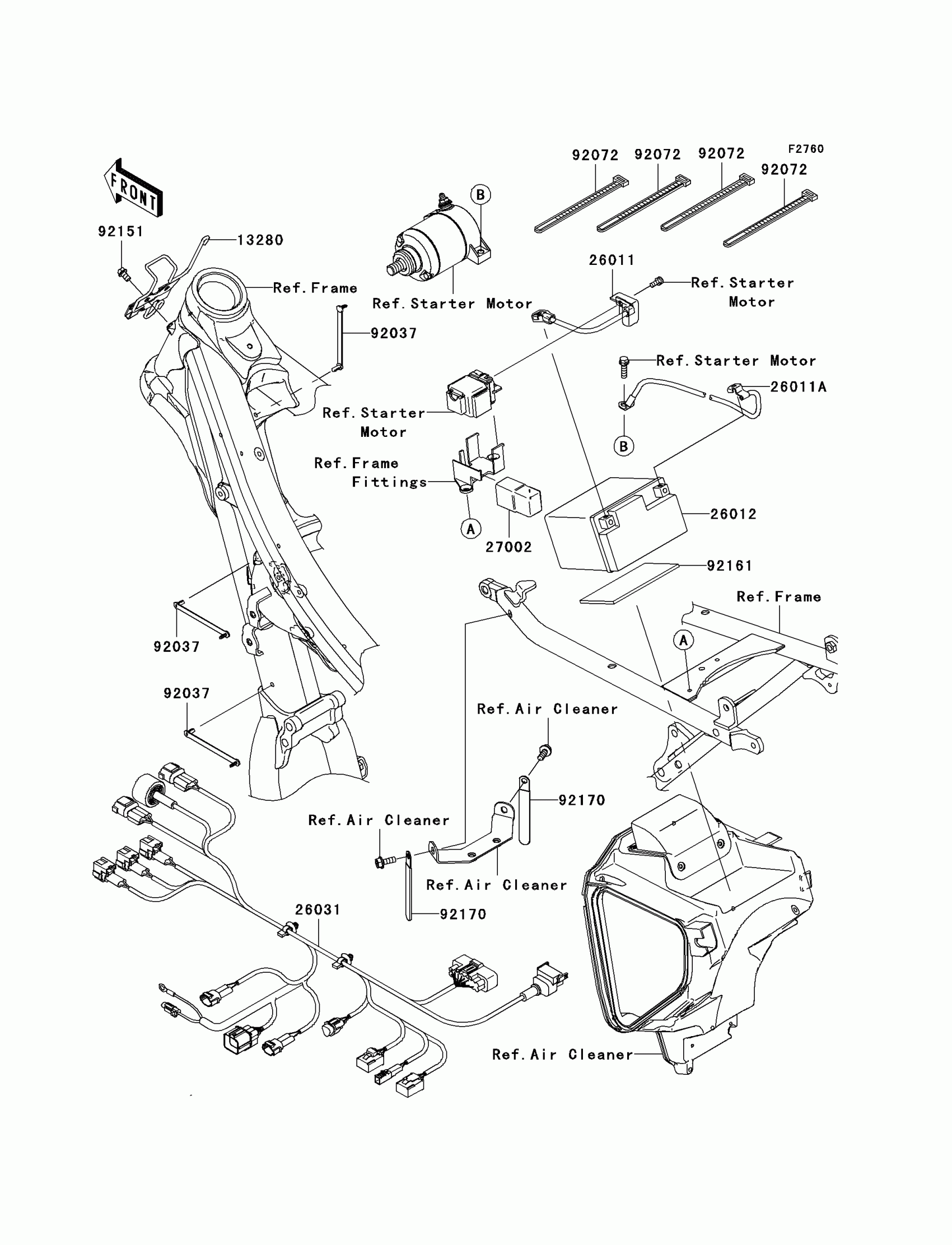

2009 Kawasaki KLX®450R Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13280

HOLDER,CONNECTOR&CABLE

13280-0214

1
Out of stock

26011

WIRE-LEAD,BATTERY(+)

26011-0131

1
Out of stock

26011A

WIRE-LEAD,BATTERY(-)

26011-0132

1
Out of stock

26012

BATTERY,YTZ7S(F),12V 6AH

26012-0098

1
Out of stock

26031

HARNESS,MAIN

26031-0601

1
Out of stock

27002

RELAY-ASSY

27002-1086

1
Out of stock

92037

CLAMP,SPEED,L=80.5

92037-1903

1
Out of stock

92072

BAND,L=140

92072-1293

1
Out of stock

92151

BOLT,FLANGED,6X10

92151-1233

1
Out of stock

92161

DAMPER

92161-0456

1
Out of stock

92170

CLAMP

92170-1925

1

$1.98

In stock
