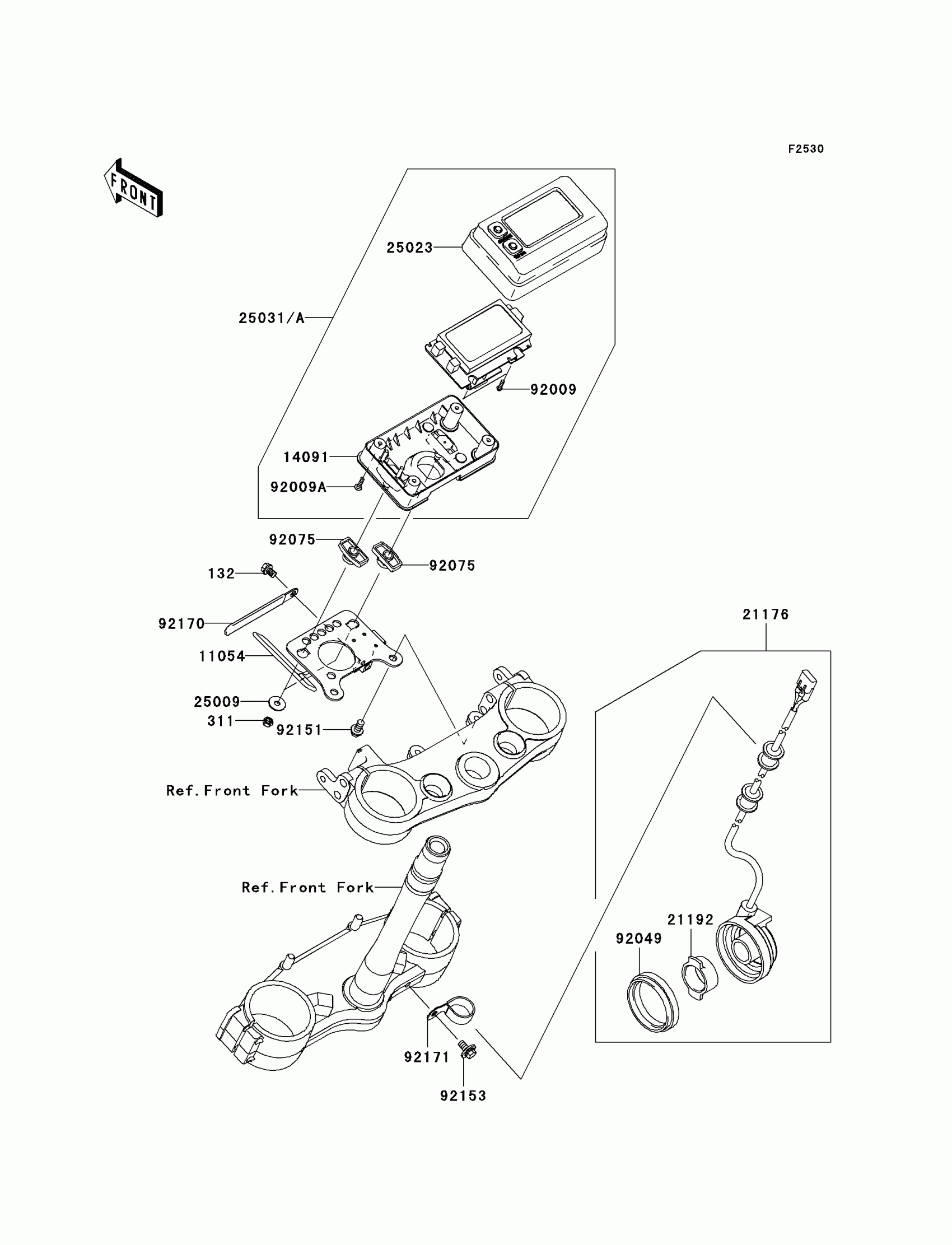

Kawasaki KLX®450R Meter(s) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X8

132BB0608

$3.24

311

NUT-HEX,5MM

311AB0500

$0.46

11054

BRACKET

11054-1090

$14.39

14091

COVER,METER,LWR

14091-0806

$104.78

21176

SENSOR,SPEED

21176-0080

$419.65

21192

MAGNET,SPEED SENSOR

21192-0003

$36.69

25009

WASHER,5.2X16X1.2

25009-004

$2.88

25023

COVER-METER CASE,UPP

25023-0033

$104.78

92009

SCREW,TAPPING,3X12

92009-1028

$3.20

92009A

SCREW,TAPPING,3X14

92009-1592

$3.25

92049

SEAL-OIL

92049-0102

$20.63

92075

DAMPER,METER BRACKET

92075-1581

$4.58

92151

BOLT,6X12

92151-1133

Unavailable

92153

BOLT,6X12

92153-0503

$1.98

92170

CLAMP

92170-1925

$1.98

92171

CLAMP

92171-1279

$8.93

25031

METER-ASSY,LCD,MPH

25031-0151

$388.31

25031A

METER-ASSY,LCD,KPH

25031-0180

$347.35
