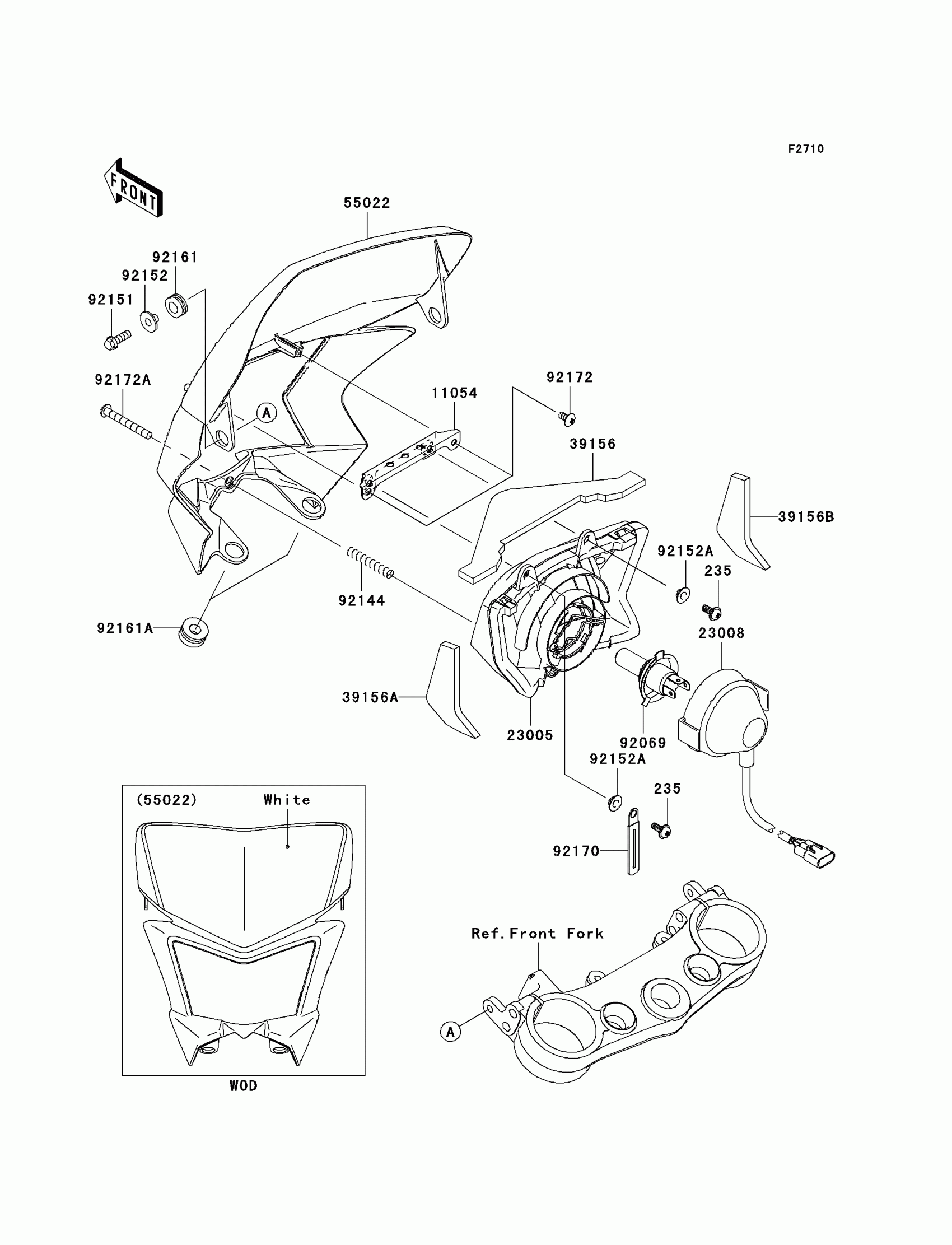

Kawasaki KLX®450R Headlight(s) Diagram

Description

Price

235

SCREW-PAN-WP-CROS,5X12

235AA0512

$3.97

11054

BRACKET,HEAD LAMP

11054-1069

$11.42

23005

BODY-COMP-HEAD LAMP

23005-0020

Unavailable

23008

SOCKET-ASSY,HEAD LAMP

23008-0064

$47.25

39156

PAD,HEAD LAMP,TOP

39156-0267

$25.24

39156A

PAD,HEAD LAMP,LH

39156-0268

$7.81

39156B

PAD,HEAD LAMP,RH

39156-0269

$7.81

55022

COVER-HEAD LAMP,B.WHITE

55022-0038-266

$56.33

92069

BULB,12V 35/35W

92069-1120

$35.63

92144

SPRING

92144-2266

$3.52

92151

BOLT,6X18

92151-1311

$1.57

92152

COLLAR

92152-0295

$4.27

92152A

COLLAR

92152-0573

$4.14

92161

DAMPER

92161-0266

$1.32

92161A

DAMPER

92161-0537

$4.27

92170

CLAMP

92170-1514

$3.29

92172

SCREW,TAPPING,5X10

92172-0262

$1.04

92172A

SCREW,TAPPING,4X40

92172-0311

$3.51
