2026 Kawasaki KLX®300SM Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 2026 Kawasaki KLX®300SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

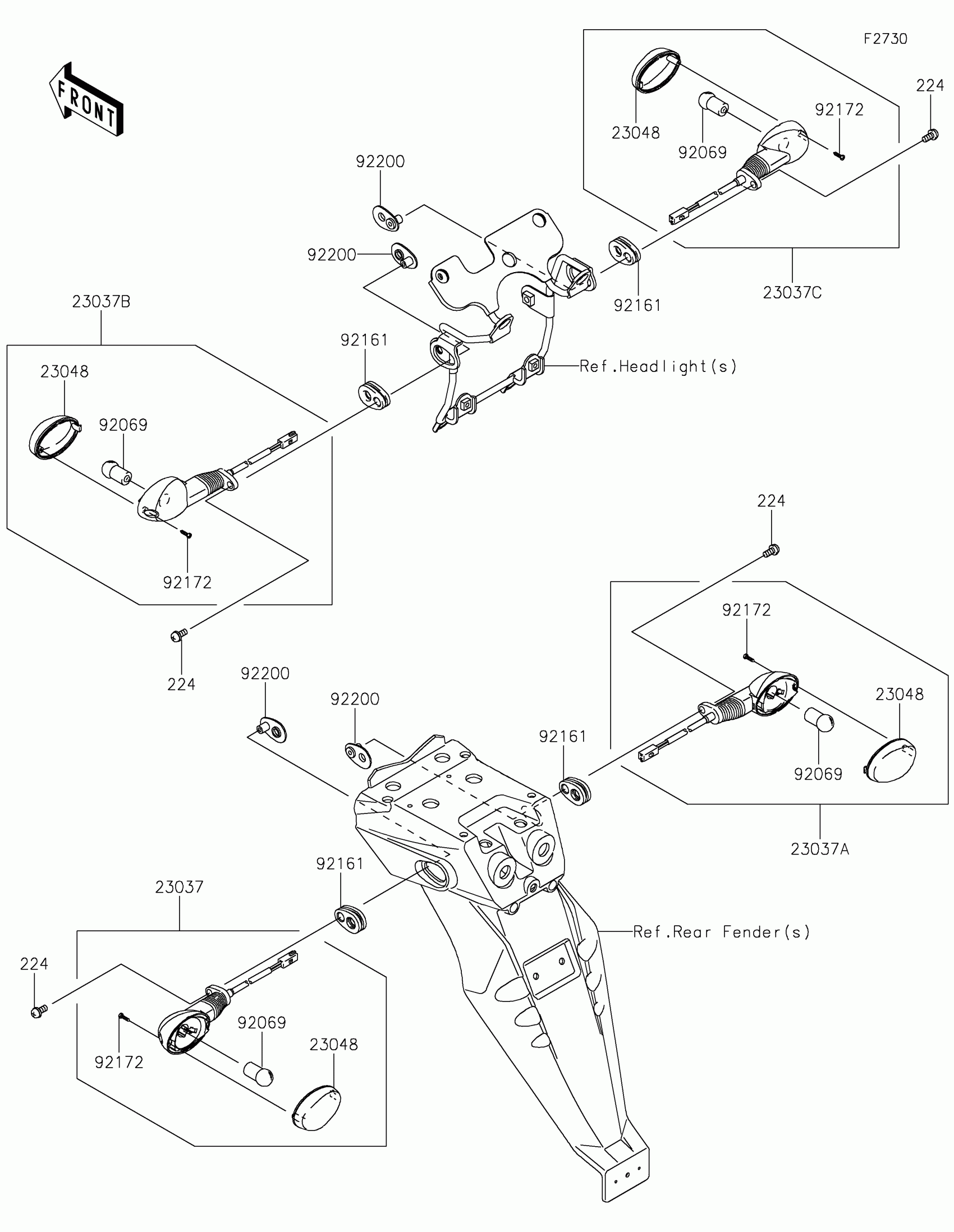

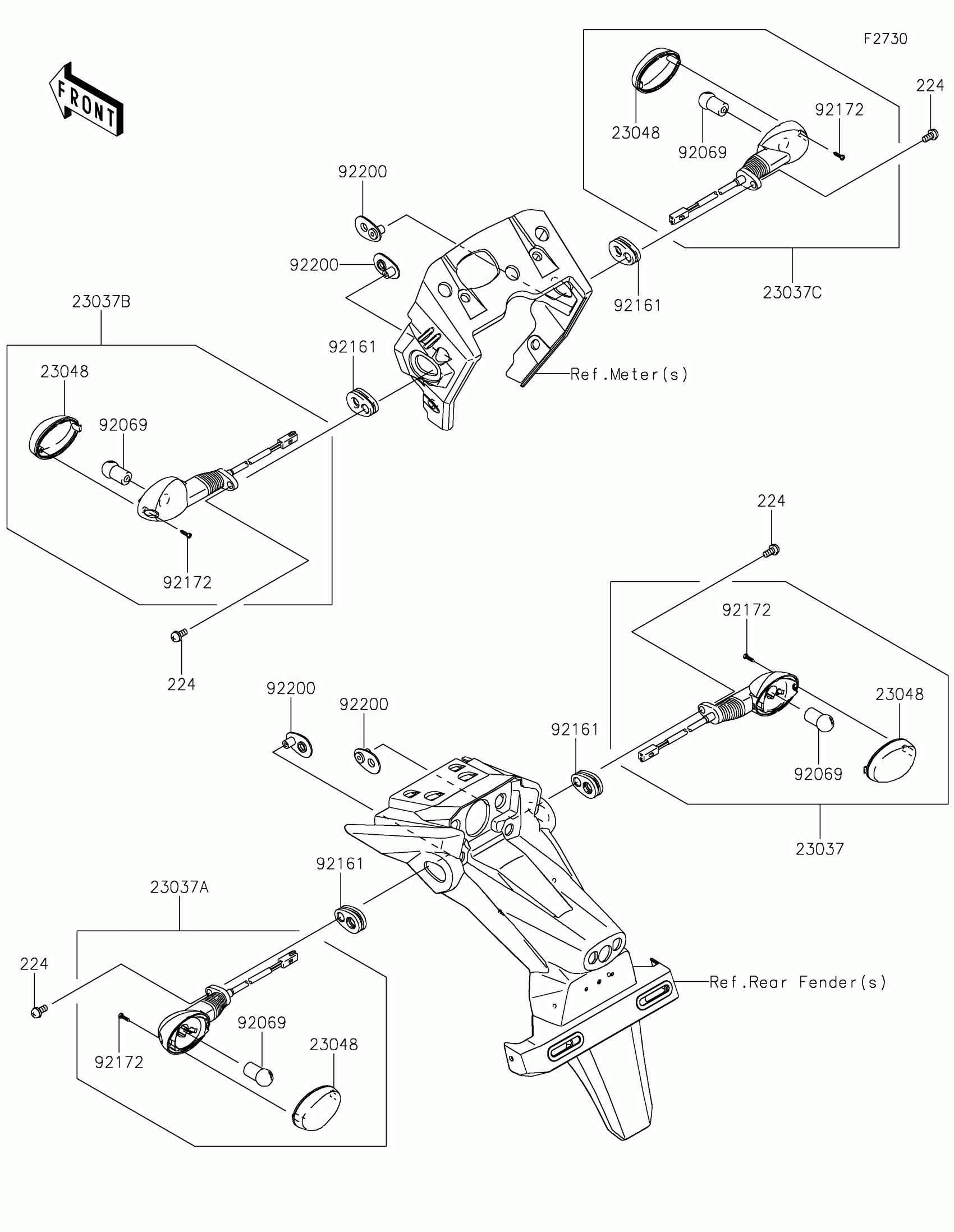

2026 Kawasaki KLX®300SM Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23037

LAMP-ASSY-SIGNAL,RR,RH

23037-0416

1
Out of stock

23037A

LAMP-ASSY-SIGNAL,RR,LH

23037-0417

1
Out of stock

23037B

LAMP-ASSY-SIGNAL,FR,LH

23037-0456

1
Out of stock

23037C

LAMP-ASSY-SIGNAL,FR,RH

23037-0457

1
Out of stock

23048

LENS-SIGNAL LAMP

23048-0035

1
Out of stock

92069

BULB,12V 10W

92069-0106

1
Out of stock

92161

DAMPER,SIGNAL LAMP

92161-0828

1
Out of stock

92172

SCREW,TAPPING,2.9X13

92172-0343

1
Out of stock

92200

WASHER,SIGNAL LAMP

92200-0370

1
Out of stock

224

SCREW-PAN-WP-CROS,6X14

224AB0614

1
Out of stock
