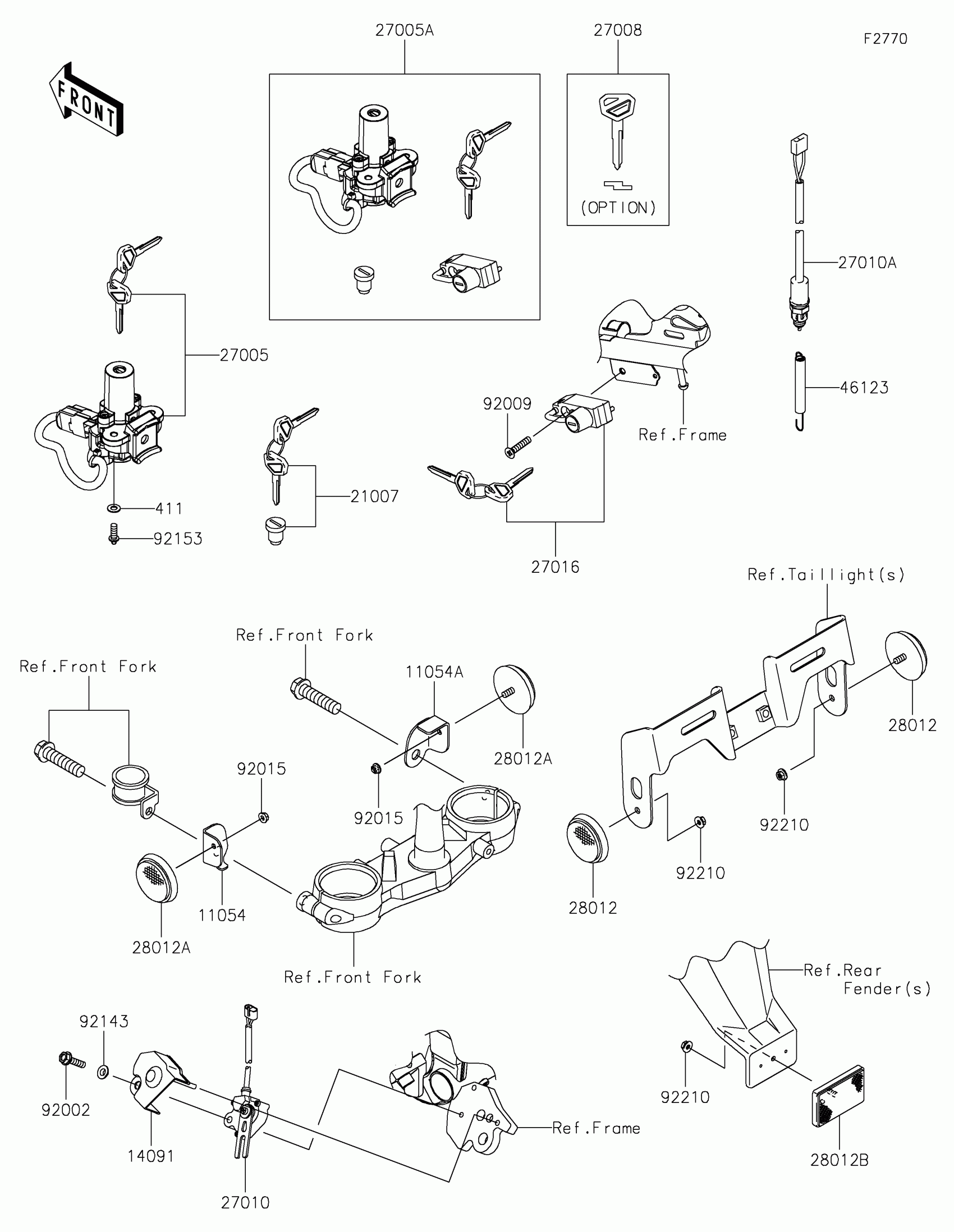

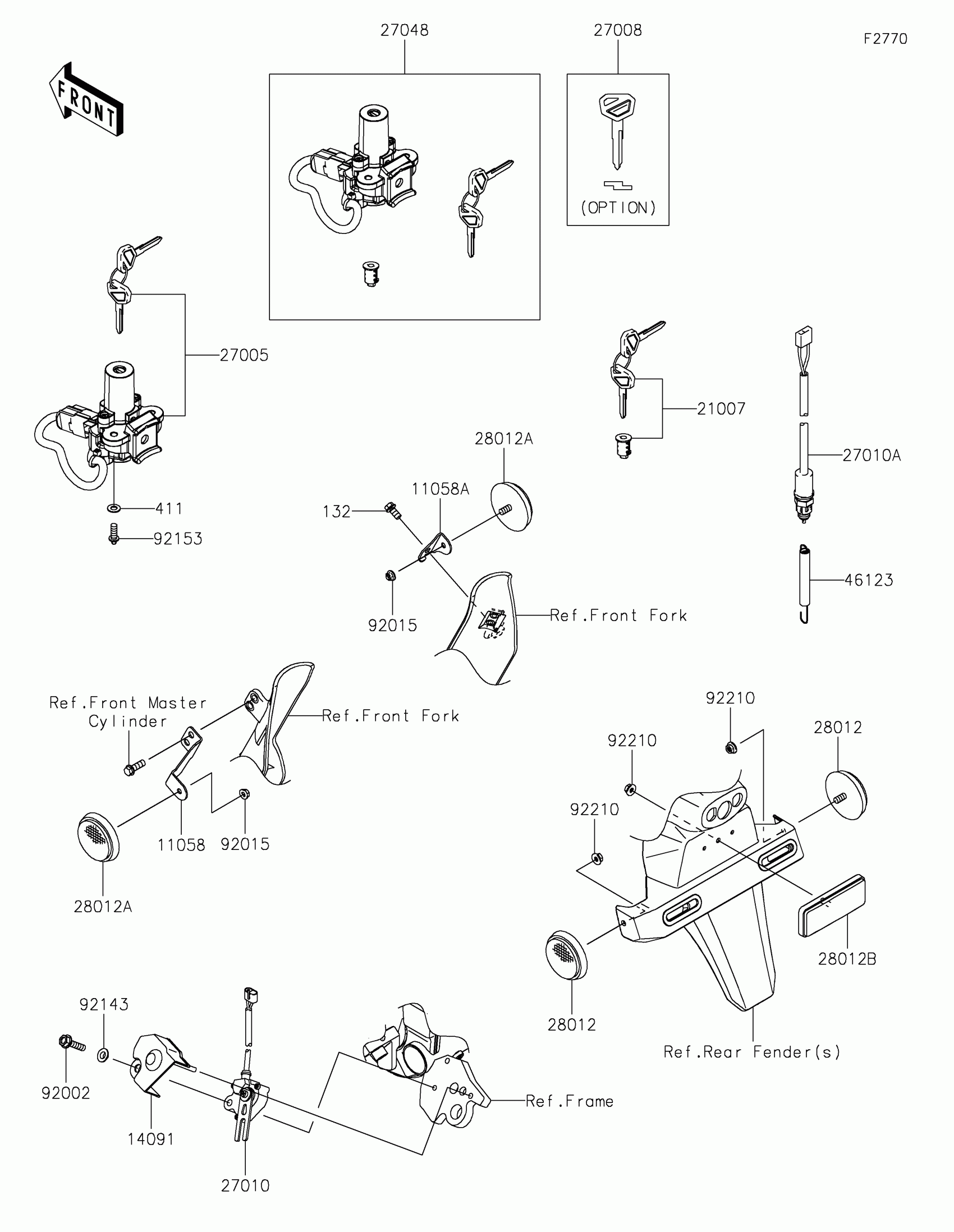

Kawasaki KLX®300SM Ignition Switch Diagram

#

Description
Price

11054

BRACKET,REFLECTOR,FR,LH

11054-0367

$11.42

11054A

BRACKET,REFLECTOR,FR,RH

11054-0368

$11.42

14091

COVER,SIDE STAND SWITCH

14091-1553

$7.47

21007

ROTOR,LOCK,TANK CAP

21007-5040

$56.30

27005

SWITCH-ASSY-IGNITION

27005-0697

$151.87

27005A

SWITCH-ASSY-IGNITION

27005-5185

$265.24

27008

KEY-LOCK,BLANK

27008-1170

$13.56

27010

SWITCH,SIDE STAND

27010-0097

$119.84

27010A

SWITCH,REAR BRAKE

27010-1489

$41.44

27016

LOCK-ASSY,HELMET

27016-5207

$74.62

28012

REFLECTOR-REFLEX

28012-0002

$19.59

28012A

REFLECTOR-REFLEX,FR

28012-016

$18.77

28012B

REFLECTOR-REFLEX

28012-1088

$18.15

411

WASHER-PLAIN,6MM

411AA0600

$2.06

46123

SPRING-COMP,REAR BRAKE SWITCH

46123-0008

$5.12

92002

BOLT,FLANGED,6X25

92002-1582

$4.17

92009

SCREW,6X30

92009-1753

$3.68

92015

NUT,FLANGED,5MM

92015-1259

$2.99

92143

COLLAR

92143-1331

$3.01

92153

BOLT,TORX,6X16

92153-1426

$3.51

92210

NUT,FLANGED,5MM

92210-0007

$1.90
