Partiron

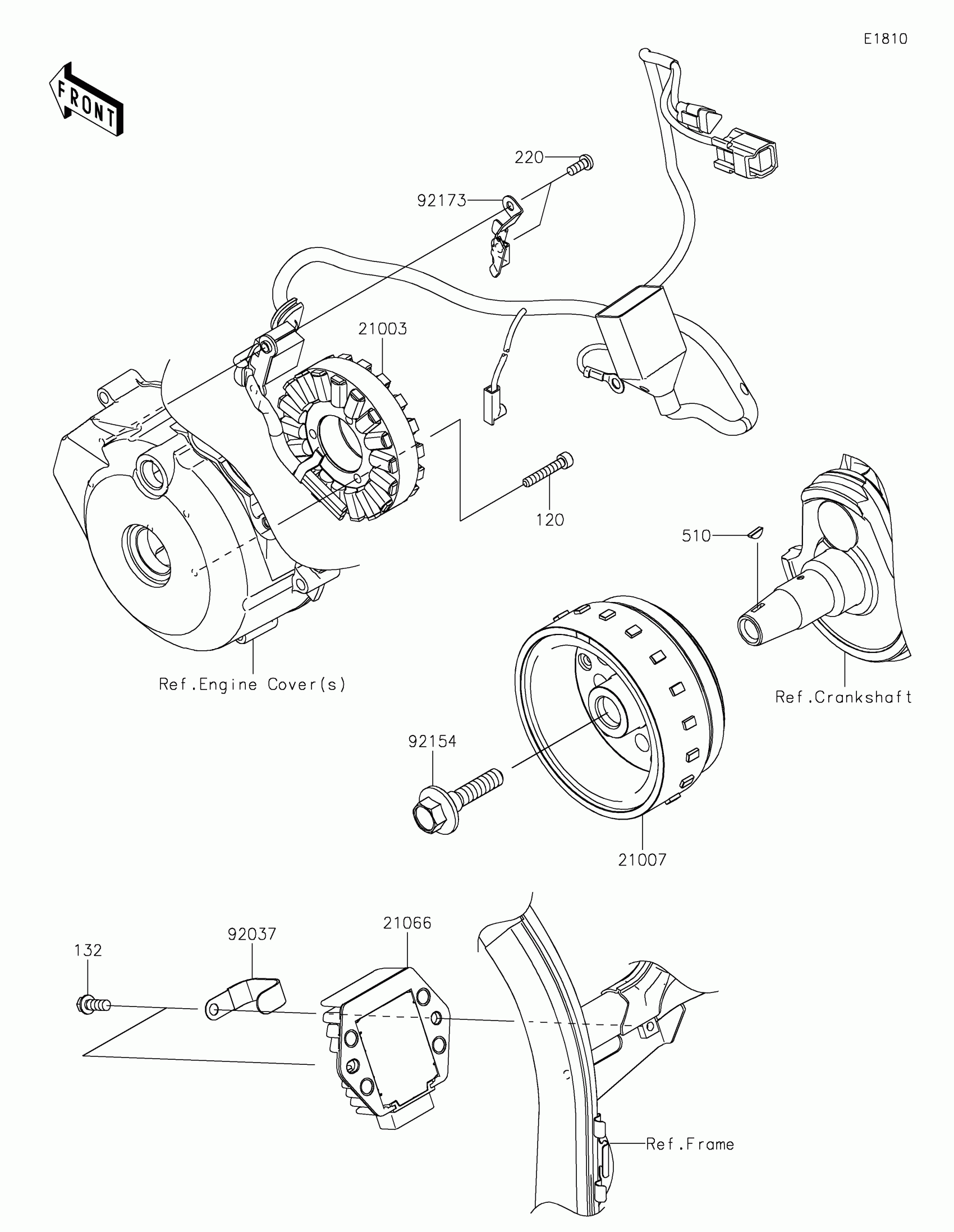

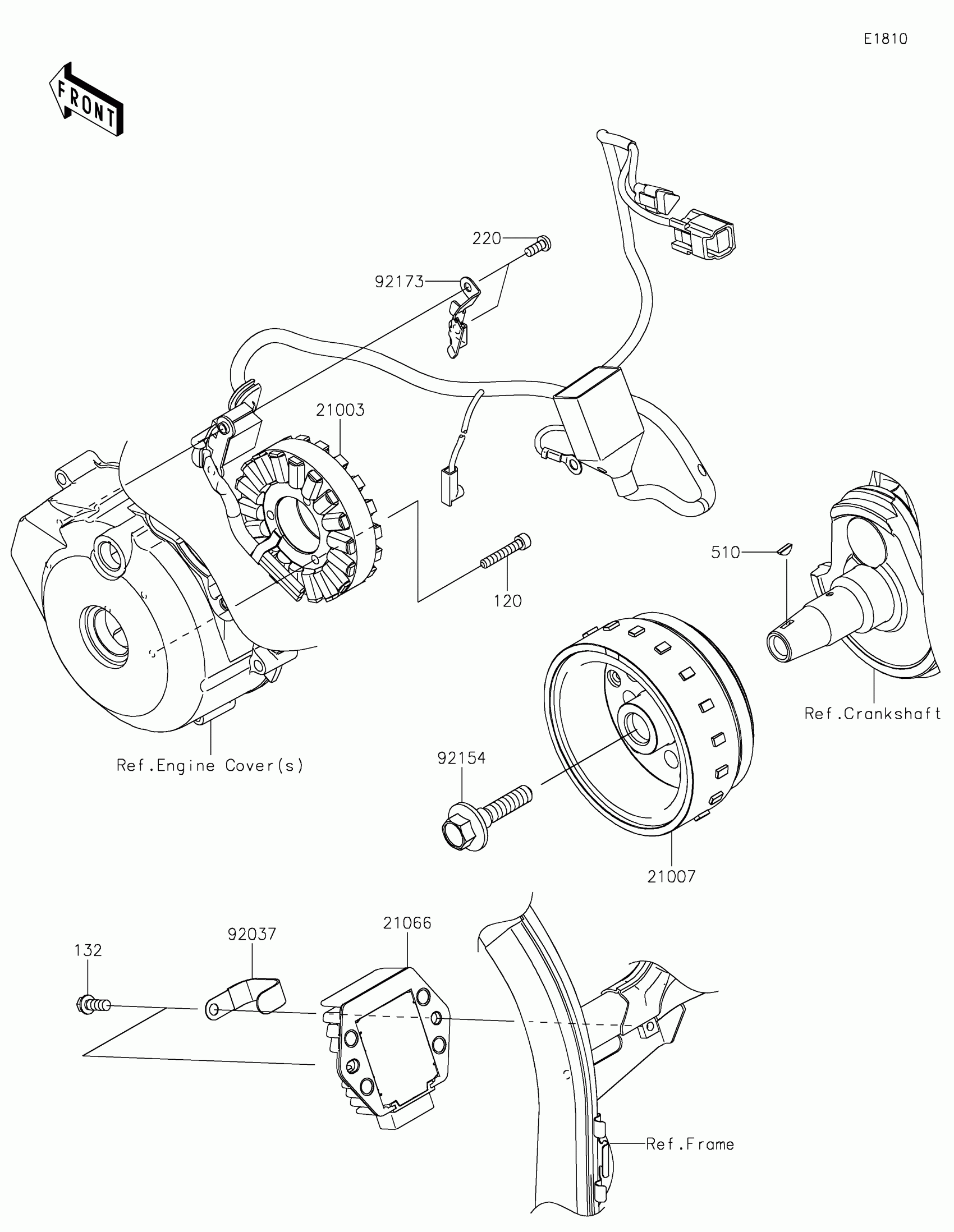

Kawasaki KLX®300SM Generator Diagram

#

Description
Price

120

BOLT-SOCKET,5X30

120CA0530

$4.85

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.16

21003

STATOR

21003-0207

$584.44

21007

ROTOR

21007-0614

$652.99

21066

REGULATOR-VOLTAGE

21066-0781

$236.87

220

SCREW-PAN-CROS,5X12

220AA0512

$0.47

510

KEY-WOODRUFF

510A3100

$1.87

92037

CLAMP

92037-1993

$4.18

92154

BOLT

92154-1309

$5.66

92173

CLAMP

92173-1150

$4.61
