2026 Kawasaki KLX®300SM Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 2026 Kawasaki KLX®300SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

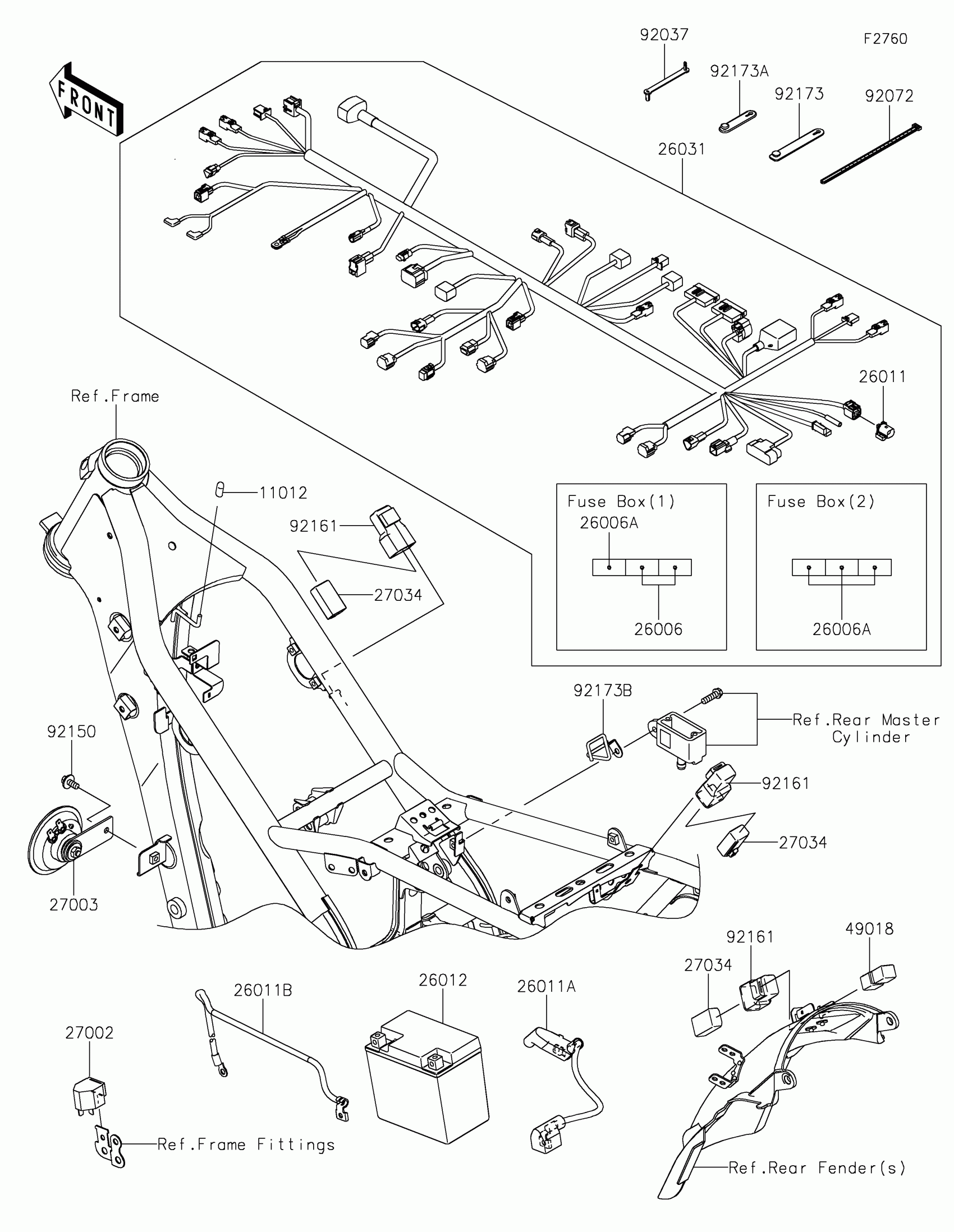

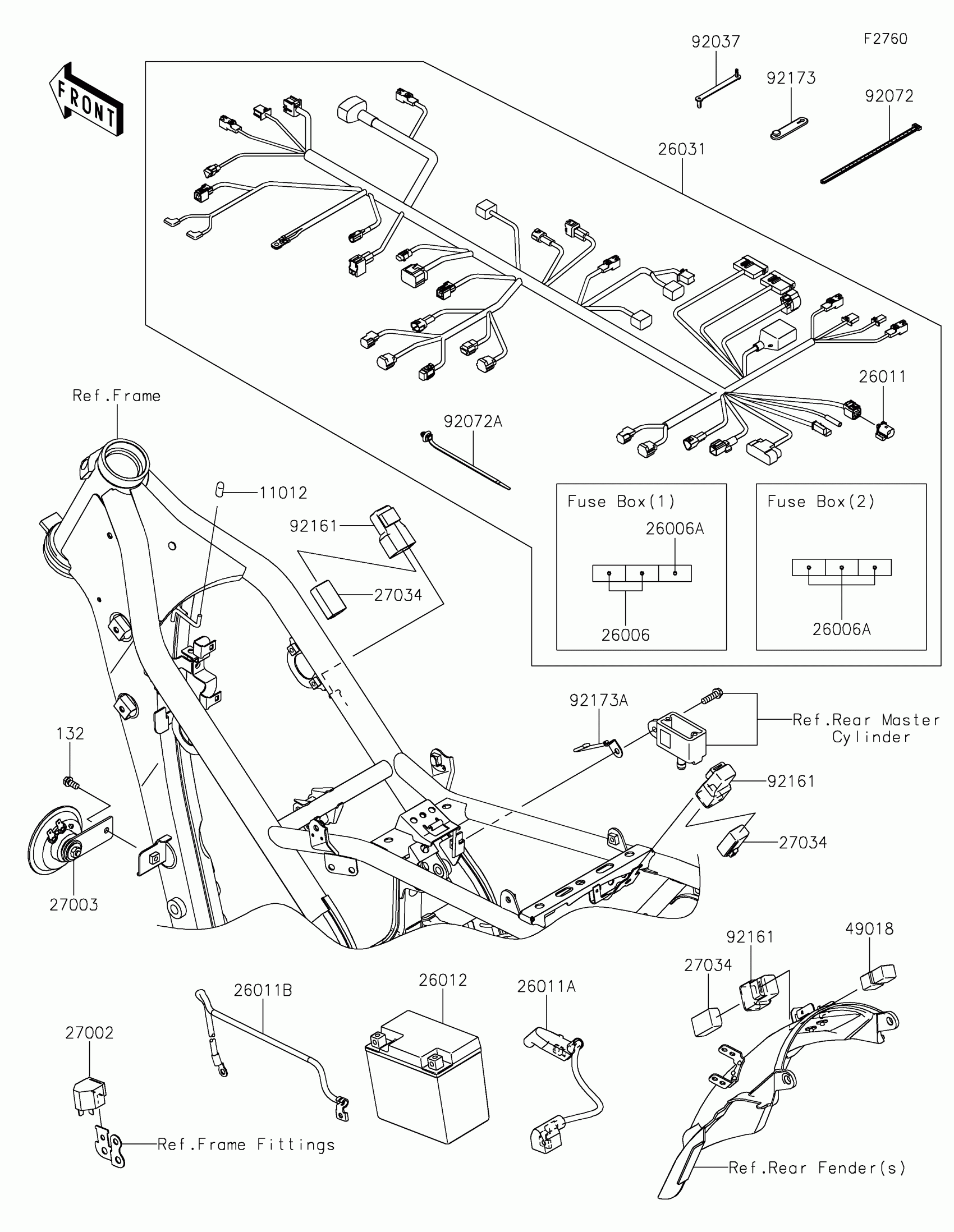

2026 Kawasaki KLX®300SM Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,BUNGEE CORD HOOK

11012-1589

1
Out of stock

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

1
Out of stock

26006A

FUSE,MINI BLADE,10A,RED

26006-1078

1
Out of stock

26011

WIRE-LEAD,DIAG CONNECTOR

26011-1901

1
Out of stock

26011A

WIRE-LEAD,BATTERY(+)

26011-1926

1
Out of stock

26011B

WIRE-LEAD,BATTERY(-)

26011-2467

1
Out of stock

26012

BATTERY,FTZ7S,12V 6AH

26012-0907

1
Out of stock

26031

HARNESS,MAIN

26031-4043

1
Out of stock

27002

RELAY-ASSY,TURN SIGNAL

27002-0031

1
Out of stock

27003

HORN

27003-0162

1
Out of stock

27034

RELAY

27034-0012

1
Out of stock

49018

DIODE

49018-0005

1
Out of stock

92037

CLAMP,SPEED,L=58

92037-1163

1
Out of stock

92072

BAND,L=250

92072-0937

1
Out of stock

92072A

BAND,OS170-FT7(BLACK)

92072-1414

—
Out of stock

92161

DAMPER

92161-2290

1
Out of stock

92173

CLAMP

92173-2198

1
Out of stock

92173A

CLAMP,HARNESS

92173-2734

1
Out of stock

132

1

$1.12

In stock
