Description

Price

221

SCREW-CSK-CROS,6X10

221AA0610

$2.79

550

PIN-COTTER,2.0X15

550AA2015

$0.90

13070

GUIDE,HOSE

13070-1144

$6.13

13159

CONNECTOR

13159-1056

$10.71

43010

ROD-ASSY-BRAKE

43010-1068

$45.28

43016

CYLINDER-MASTER

43016-1149

$195.30

43020

PISTON-COMP-BRAKE

43020-1094

$58.51

43026

CAP-BRAKE

43026-1075

$12.97

43028

DIAPHRAGM

43028-1067

$14.12

43078

RESERVOIR

43078-1189

$26.83

43095

HOSE-BRAKE,RR

43095-0164

$97.32

43095A

HOSE-BRAKE,RR MASTER CYLINDER

43095-0451

$16.05

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

55020

GUARD,RR BRAKE RESERVOIR HOSE

55020-1489

$15.00

92009

SCREW,4X40

92009-1596

$3.01

92022

WASHER,8.5X13X1

92022-1028

$2.99

92022A

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$3.78

92037

CLAMP

92037-1710

$7.54

92043

PIN

92043-0004

$8.49

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92153

BOLT,6X20

92153-0502

$1.98

92154

BOLT,OIL,L=23

92154-0226

$4.46

92172

SCREW,6X14

92172-0401

$1.81

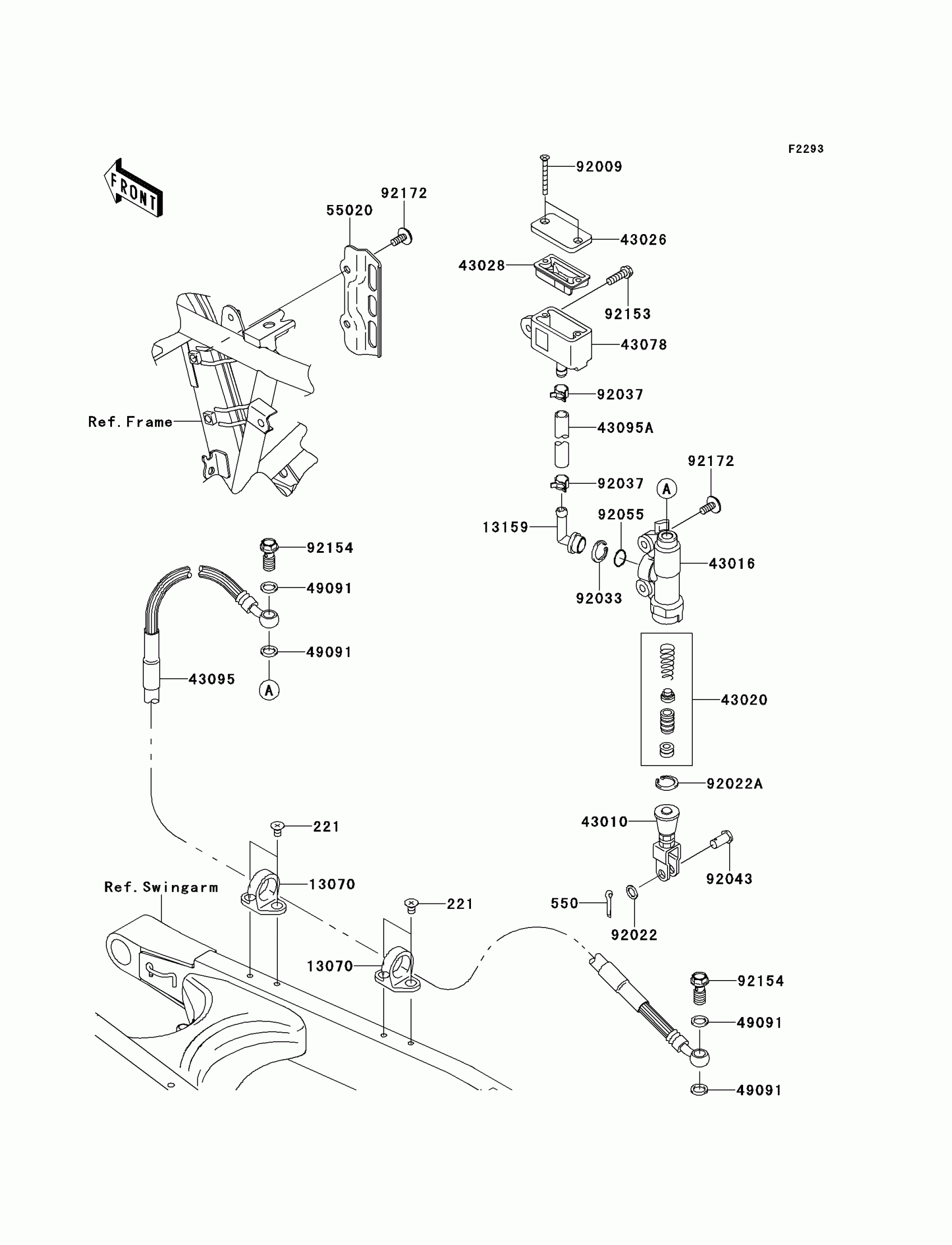

Kawasaki KLX®250SF Rear Master Cylinder Diagram
