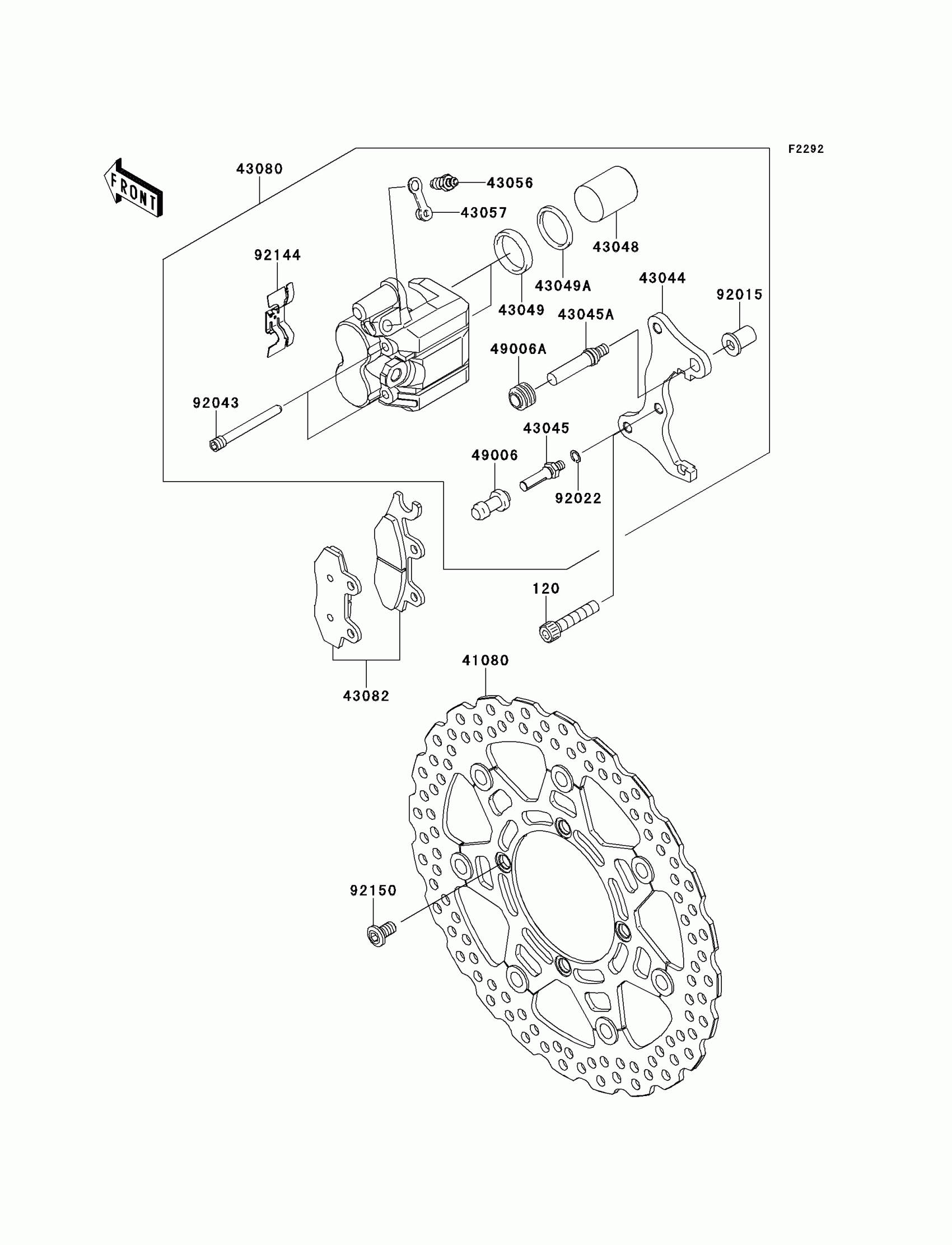

Kawasaki KLX®250SF Front Brake Diagram

Description

Price

120

BOLT-SOCKET,8X40

120CA0840

$1.98

41080

DISC,FR,HOUSING BLK+DISC SIL

41080-0187-11I

$326.41

43044

HOLDER-COMP-CALIPER,FR,LH

43044-0026

$160.14

43045

SHAFT-CALIPER

43045-1010

$19.49

43045A

SHAFT-CALIPER

43045-1052

$16.47

43048

PISTON-CALIPER

43048-1066

$74.44

43049

PACKING

43049-1063

$6.13

43049A

PACKING

43049-1064

$4.64

43056

BREATHER-BRAKE

43056-0004

$12.83

43057

CAP-BREATHER

43057-1001

$3.73

43080

CALIPER-SUB-ASSY,FR,LH,F.BLACK

43080-0064-25S

$392.02

43082

PAD-ASSY-BRAKE

43082-0087

$74.33

49006

BOOT,CALIPER

49006-1088

$8.83

49006A

BOOT,CALIPER

49006-1242

$4.14

92015

NUT

92015-1740

$5.46

92022

WASHER,WAVE

92022-1373

$3.53

92043

PIN,HANGER

92043-1416

$14.01

92144

SPRING,PAD

92144-1847

$30.92

92150

BOLT,DISC PLATE,8X15

92150-1811

$3.81
