2010 Kawasaki KLX®250SF Rear Brake Diagram

← All diagrams

Find the part on the Rear Brake diagram for your 2010 Kawasaki KLX®250SF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

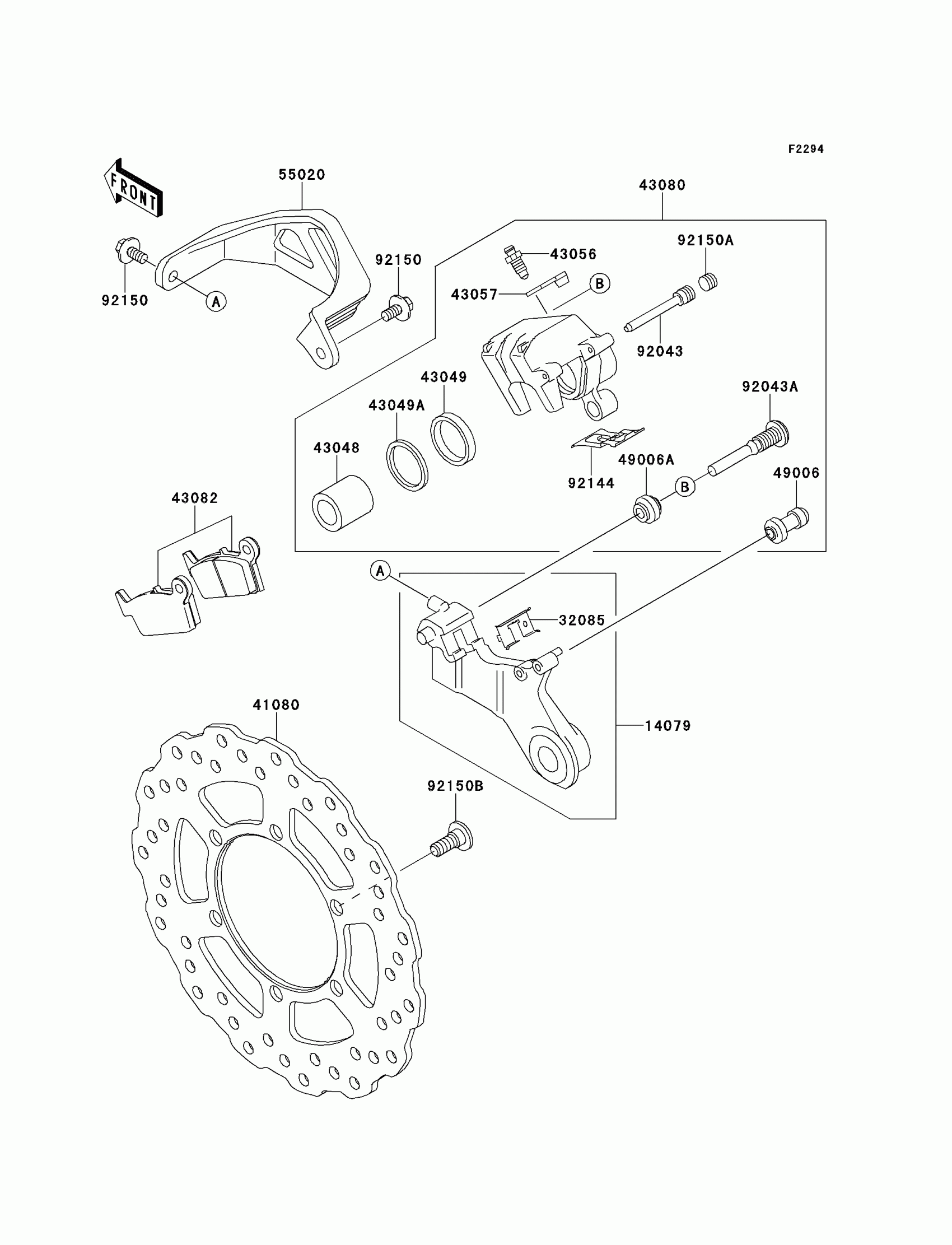

2010 Kawasaki KLX®250SF Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14079

1

$160.14

In stock

32085

STOPPER,PAD

32085-1386

1
Out of stock

41080

DISC,RR,BLACK

41080-0116-11H

1
Out of stock

43048

PISTON-CALIPER

43048-1068

1
Out of stock

43049

PACKING,PISTON SEAL

43049-1060

1
Out of stock

43049A

PACKING,PISTON SEAL

43049-1061

1
Out of stock

43056

BREATHER-BRAKE

43056-0004

1
Out of stock

43057

CAP-BREATHER

43057-1001

1
Out of stock

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-0069-25S

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-0090

1
Out of stock

49006

BOOT,CALIPER

49006-1088

1
Out of stock

49006A

BOOT,CALIPER

49006-1242

1
Out of stock

55020

GUARD,RR CALIPER,EBONY

55020-1488-6C

1
Out of stock

92043

PIN,HANGER

92043-1507

1
Out of stock

92043A

PIN

92043-1508

1
Out of stock

92144

SPRING,PAD

92144-1819

1
Out of stock

92150

BOLT,6X14

92150-1340

1
Out of stock

92150A

BOLT,PLUG

92150-1692

1
Out of stock

92150B

BOLT,DISC PLATE,8X15

92150-1811

1
Out of stock
