2010 Kawasaki KLX®250SF Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 2010 Kawasaki KLX®250SF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

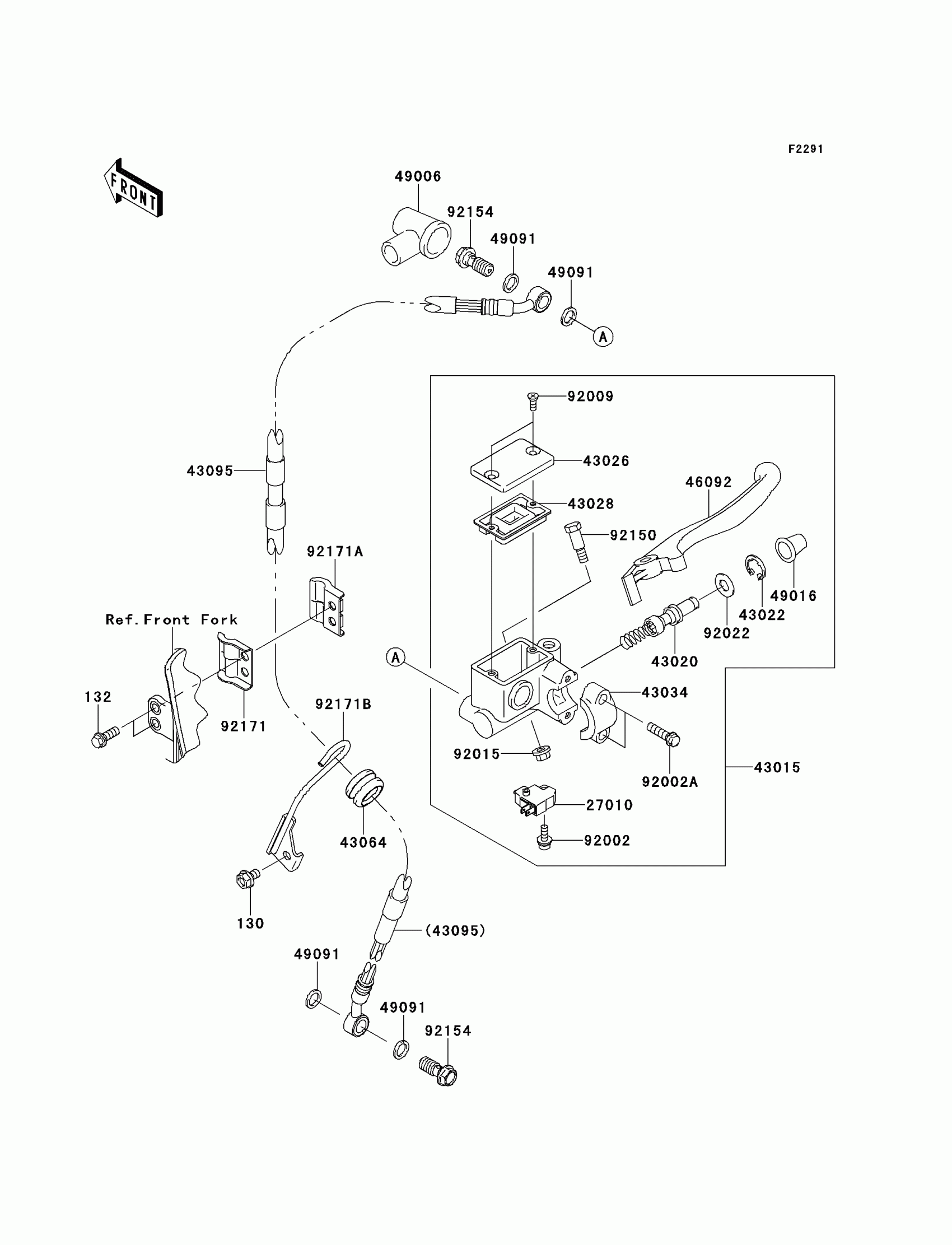

2010 Kawasaki KLX®250SF Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X10

130BB0610

1

$2.05

In stock

132

1

$2.05

In stock

27010

SWITCH,BRAKE

27010-0025

1
Out of stock

43015

CYLINDER-ASSY-MASTER,FR

43015-1697

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1126

1
Out of stock

43022

STOPPER-BRAKE,PISTON

43022-1010

1
Out of stock

43026

CAP-BRAKE

43026-1074

1
Out of stock

43028

DIAPHRAGM

43028-1061

1
Out of stock

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

1
Out of stock

43064

GROMMET,HOSE CLAMP

43064-007

1
Out of stock

43095

HOSE-BRAKE,FR

43095-0443

1
Out of stock

46092

LEVER-GRIP,FRONT BRAKE

46092-1140

1
Out of stock

49006

BOOT,DUST

49006-1040

1
Out of stock

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92002

BOLT,SCREW,4X12

92002-1323

1
Out of stock

92002A

BOLT

92002-1894

1
Out of stock

92009

SCREW,4MM

92009-1458

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1528

1
Out of stock

92022

WASHER

92022-1814

1
Out of stock

92150

BOLT,LEVER SET

92150-1451

1
Out of stock

92154

BOLT,OIL,L=23

92154-0226

1
Out of stock

92171

CLAMP,BRAKE HOSE

92171-1626

1
Out of stock

92171A

CLAMP,BRAKE HOSE

92171-1627

1
Out of stock

92171B

CLAMP,BRAKE HOSE

92171-1839

1
Out of stock
