2010 Kawasaki KLX®250SF Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 2010 Kawasaki KLX®250SF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

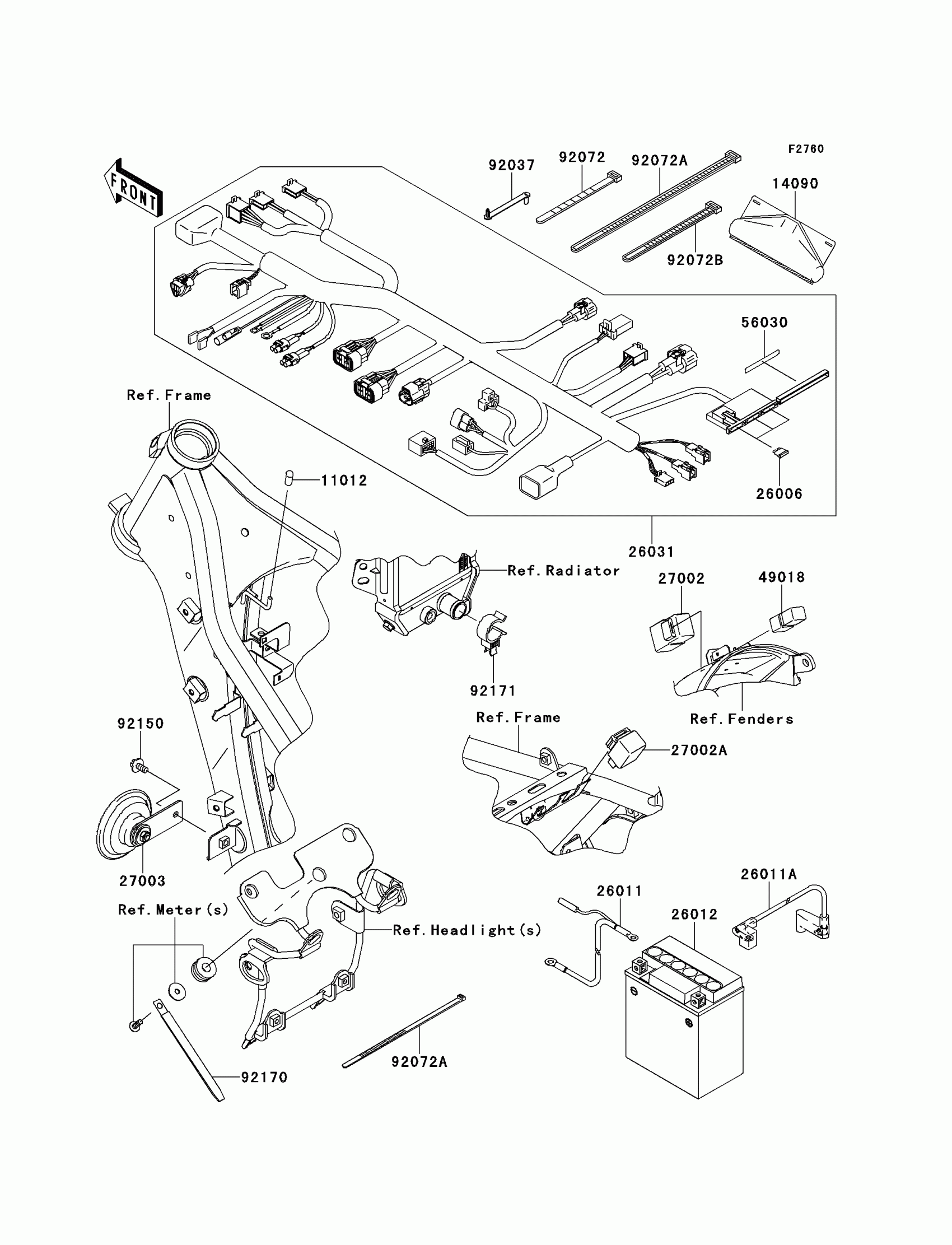

2010 Kawasaki KLX®250SF Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,BUNGEE CORD HOOK

11012-1589

1
Out of stock

14090

COVER,COUPLER

14090-1331

1

$8.31

In stock

26006

FUSE,MINI BLADE,10A,RED

26006-0009

1
Out of stock

26011

WIRE-LEAD,BATTERY(-)

26011-0209

1
Out of stock

26011A

WIRE-LEAD,BATTERY(+)

26011-1609

1
Out of stock

26012

BATTERY,FTX7L-BS,12V6AH

26012-0068

1
Out of stock

26031

HARNESS,MAIN

26031-0721

1
Out of stock

27002

RELAY-ASSY

27002-1086

1
Out of stock

27002A

RELAY-ASSY,SIGNAL LAMP

27002-1097

1
Out of stock

27003

HORN

27003-0029

1
Out of stock

49018

DIODE

49018-1052

1
Out of stock

56030

LABEL,FUSE BOX

56030-0192

1
Out of stock

92037

CLAMP,SPEED,L=58

92037-1163

1
Out of stock

92072

BAND,L=123

92072-030

1
Out of stock

92072A

BAND,L=250

92072-1237

1
Out of stock

92072B

BAND,L=140

92072-1293

1
Out of stock

92150

BOLT,FLANGED,6X14

92150-1689

1
Out of stock

92170

CLAMP,L=150

92170-1114

1

$7.36

In stock

92171

CLAMP

92171-1437

1
Out of stock
