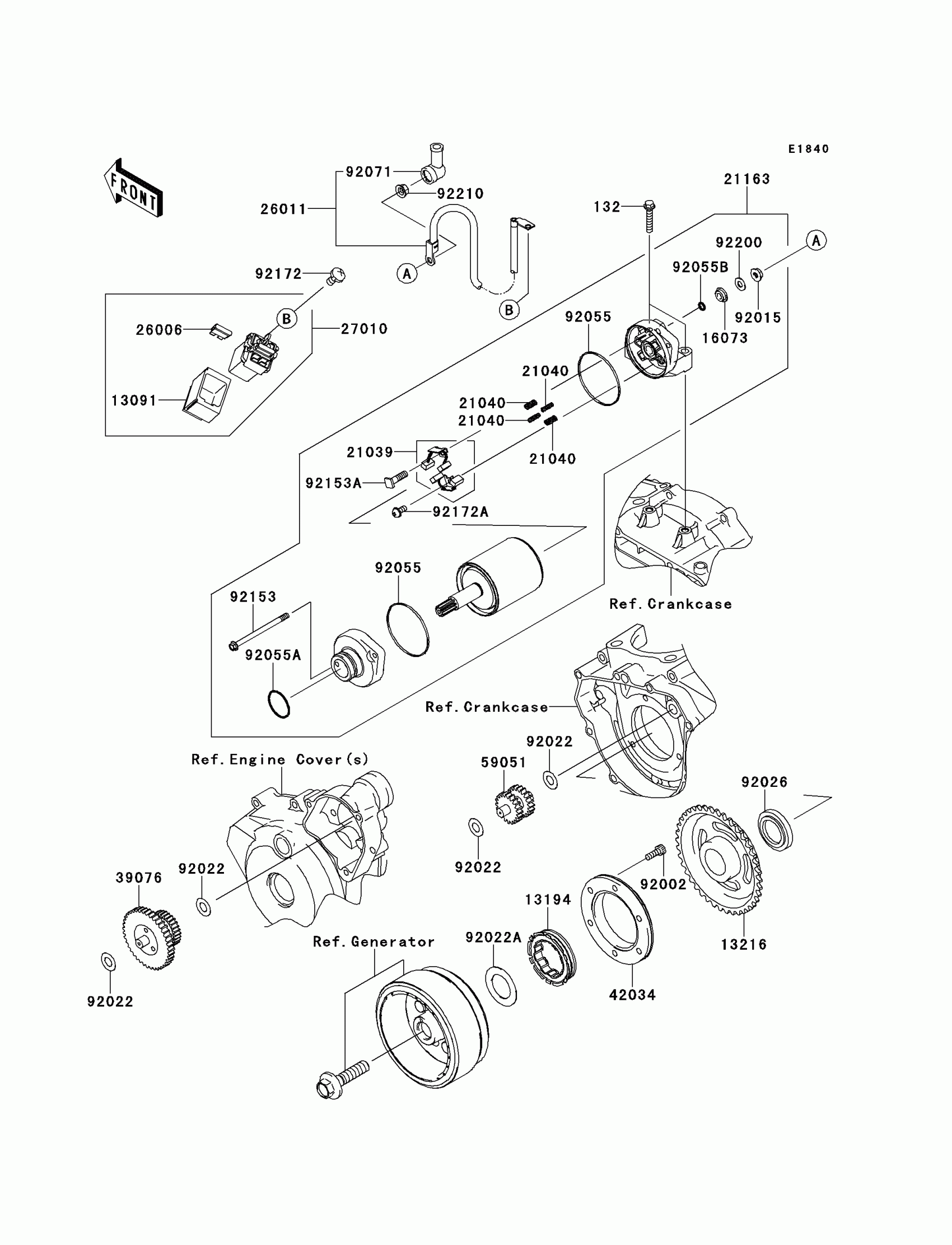

Kawasaki KLX®250SF Starter Motor Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X30

132BC0630

$1.57

13091

HOLDER,SWITCH

13091-1883

$7.47

13194

CLUTCH-ONEWAY

13194-1091

Unavailable

13216

GEAR-COMP,ONEWAY CLUTCH

13216-1148

Unavailable

16073

INSULATOR

16073-0053

$11.42

21039

BRUSH,CARBON

21039-0004

$120.17

21040

SPRING-BRUSH

21040-0003

$9.47

21163

STARTER-ELECTRIC

21163-0046

$506.06

26006

FUSE,BLADE,20A,YELLOW

26006-1051

$4.39

26011

WIRE-LEAD

26011-0164

Unavailable

27010

SWITCH

27010-1336

Unavailable

39076

LIMITER,STARTER IDLE GEAR

39076-0020

$187.07

42034

COUPLING

42034-0048

$119.77

59051

GEAR-SPUR,IDLE

59051-1304

$90.72

92002

BOLT,SOCKET,6X16

92002-1778

$3.81

92015

NUT,STARTER MOTOR

92015-1476

$3.85

92022

WASHER,10.2X20X0.5

92022-1649

$3.29

92022A

WASHER,27.2X44X1.0

92022-1781

$5.54

92026

SPACER

92026-1450

$18.64

92055

RING-O

92055-0136

$5.91

92055A

RING-O

92055-1276

$7.54

92055B

RING-O,4.5X2.0

92055-1370

$4.17

92071

GROMMET

92071-0037

Unavailable

92153

BOLT

92153-1850

$11.42

92153A

BOLT

92153-1866

$4.14

92172

SCREW-PAN-WS-CROS,5X10

92172-0234

$1.81

92172A

SCREW

92172-0334

$4.14

92200

WASHER

92200-0386

$4.14

92210

NUT,6MM

92210-0188

$1.81
