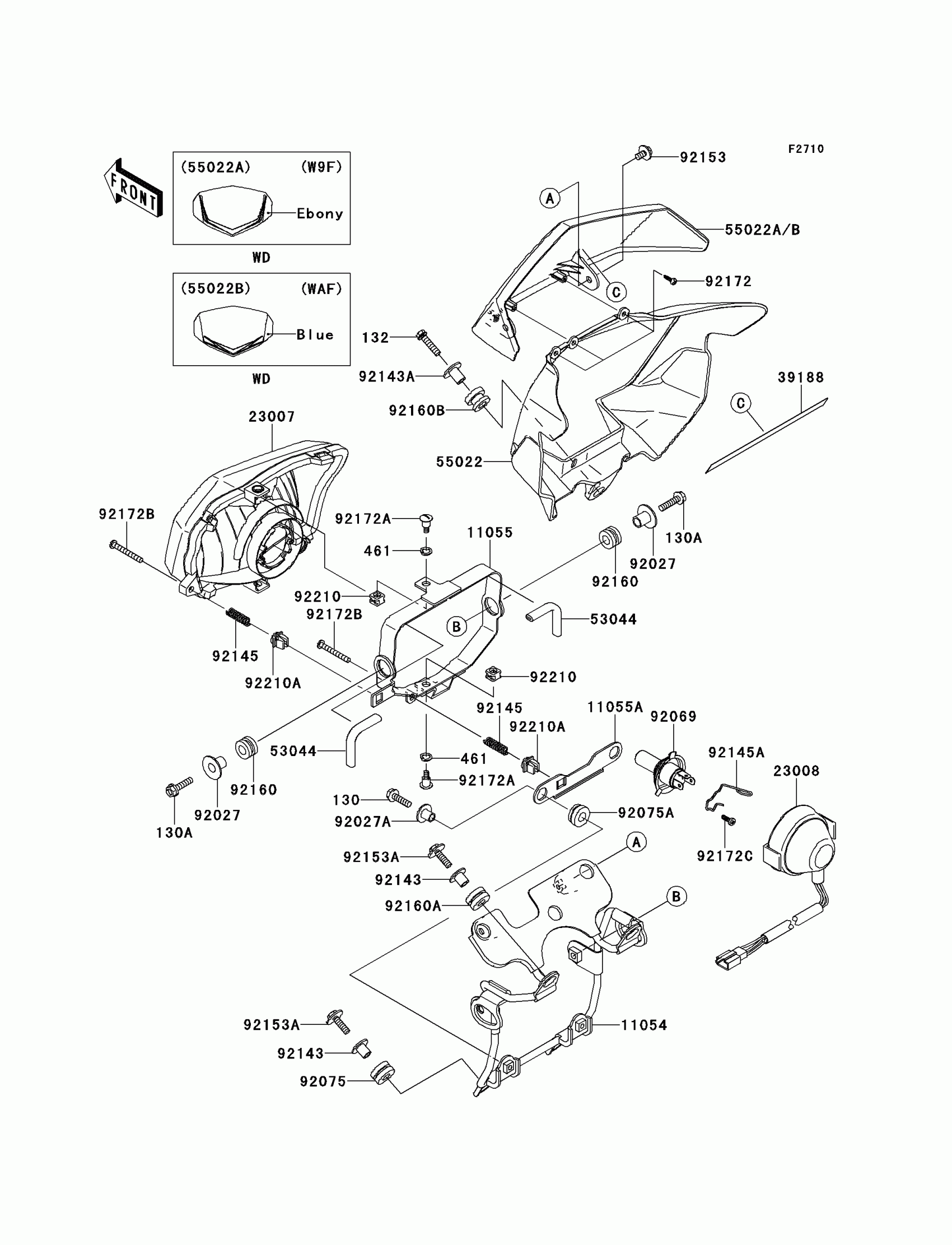

Kawasaki KLX®250SF Headlight(s) Diagram

#

Description
Price

130

BOLT-FLANGED,6X22

130BB0622

$2.79

130A

BOLT-FLANGED,8X25

130BB0825

$3.39

132

BOLT-FLANGED-SMALL,6X25

132BB0625

$1.98

461

WASHER-SPRING,8MM

461DA0800

$0.44

11054

BRACKET,HEAD LAMP&METER

11054-1692

$128.95

11055

BRACKET,HEAD LAMP

11055-0381

$40.70

11055A

BRACKET,HEAD LAMP

11055-0382

$14.53

23007

LENS-COMP,HEAD LAMP

23007-0109

$182.30

23008

SOCKET-ASSY,HEAD LAMP

23008-0089

$84.48

39188

TAPE

39188-0011

$6.38

53044

TRIM,L=90

53044-0033

$1.85

55022

COVER-HEAD LAMP,LWR,EBONY

55022-0052-6C

$60.57

55022B

COVER-HEAD LAMP,UPP,O.BLUE

55022-5093-274

$58.42

92027

COLLAR,FUEL TANK FITT

92027-1134

$7.83

92027A

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

$3.98

92069

BULB,12V 60/55W,H4

92069-1002

Unavailable

92075

DAMPER RUBBER,RR FENR

92075-209

$3.57

92075A

DAMPER

92075-277

$1.90

92143

COLLAR

92143-1353

$6.54

92143A

COLLAR

92143-1960

$4.85

92145

SPRING,FOCUS ADJUSTING

92145-0565

$3.24

92145A

SPRING

92145-0753

$7.88

92153

BOLT,6X12

92153-0503

$1.98

92153A

BOLT,UPSET-WP,6X22

92153-0640

$1.54

92160

DAMPER

92160-1007

$4.18

92160A

DAMPER,10X20X12

92160-1167

$3.57

92160B

DAMPER

92160-1615

$3.29

92172

SCREW,TAPPING,4X12

92172-0233

$1.04

92172A

SCREW,5X16.7

92172-0345

$1.04

92172B

SCREW,5X45

92172-0346

$1.51

92172C

SCREW

92172-0456

$3.12

92210

NUT,PLASTIC

92210-0426

$5.17

92210A

NUT,5MM

92210-0427

$3.27
