2022 Kawasaki KLX®230 S Swingarm Diagram

← All diagrams

Find the part on the Swingarm diagram for your 2022 Kawasaki KLX®230 S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

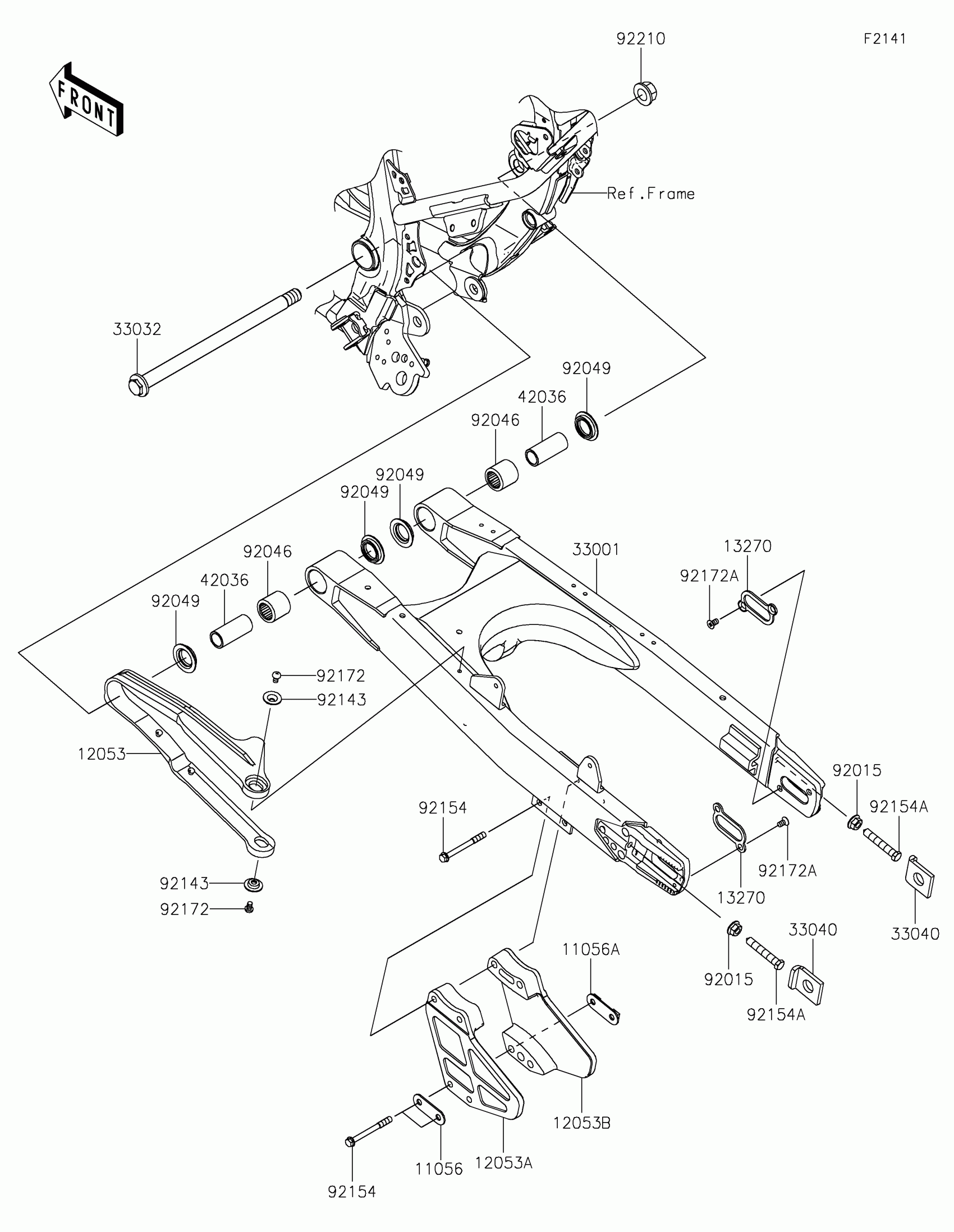

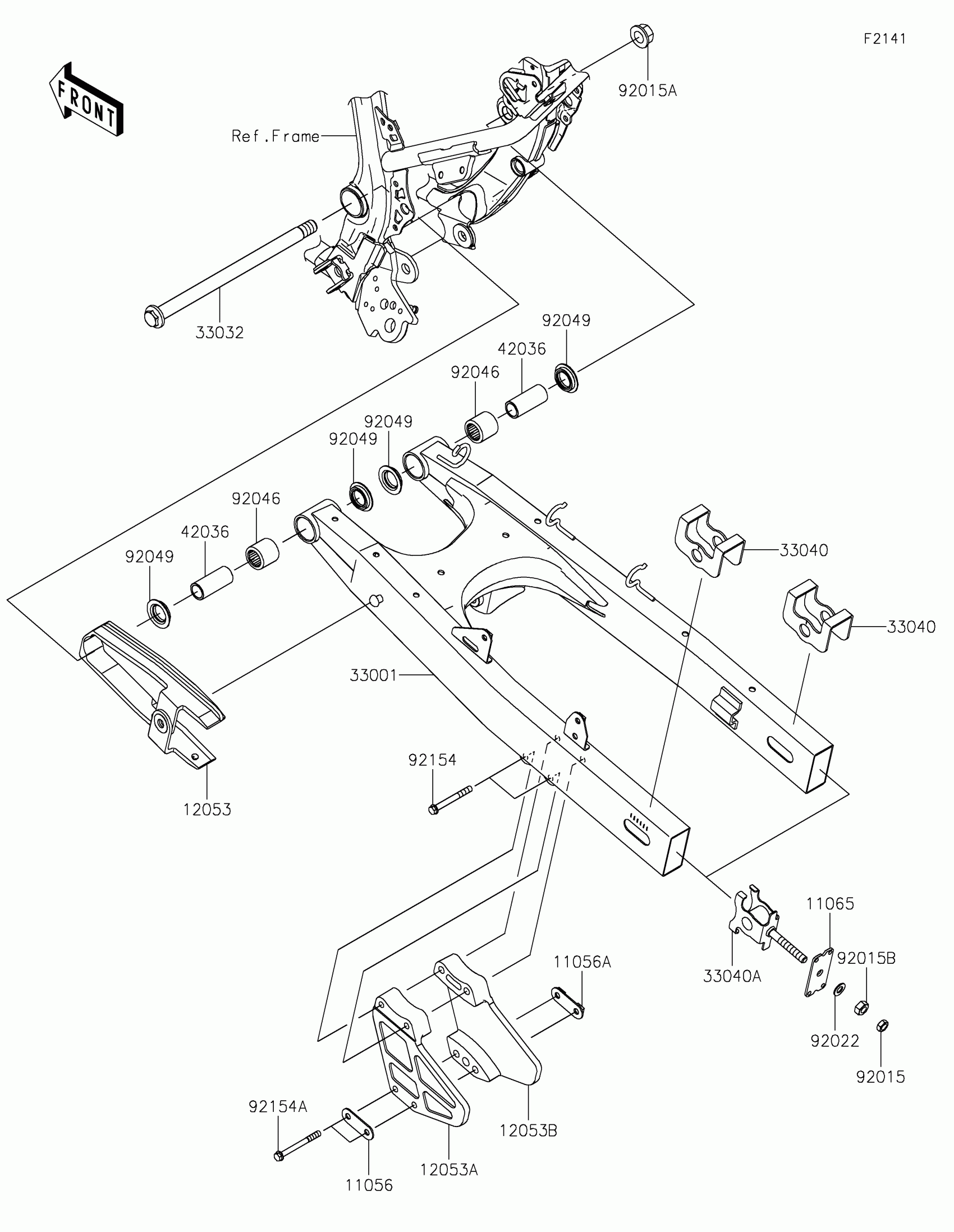

2022 Kawasaki KLX®230 S Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET

11056-2395

1

$1.10

In stock

11056A

BRACKET,WITH NUT

11056-2396

1

$1.69

In stock

11065

CAP

11065-1309

1

$4.25

In stock

12053

GUIDE-CHAIN,FR

12053-0286

1

$19.85

In stock

12053A

1

$10.63

In stock

12053B

1

$9.76

In stock

33001

ARM-COMP-SWING,P.SILVER

33001-0712-458

1

$558.70

In stock

33032

1

$43.10

In stock

33040

1

$10.05

In stock

33040A

1

$34.13

In stock

42036

SLEEVE,15X20X46

42036-0831

1

$14.61

In stock

92015

NUT,8MM

92015-1364

1

$3.12

In stock

92015A

NUT,14MM

92015-1407

1

$7.86

In stock

92015B

NUT,8MM

92015-1658

1

$3.87

In stock

92022

WASHER,8.5X16X1.2

92022-1582

1

$0.84

In stock

92046

BEARING-NEEDLE,BM202726

92046-1110

1
Out of stock

92049

SEAL-OIL

92049-0849

1

$9.02

In stock

92154

BOLT,FLANGED,6X55

92154-1190

1

$2.29

In stock

92154A

BOLT,FLANGED,6X60

92154-2762

1

$3.15

In stock
