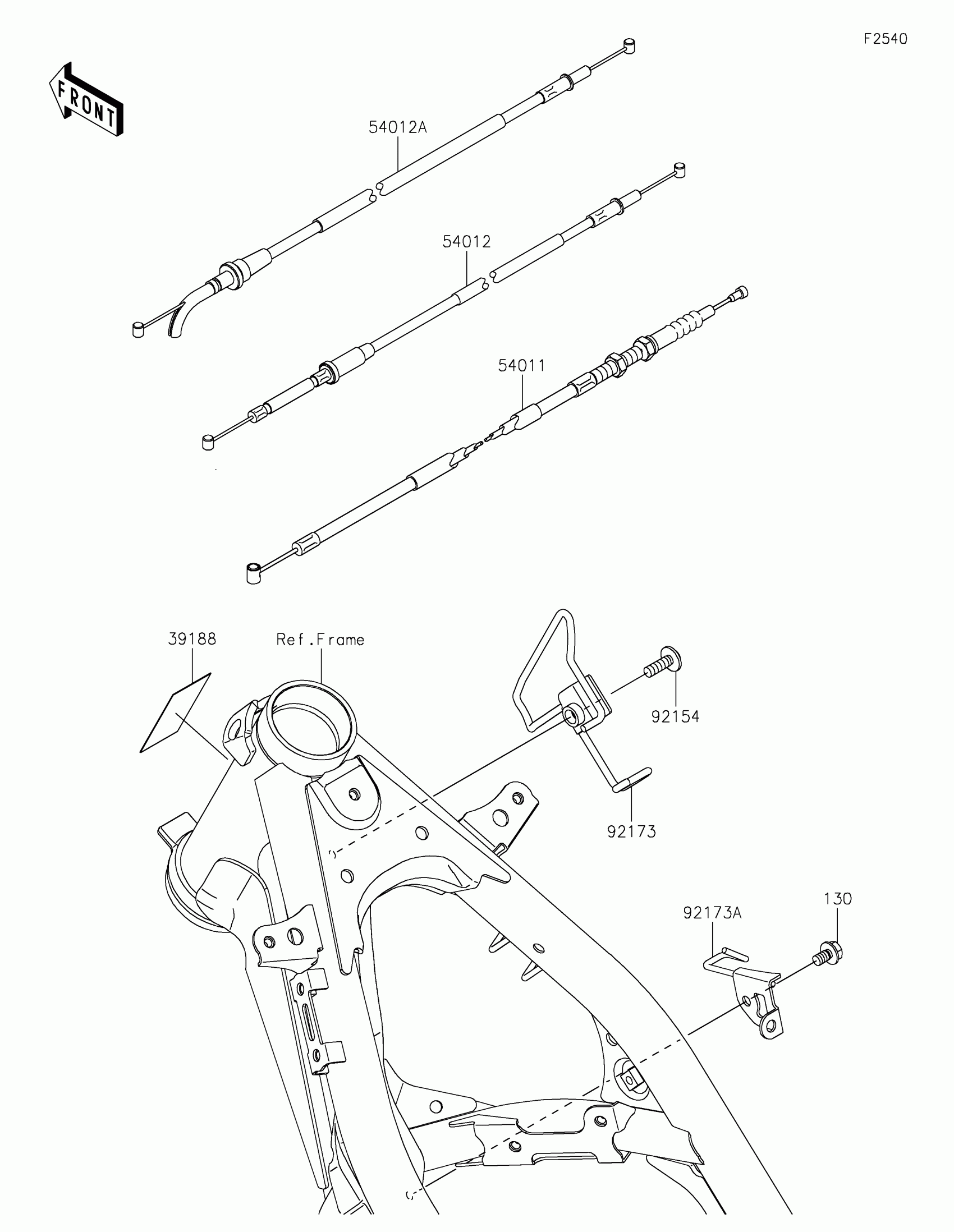

2022 Kawasaki KLX®230 S Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 2022 Kawasaki KLX®230 S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Kawasaki KLX®230 S Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39188

TAPE,30X60X0.36

39188-0581

1

$8.44

In stock

54011

CABLE-CLUTCH

54011-0639

1

$29.26

In stock

54012

1

$29.07

In stock

54012A

CABLE-THROTTLE,PULL

54012-0710

1

$26.08

In stock

92154

BOLT,SOCKET,6X18

92154-1291

1

$1.32

In stock

92173

CLAMP

92173-2046

1

$15.59

In stock

92173A

CLAMP

92173-2243

1

$7.20

In stock

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock
