2022 Kawasaki KLX®230 S Front Fork Diagram

← All diagrams

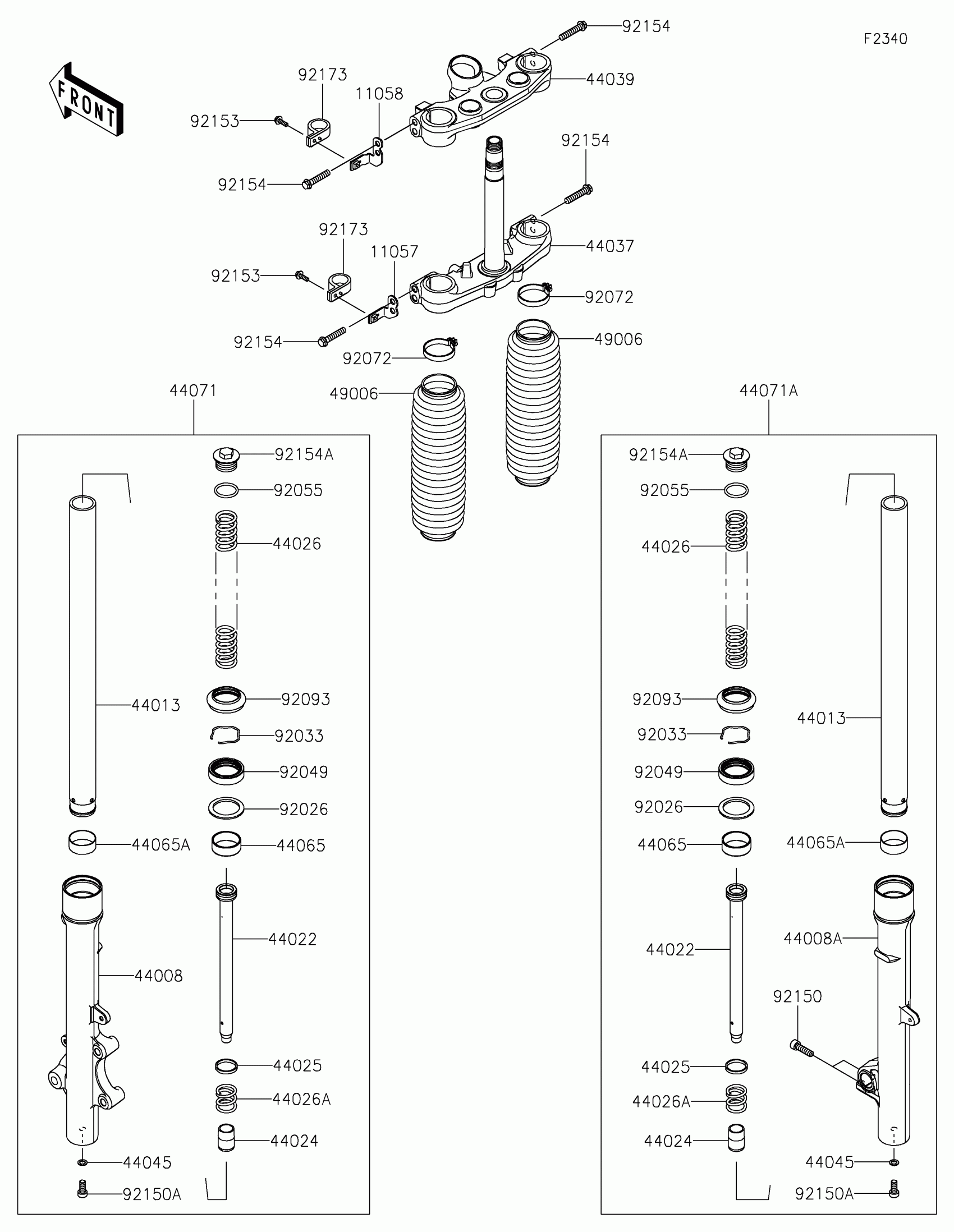

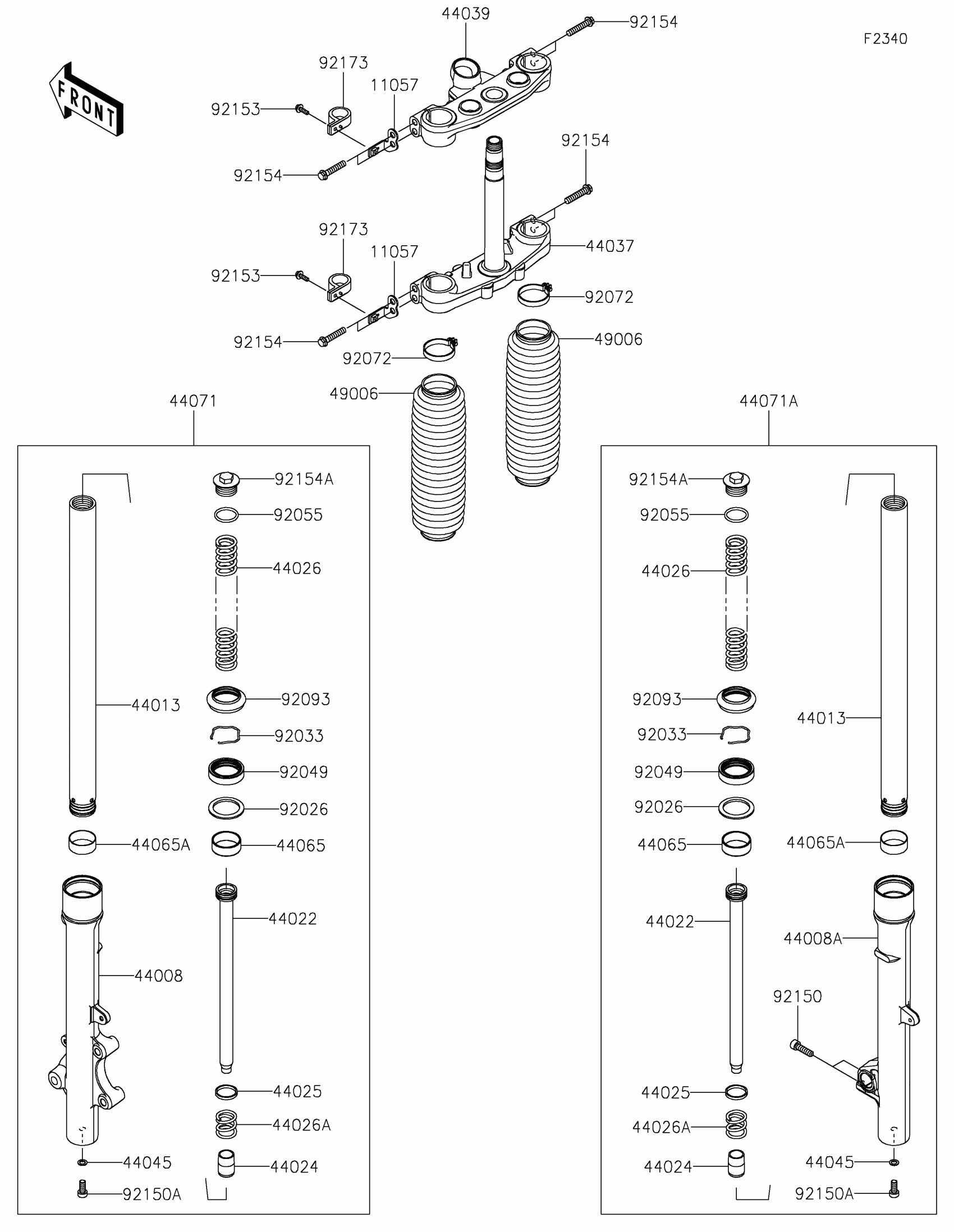

Find the part on the Front Fork diagram for your 2022 Kawasaki KLX®230 S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Kawasaki KLX®230 S Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-2284

1

$16.03

In stock

44008

PIPE-FORK OUTER,LH

44008-0089

1

$247.94

In stock

44008A

PIPE-FORK OUTER,RH

44008-0090

1

$247.94

In stock

44013

PIPE-FORK INNER

44013-0386

1

$234.42

In stock

44022

CYLINDER-FORK

44022-0057

1

$72.28

In stock

44024

CAP-OIL-LOCK

44024-0016

1

$21.15

In stock

44025

RING-FORK PISTON

44025-1062

1

$9.69

In stock

44026

SPRING-FRONT FORK

44026-0279

1

$52.49

In stock

44026A

SPRING-FRONT FORK

44026-1556

1

$5.58

In stock

44037

HOLDER-FORK UNDER

44037-0191

1

$269.29

In stock

44039

HOLDER-FORK UPPER

44039-0193

1

$302.53

In stock

44045

1

$4.88

In stock

44065

BUSHING-FRONT FORK

44065-0069

1

$17.68

In stock

44065A

BUSHING-FRONT FORK

44065-0070

1

$9.65

In stock

44071

DAMPER-ASSY,FORK,LH

44071-1531

1

$488.03

In stock

44071A

DAMPER-ASSY,FORK,RH

44071-1532

1

$488.03

In stock

49006

BOOT

49006-0612

1

$62.32

In stock

92026

SPACER

92026-0905

1

$7.39

In stock

92033

RING-SNAP

92033-1286

1

$7.88

In stock

92049

SEAL-OIL

92049-0734

1
Out of stock

92055

RING-O

92055-1456

1

$3.17

In stock

92072

BAND

92072-0826

1

$17.36

In stock

92093

SEAL,FORK OUTER

92093-1367

1

$19.99

In stock

92150

BOLT,SOCKET,8X30

92150-1407

1

$2.29

In stock

92150A

BOLT,SOCKET,8X18

92150-1432

1

$7.86

In stock

92153

BOLT,FLANGED

92153-1397

1
Out of stock

92154

BOLT

92154-0463

1

$3.93

In stock

92154A

BOLT

92154-3953

1

$16.03

In stock

92173

CLAMP

92173-2246

1

$8.53

In stock
