2025 Kawasaki KLX®230 S ABS Wheels/tires Diagram

← All diagrams

Find the part on the Wheels/tires diagram for your 2025 Kawasaki KLX®230 S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

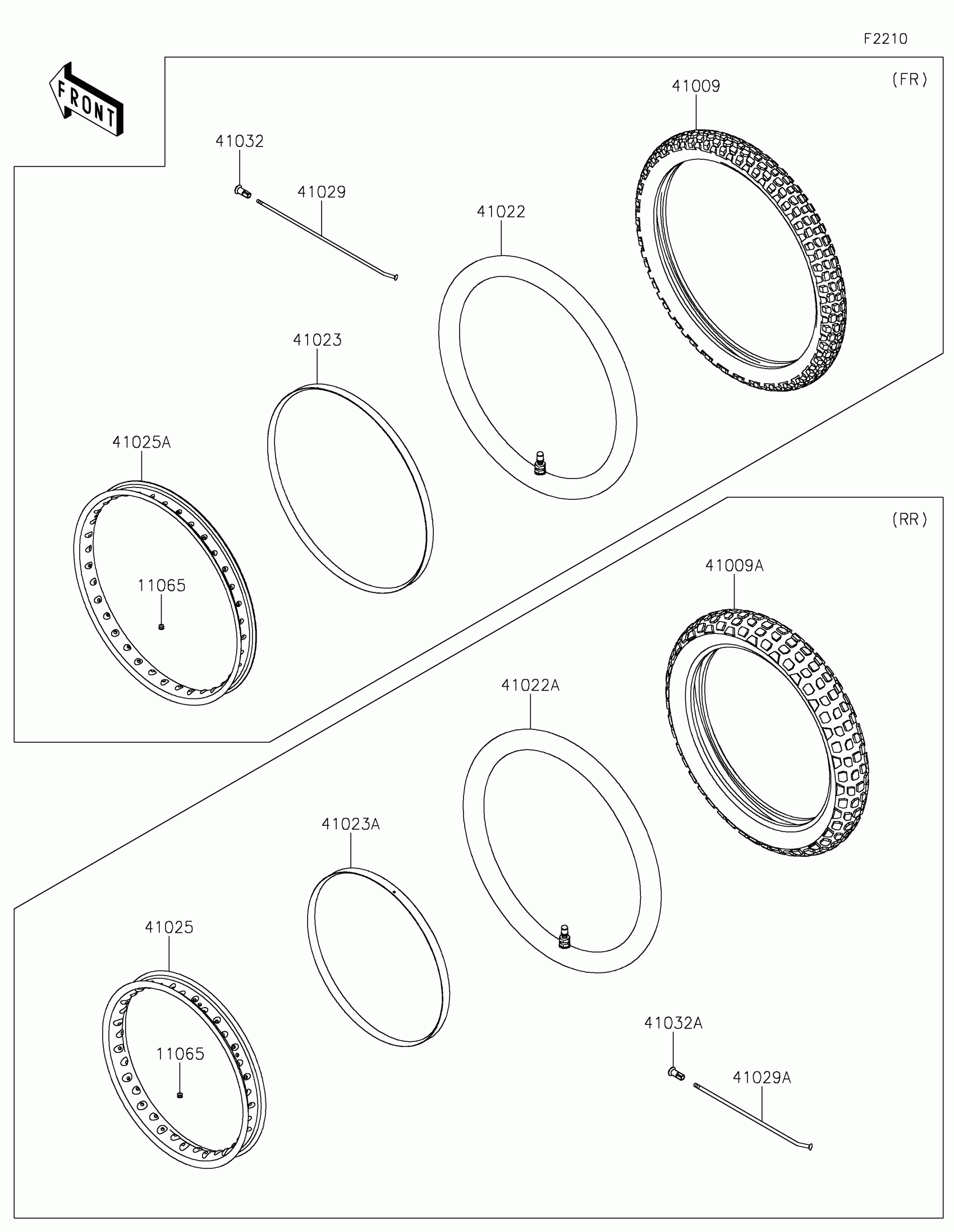

2025 Kawasaki KLX®230 S ABS Wheels/tires Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,BEAD STOPPER

11065-0384

1

$2.93

In stock

41009

1

$124.33

In stock

41009A

1

$144.06

In stock

41022

TUBE-TIRE

41022-0112

1

$52.54

In stock

41022A

TUBE-TIRE

41022-0113

1

$52.54

In stock

41023

BAND-RIM,2.75-21

41023-0028

1

$5.07

In stock

41023A

BAND-RIM,4.10-18

41023-0029

1

$5.07

In stock

41025

RIM,RR,18X1.85,BLACK

41025-0399-WC

1

$374.33

In stock

41025A

RIM,FR,21X1.60,BLACK

41025-0400-WC

1

$402.29

In stock

41029

1

$3.45

In stock

41029A

1

$3.45

In stock

41032

NIPPLE-SPOKE

41032-0010

1

$2.92

In stock

41032A

NIPPLE-SPOKE

41032-0013

1

$2.66

In stock
