2025 Kawasaki KLX®230 S ABS Front HUB Diagram

← All diagrams

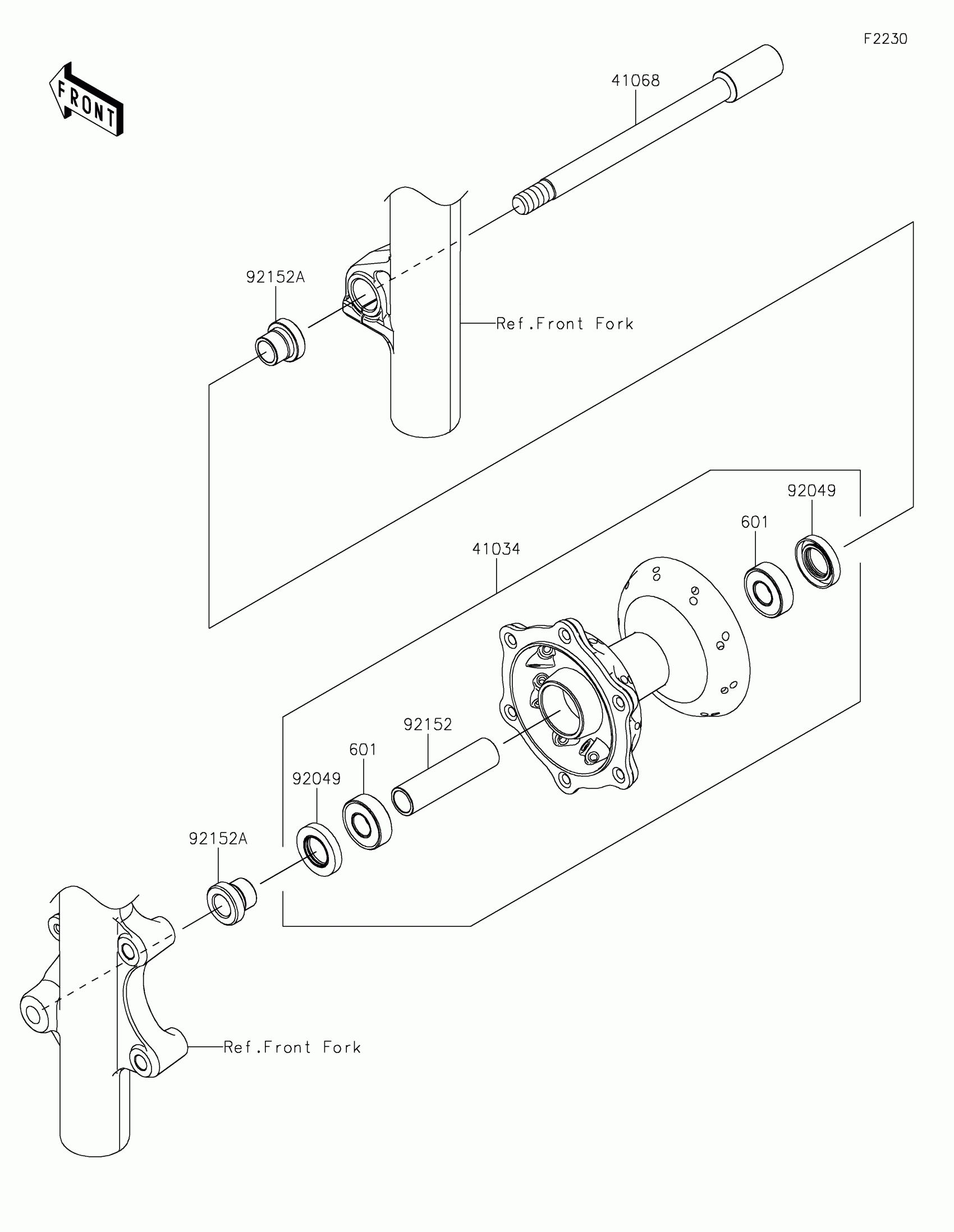

Find the part on the Front HUB diagram for your 2025 Kawasaki KLX®230 S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLX®230 S ABS Front HUB Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41034

DRUM-ASSY,FR

41034-0600

1
Out of stock

41068

AXLE,FR,15X188

41068-0650

1
Out of stock

92049

SEAL-OIL

92049-0114

1
Out of stock

92152

COLLAR,15.2X20X79

92152-2543

1
Out of stock

92152A

COLLAR

92152-2545

1
Out of stock

601

BEARING-BALL

601B6202UU

1
Out of stock
