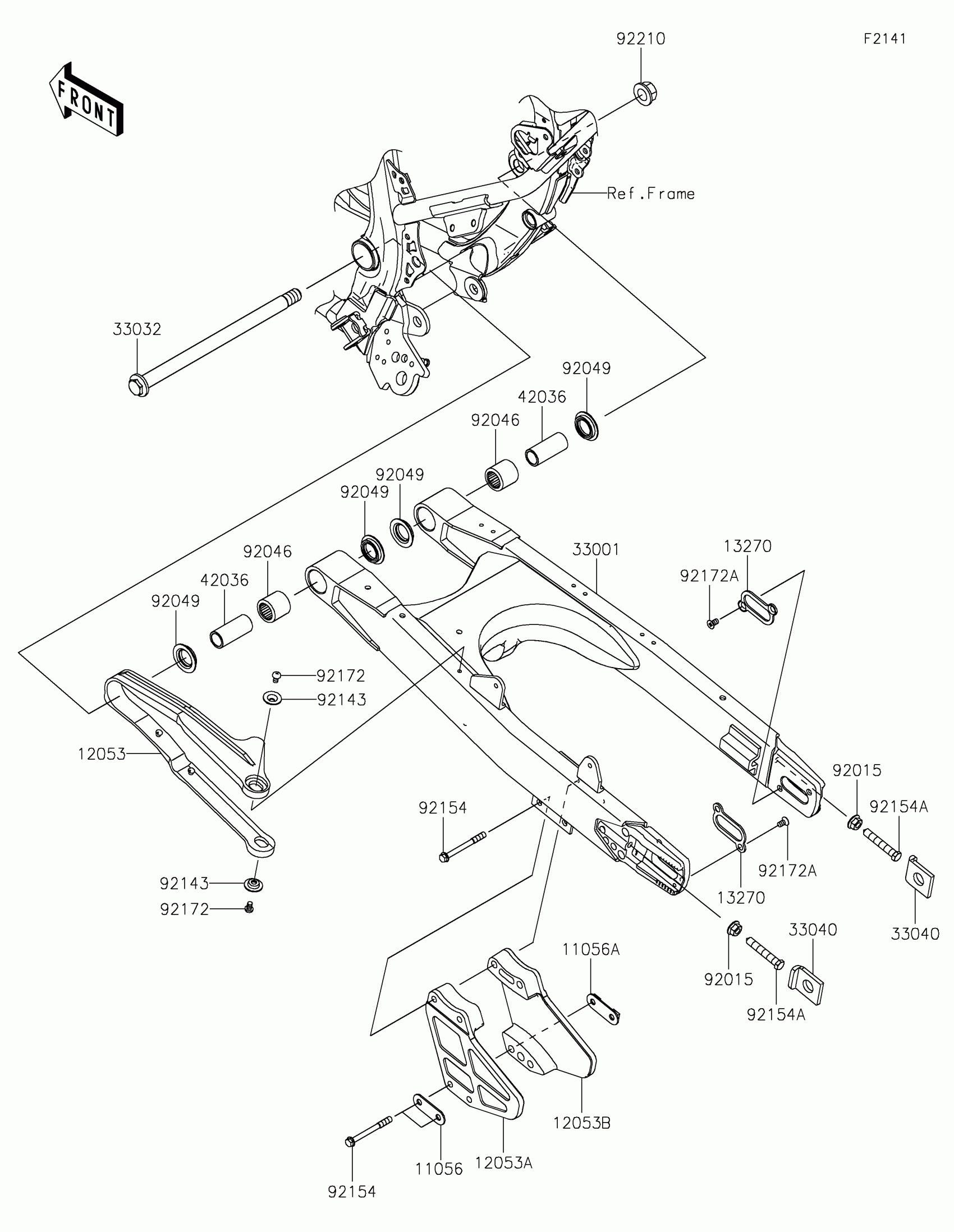

Kawasaki KLX®230 S ABS Swingarm Diagram

Description

Price

11056

BRACKET

11056-2395

$1.10

11056A

BRACKET,WITH NUT

11056-2396

$1.69

12053

GUIDE-CHAIN

12053-0345

$65.42

12053A

GUIDE-CHAIN,RR,OUTSIDE

12053-0359

$10.63

12053B

GUIDE-CHAIN,RR,INSIDE

12053-0360

$9.76

13270

PLATE

13270-1899

$7.17

33001

ARM-COMP-SWING,P.SILVER

33001-0763-458

$524.67

33032

SHAFT-SWING ARM,14X243

33032-0061

$43.10

33040

ADJUSTER-CHAIN

33040-0032

$5.12

42036

SLEEVE,15X20X46

42036-0831

$14.61

92015

NUT,FLANGED,8MM

92015-1014

$0.57

92046

BEARING-NEEDLE,BM202726

92046-1110

$18.91

92049

SEAL-OIL

92049-0849

$7.08

92143

COLLAR

92143-1676

$4.67

92154

BOLT,FLANGED,6X60

92154-2762

$3.15

92154A

BOLT,8X46

92154-4367

$17.63

92172

SCREW,5X8

92172-1540

$1.71

92172A

SCREW,5X10

92172-1541

$1.63

92210

NUT,14MM

92210-1990

$9.22
