2026 Kawasaki KLX®230 DF ABS Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 2026 Kawasaki KLX®230 DF ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

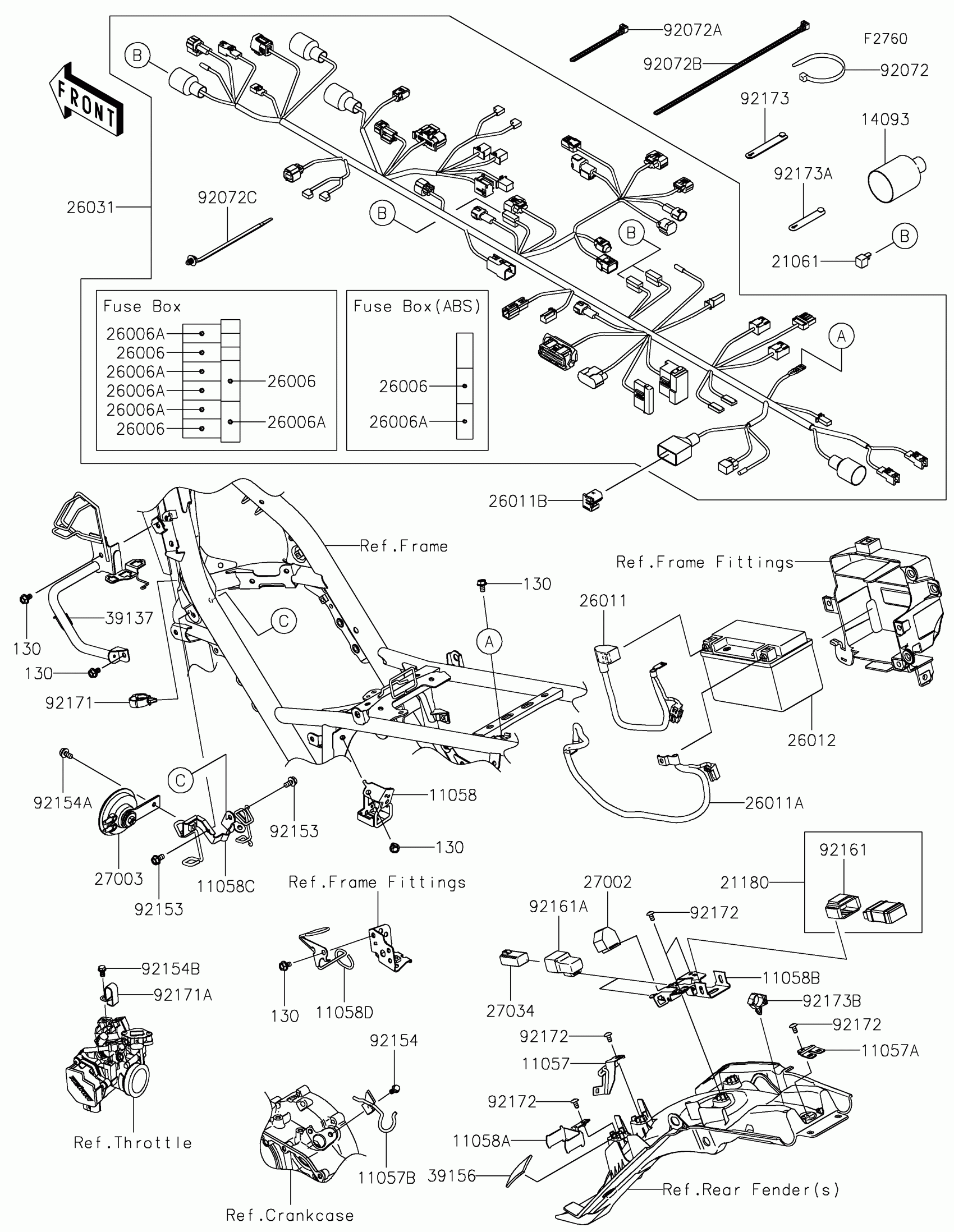

2026 Kawasaki KLX®230 DF ABS Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,FUSE BOX

11057-2350

1
Out of stock

11057A

BRACKET,RR HARNESS

11057-2351

1
Out of stock

11057B

BRACKET,BRAKE HOSE&HARNESS

11057-2772

1
Out of stock

11058

BRACKET

11058-1293

1
Out of stock

11058A

BRACKET

11058-1296

1
Out of stock

11058B

BRACKET

11058-1299

1
Out of stock

11058C

BRACKET,HORN

11058-2059

1
Out of stock

11058D

BRACKET

11058-4013

1
Out of stock

14093

COVER,HARNESS

14093-0720

1
Out of stock

21061

RECTIFIER

21061-1003

1
Out of stock

21180

TRANSCEIVER,BLUETOOTH

21180-0007

1
Out of stock

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

1
Out of stock

26006A

FUSE,MINI BLADE,10A,RED

26006-1078

1
Out of stock

26011

WIRE-LEAD,BATTERY(+)

26011-2455

1
Out of stock

26011A

WIRE-LEAD,BATTERY(-)

26011-2456

1
Out of stock

26011B

WIRE-LEAD,DIAG CONNECTOR

26011-2468

1
Out of stock

26012

BATTERY,YTX7A-BS,12V 6.3AH

26012-1599

1
Out of stock

26031

HARNESS,MAIN

26031-4406

1
Out of stock

27002

RELAY-ASSY,TURN SIGNAL

27002-0031

1
Out of stock

27003

HORN

27003-0166

1
Out of stock

27034

RELAY

27034-0012

1
Out of stock

39137

STAY-COMP

39137-0749

1
Out of stock

39156

PAD,55X30X5

39156-2451

1
Out of stock

92072

BAND,L=152

92072-0948

1
Out of stock

92072A

BAND,L=140

92072-0949

1
Out of stock

92072B

BAND,L=250

92072-0950

1
Out of stock

92072C

BAND,OS170-FT7(BLACK)

92072-1414

—
Out of stock

92153

BOLT,FLANGED,6X12

92153-1283

1
Out of stock

92154

BOLT,FLANGED,6X12

92154-1776

1
Out of stock

92154A

BOLT,FLANGED,6X12

92154-2776

1
Out of stock

92154B

BOLT,FLANGED,6X10

92154-7280

1
Out of stock

92161

DAMPER

92161-2516

1
Out of stock

92161A

DAMPER,RELAY

92161-2546

1
Out of stock

92171

CLAMP,20MM DIA.

92171-0069

1

$2.29

In stock

92171A

CLAMP

92171-0911

1
Out of stock

92172

SCREW,CROS,5X10

92172-1255

1
Out of stock

92173

CLAMP

92173-2194

1
Out of stock

92173A

CLAMP

92173-2199

1
Out of stock

92173B

CLAMP

92173-2737

1
Out of stock

130

BOLT-FLANGED,6X10

130BB0610

1

$2.05

In stock
