2026 Kawasaki KLX®230 Df ABS Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 2026 Kawasaki KLX®230 Df ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

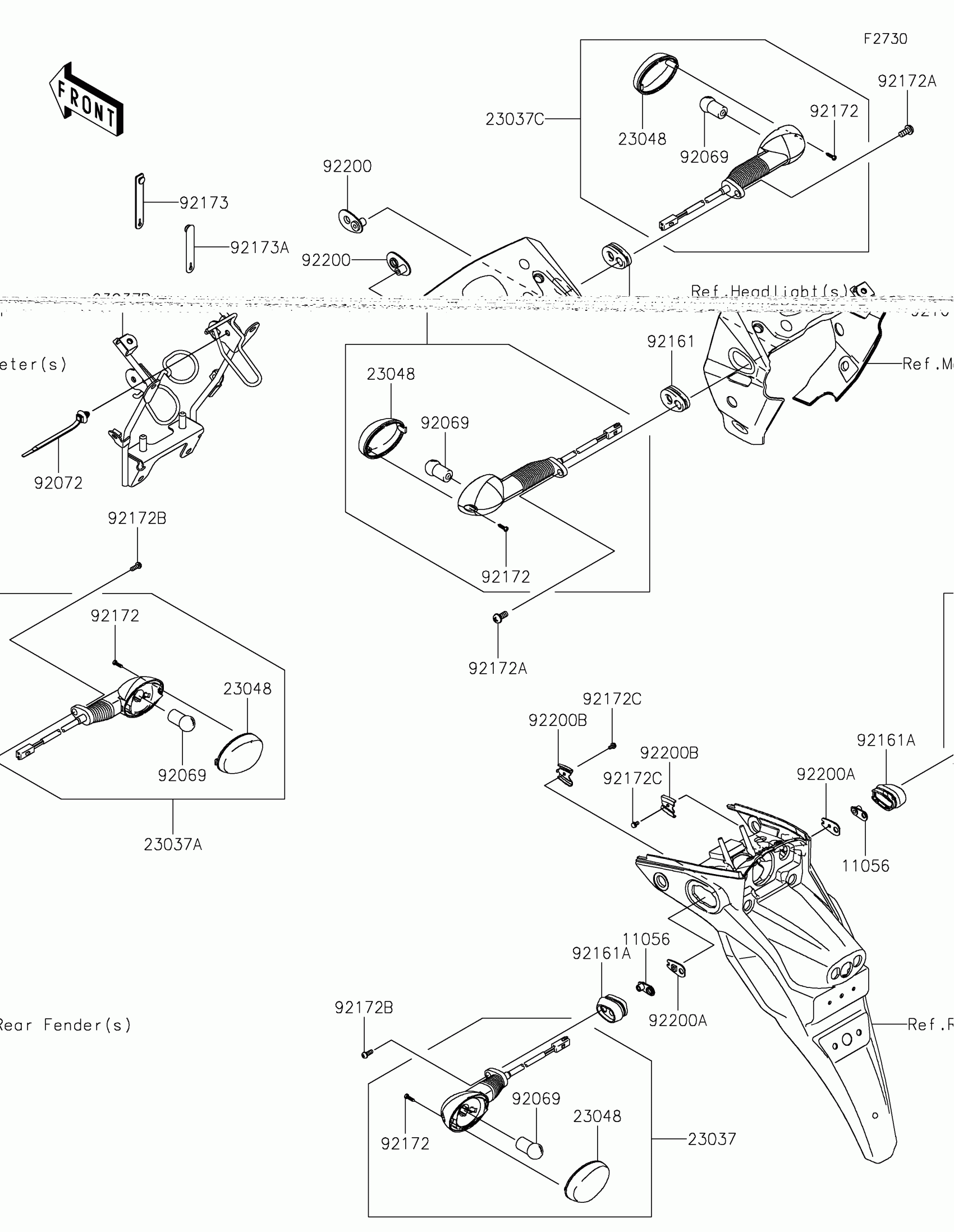

2026 Kawasaki KLX®230 Df ABS Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,6MM

11056-4156

1

$3.94

In stock

23037

1

$44.61

In stock

23037A

1

$44.61

In stock

23037B

1

$73.00

In stock

23037C

1

$73.00

In stock

23048

LENS-SIGNAL LAMP

23048-0035

1

$8.61

In stock

92069

BULB,12V 10W

92069-0106

1

$3.30

In stock

92072

1

$2.85

In stock

92161

DAMPER,MOUNT,FR

92161-2113

1

$7.47

In stock

92161A

DAMPER,SIGNAL LAMP

92161-2549

1

$7.61

In stock

92172

1

$1.53

In stock

92172A

SCREW,6X14

92172-0497

1

$4.75

In stock

92172B

1

$3.69

In stock

92172C

SCREW,4X8

92172-1542

1

$3.08

In stock

92173

CLAMP

92173-2198

1

$1.32

In stock

92173A

CLAMP

92173-2199

1

$1.32

In stock

92200

WASHER,SIGNAL LAMP

92200-0370

1
Out of stock

92200A

WASHER,W/NUT,M4

92200-1978

1

$3.56

In stock

92200B

WASHER

92200-1979

1

$3.56

In stock
