2026 Kawasaki KLX®230 DF ABS Wheels/tires Diagram

← All diagrams

Find the part on the Wheels/tires diagram for your 2026 Kawasaki KLX®230 DF ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

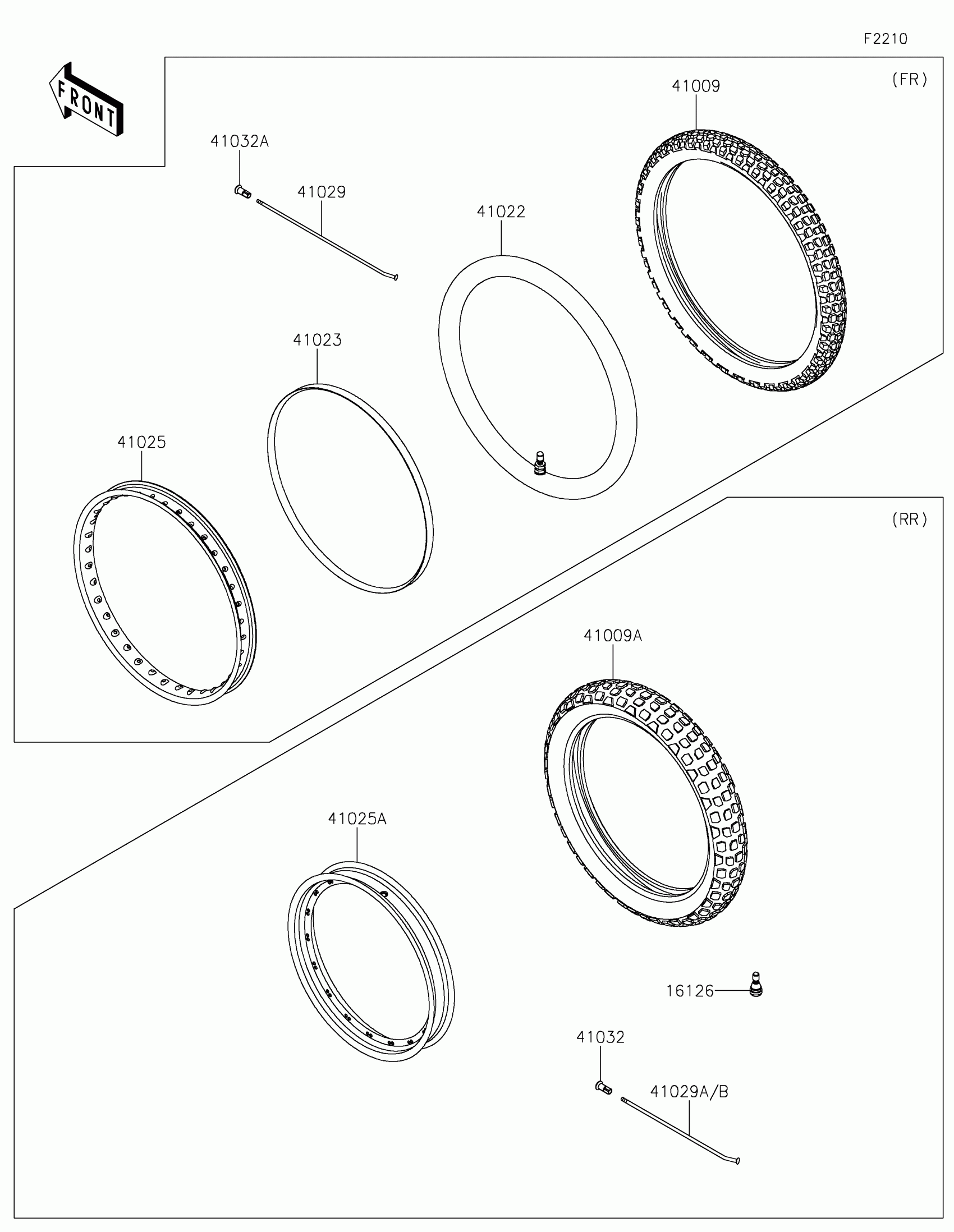

2026 Kawasaki KLX®230 DF ABS Wheels/tires Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16126

VALVE,TIRE

16126-1140

1
Out of stock

41009

TIRE,FR,2.75-21 45P,GP-21F

41009-0559

1
Out of stock

41009A

TIRE,RR,4.10-18 59P,GP-22R

41009-1457

1
Out of stock

41022

TUBE-TIRE

41022-0112

1
Out of stock

41023

BAND-RIM,2.75-21

41023-0028

1
Out of stock

41025

RIM,FR,21X1.60,BLACK

41025-0482-WC

1
Out of stock

41025A

RIM,RR,18X2.15,BLACK

41025-0483-WC

1
Out of stock

41029

SPOKE-INNER,225.5MMX162D

41029-0135

1
Out of stock

41029A

SPOKE-INNER,LH,205MMX104D

41029-0136

1
Out of stock

41029B

SPOKE-INNER,RH,200MMX98D

41029-0137

1
Out of stock

41032

NIPPLE-SPOKE

41032-0029

1
Out of stock

41032A

NIPPLE-SPOKE

41032-0041

1
Out of stock
