2019 Kawasaki KLX®150L Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2019 Kawasaki KLX®150L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

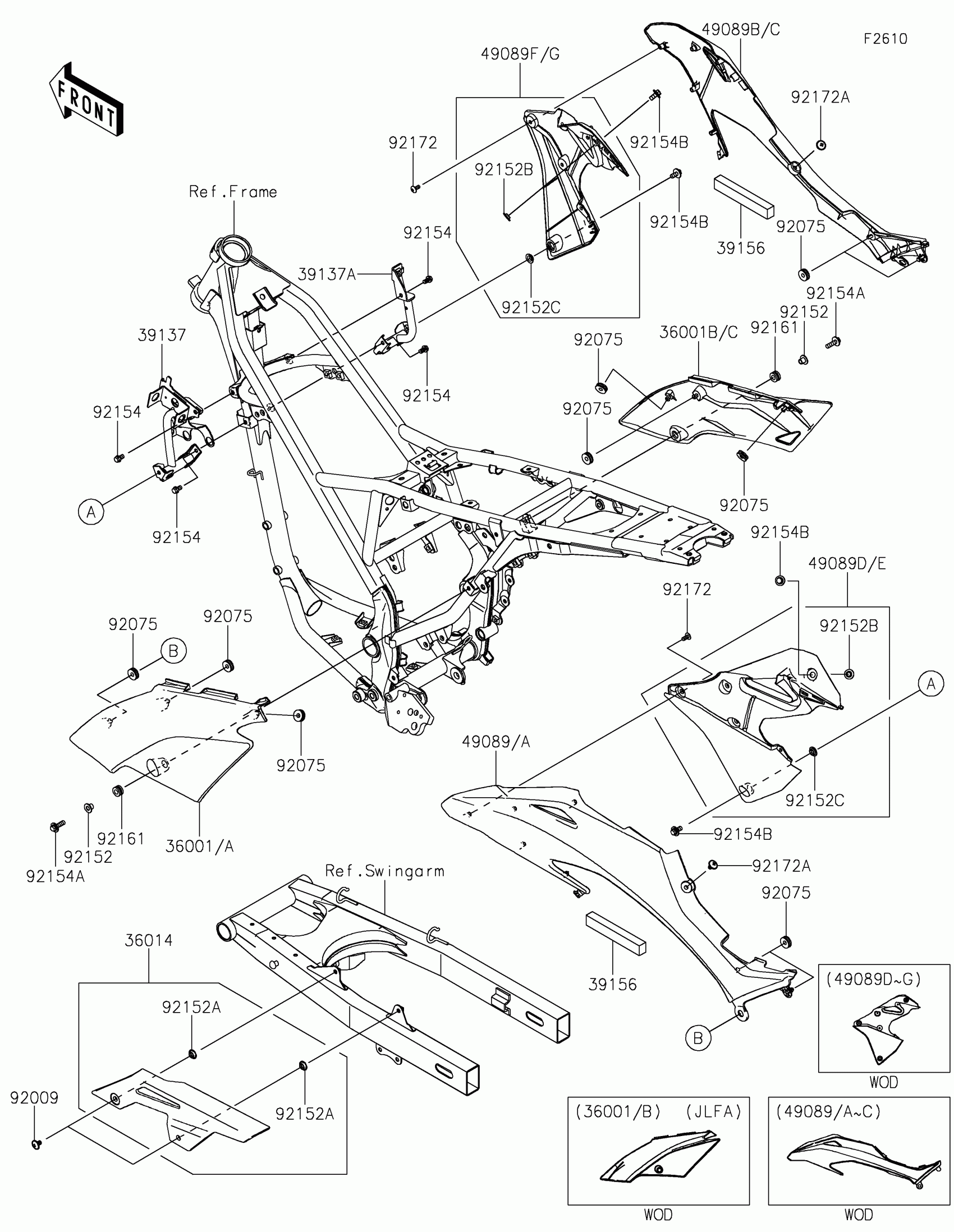

2019 Kawasaki KLX®150L Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36001

COVER-SIDE,LH,B.WHITE

36001-0625-266

1
Out of stock

36001A

COVER-SIDE,LH,EBONY

36001-0625-6C

1

$41.14

In stock

36001B

COVER-SIDE,RH,B.WHITE

36001-0626-266

1
Out of stock

36001C

COVER-SIDE,RH,EBONY

36001-0626-6C

1

$41.14

In stock

36014

CASE-CHAIN

36014-0560

1

$16.37

In stock

39137

STAY-COMP,LH,P.SILVER

39137-0620-458

1
Out of stock

39137A

STAY-COMP,RH,P.SILVER

39137-0663-458

1
Out of stock

39156

PAD

39156-0813

1

$1.69

In stock

49089

SHROUD-ENGINE,LH,UPP,L.GREEN

49089-0868-290

1
Out of stock

49089A

SHROUD-ENGINE,LH,UPP,EBONY

49089-0868-6C

1
Out of stock

49089B

SHROUD-ENGINE,RH,UPP,L.GREEN

49089-0869-290

1
Out of stock

49089C

SHROUD-ENGINE,RH,UPP,EBONY

49089-0869-6C

1
Out of stock

49089D

SHROUD-ENGINE,LH,LWR,L.GREEN

49089-0870-290

1
Out of stock

49089E

SHROUD-ENGINE,LH,LWR,EBONY

49089-0870-6C

1
Out of stock

49089F

SHROUD-ENGINE,RH,LWR,L.GREEN

49089-0871-290

1
Out of stock

49089G

SHROUD-ENGINE,RH,LWR,EBONY

49089-0871-6C

1
Out of stock

92009

SCREW,6X10

92009-1729

1
Out of stock

92075

DAMPER

92075-1629

1
Out of stock

92152

COLLAR,6.3X8.3X9.2

92152-1725

1
Out of stock

92152A

COLLAR,8.8X16X4

92152-1731

1
Out of stock

92152B

COLLAR,6.6X9X4

92152-1982

1
Out of stock

92152C

COLLAR,8.8X16X4

92152-2185

1
Out of stock

92154

BOLT,FLANGED,6X10

92154-0459

1
Out of stock

92154A

BOLT,FLANGED,6X22

92154-1184

1
Out of stock

92154B

BOLT,FLANGED,6X14

92154-1231

1
Out of stock

92161

DAMPER,8X16X8.6

92161-0685

1
Out of stock

92172

SCREW,6X10

92172-0098

1
Out of stock

92172A

SCREW,5X12

92172-1095

1
Out of stock
