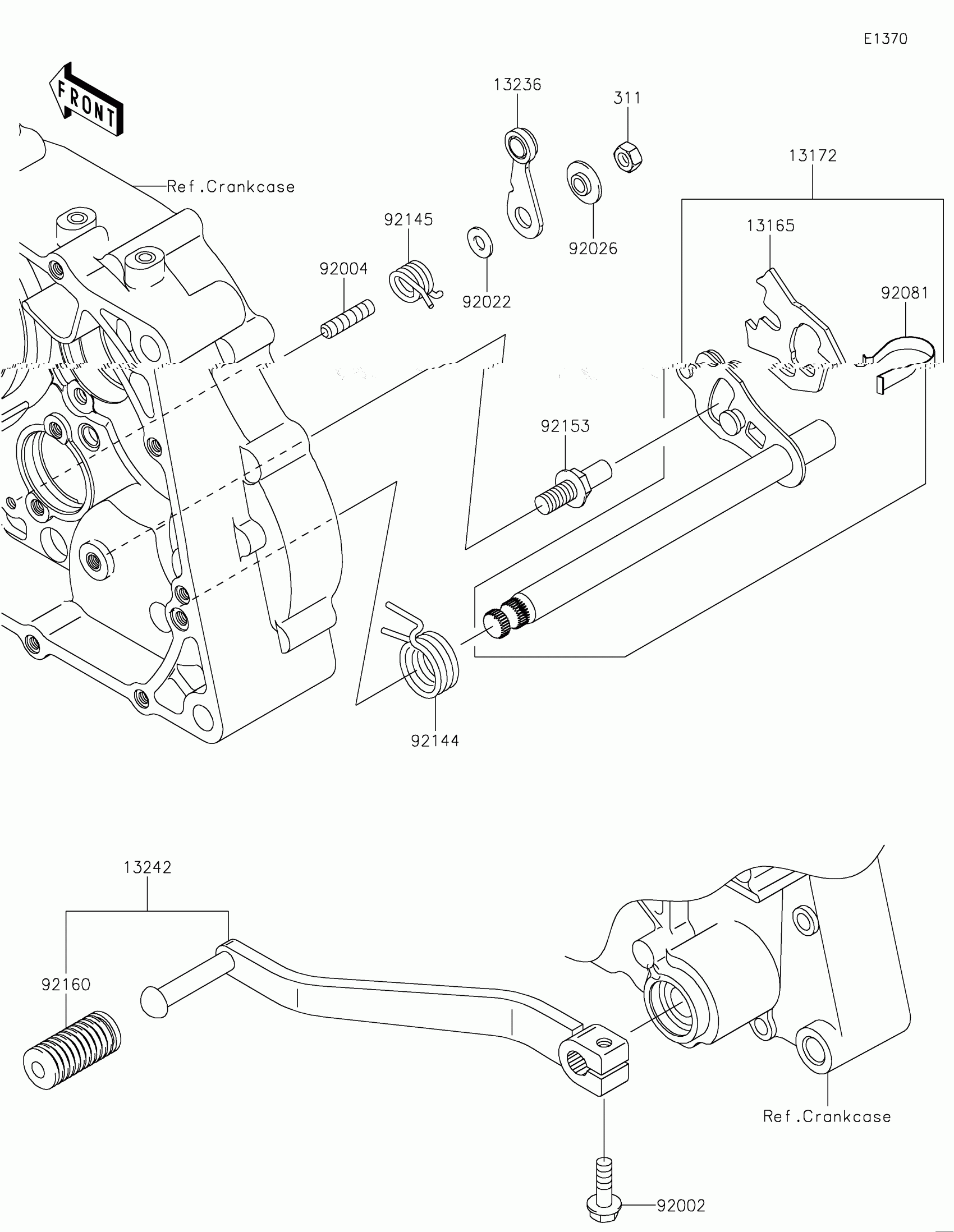

Kawasaki KLX®150L Gear Change Mechanism Diagram

Description

Price

13165

PAWL,CHANGE SHAFT

13165-0003

$3.66

13172

SHAFT-ASSY-CHANGE

13172-0009

$75.55

13236

LEVER-COMP,DRUM POSITION

13236-0739

$10.41

13242

LEVER-ASSY-CHANGE,PEDAL

13242-0123

Unavailable

92002

BOLT,6X20

92002-1237

$3.29

92004

STUD,6X12

92004-0032

$1.54

92022

WASHER,6X12.8X1.2

92022-1827

$3.57

92026

SPACER

92026-0750

$4.85

92081

SPRING,CHANGE LEVER

92081-1829

$6.70

92144

SPRING,CHANGE PEDAL RETURN

92144-1345

$16.34

92145

SPRING

92145-0349

$7.39

92153

BOLT,8X15.5

92153-1144

$1.44

92160

DAMPER,CHANGE PEDAL

92160-1036

$3.85

311

NUT-HEX,6MM

311BA0600

$1.58
