2019 Kawasaki KLX®150L Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2019 Kawasaki KLX®150L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

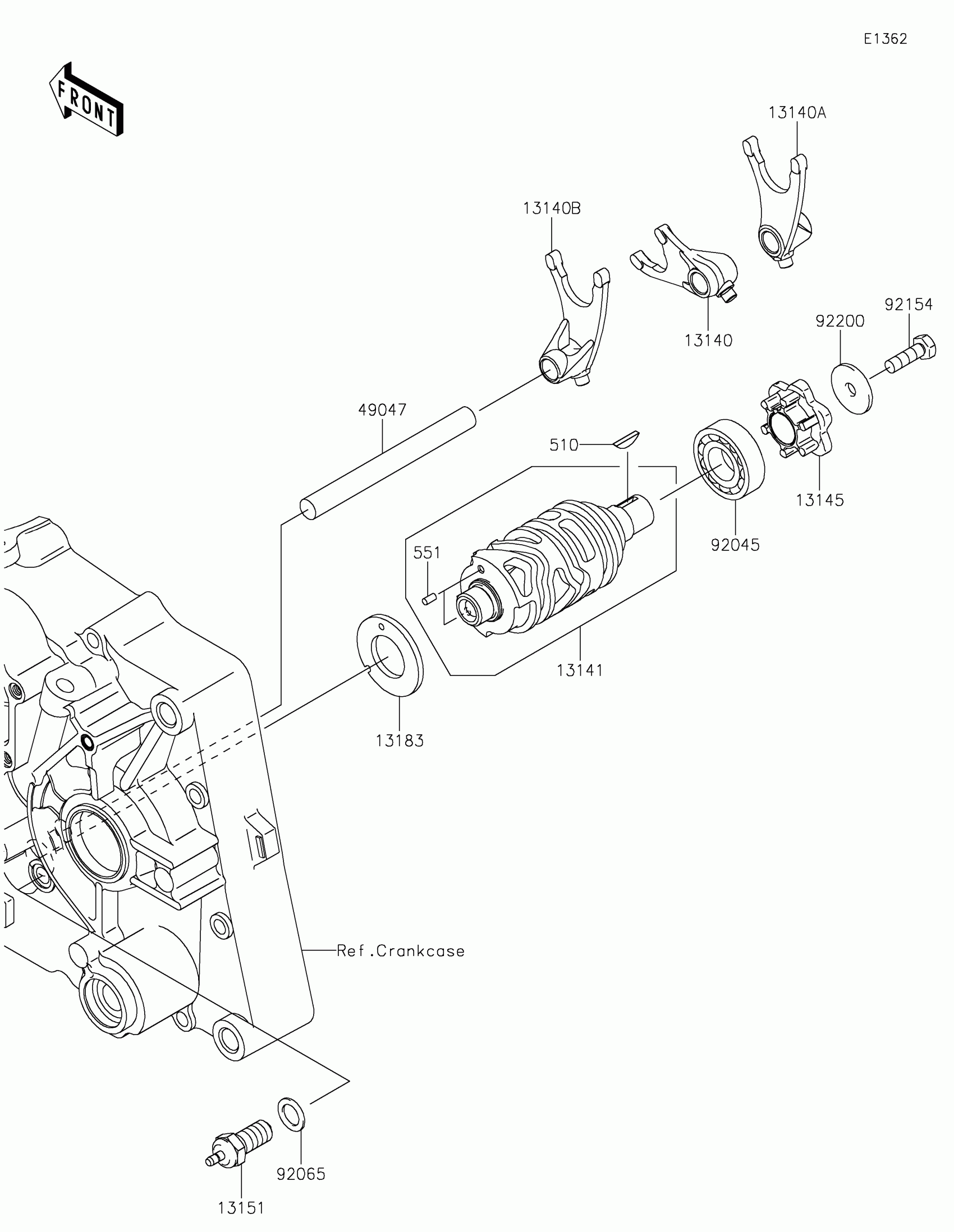

2019 Kawasaki KLX®150L Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13140

FORK-SHIFT,INPUT

13140-0066

1
Out of stock

13140A

FORK-SHIFT,OUTPUT RH

13140-0067

1
Out of stock

13140B

FORK-SHIFT,OUTPUT LH

13140-0068

1
Out of stock

13141

DRUM-CHANGE

13141-0572

1
Out of stock

13145

CAM-CHANGE DRUM

13145-0045

1
Out of stock

13151

SWITCH-COMP,NEUTRAL

13151-1099

1
Out of stock

13183

PLATE,CHANGE

13183-1066

1
Out of stock

49047

ROD-SHIFT

49047-0639

1
Out of stock

92045

BEARING-BALL,17X35X10

92045-0126

1
Out of stock

92065

GASKET,10.5X16X1

92065-058

1
Out of stock

92154

BOLT,UPSET,6X20

92154-1166

1
Out of stock

92200

WASHER,6.5X24X2

92200-0838

1
Out of stock

510

KEY-WOODRUFF

510A3200

1
Out of stock

551

PIN-DOWEL,3X6

551A0306

1
Out of stock
