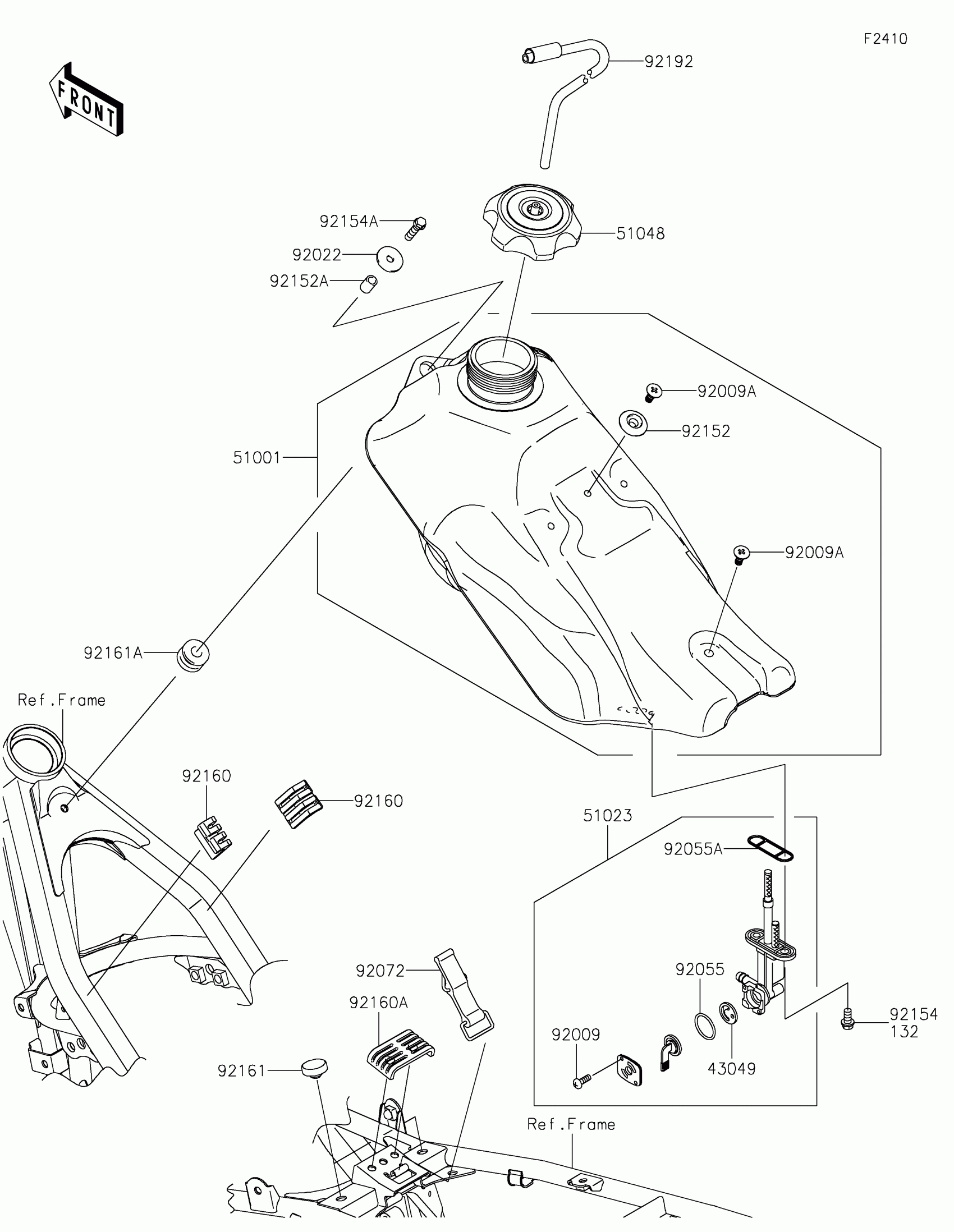

Kawasaki KLX®140R L Fuel Tank Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$0.97

43049

PACKING,VALVE

43049-1102

$5.54

51001

TANK-COMP-FUEL

51001-0847

$590.30

51023

TAP-ASSY,FUEL

51023-0720

$79.89

51048

CAP-ASSY-TANK,FUEL

51048-0009

$53.60

92009

SCREW,3X5

92009-1123

$0.54

92009A

SCREW,6MM

92009-1971

$3.19

92022

WASHER,6.5X24X2

92022-1690

$2.99

92027

COLLAR,6.8X10X14

92027-1966

$4.42

92055

RING-O,FUEL TAP LEVER

92055-0960

$3.81

92055A

RING-O,FUEL TAP PACKING

92055-1112

$3.81

92072

BAND,FUEL TANK

92072-0109

$9.35

92151

BOLT,FLANGED-SMALL,6X25

92151-1930

$1.98

92152

COLLAR

92152-0569

$4.95

92160

DAMPER,FUEL TANK

92160-1328

$5.61

92160A

DAMPER,FUEL TANK,RR

92160-1397

$7.71

92161

DAMPER

92161-0336

$4.27

92161A

DAMPER

92161-1523

$3.27

92192

TUBE

92192-0161

$9.86
