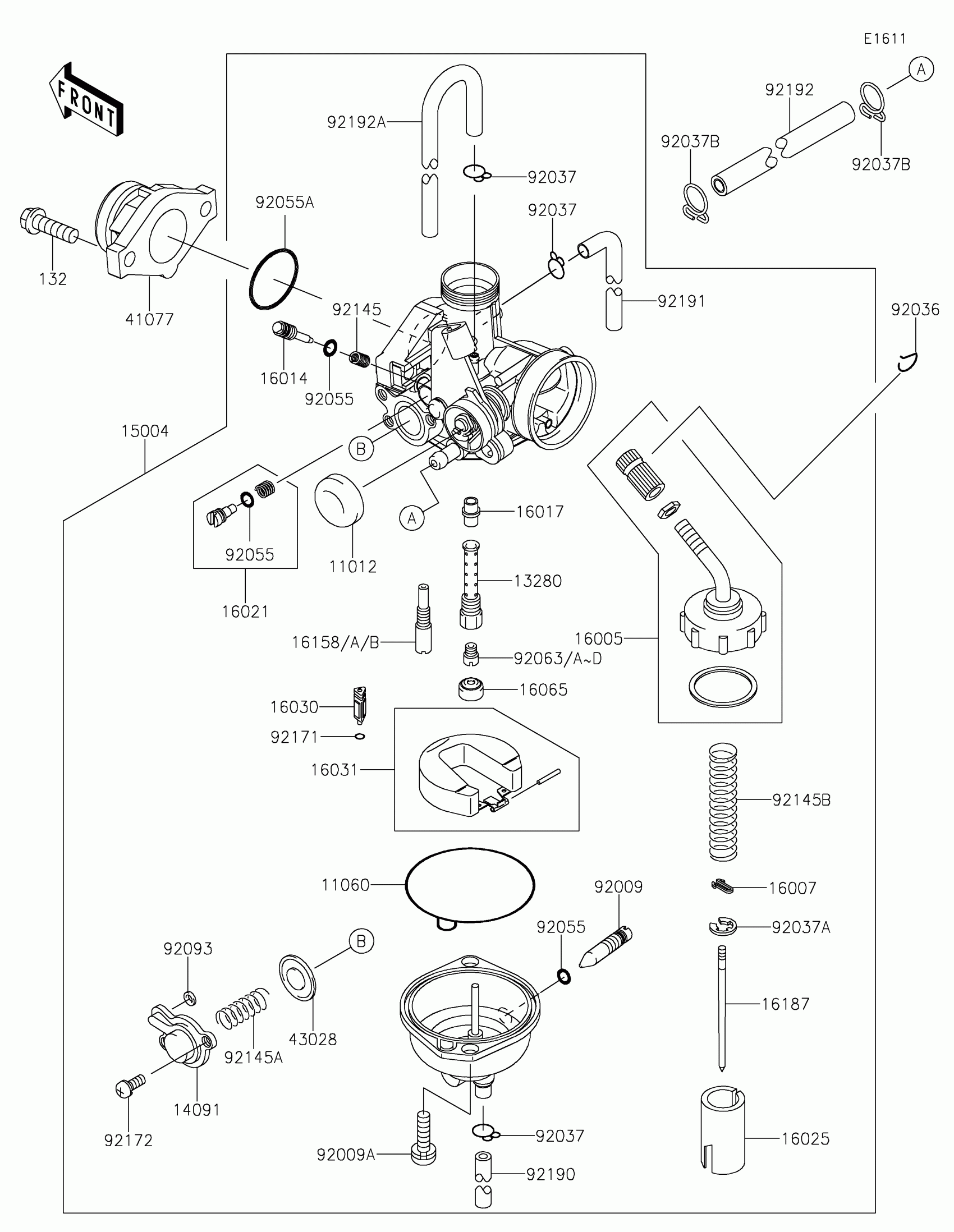

Find the part on the Carburetor diagram for your 2021 Kawasaki KLX®140R L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

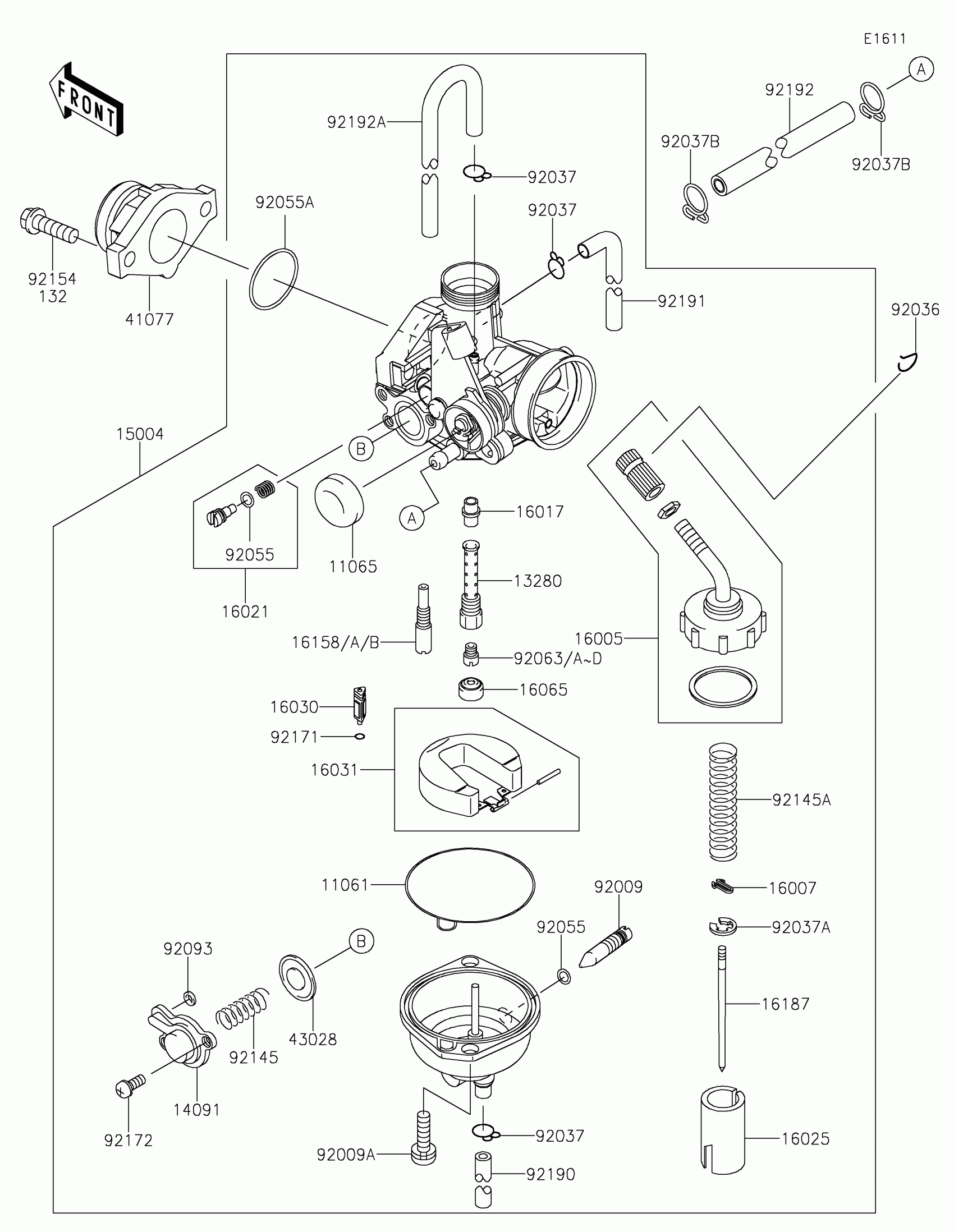

2021 Kawasaki KLX®140R L Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,CHOKE

11012-1940

1
Out of stock

11060

GASKET,FLOAT CHAMBER

11060-1700

1
Out of stock

13280

HOLDER,NEEDLE JET

13280-0286

1

$30.76

In stock

14091

COVER

14091-0285

1
Out of stock

15004

CARBURETOR-ASSY,PB20

15004-0024

1
Out of stock

16005

TOP-CHAMBER

16005-1091

1
Out of stock

16007

SEAT-SPRING

16007-1103

1
Out of stock

16014

SCREW-PILOT AIR

16014-0011

1
Out of stock

16017

JET-NEEDLE

16017-0014

1
Out of stock

16021

SCREW-THROTTLE STOP

16021-1203

1
Out of stock

16025

VALVE-THROTTLE

16025-0015

1
Out of stock

16030

VALVE-FLOAT

16030-0003

1
Out of stock

16031

FLOAT

16031-0004

1
Out of stock

16065

HOLDER-CARBURETOR,JET

16065-1106

1
Out of stock

16158

JET-SLOW,#35

16158-0004

—
Out of stock

16158A

JET-SLOW,#40

16158-0005

—
Out of stock

16158B

JET-SLOW,#38

16158-1063

1
Out of stock

16187

NEEDLE-JET,NNAA

16187-0283

1
Out of stock

41077

ADAPTER

41077-0038

1
Out of stock

43028

DIAPHRAGM

43028-0003

1
Out of stock

92009

SCREW,DRAIN

92009-1057

1
Out of stock

92009A

SCREW

92009-1750

1
Out of stock

92036

RING-SNAP

92036-018

1
Out of stock

92037

CLAMP,TUBE

92037-1142

1
Out of stock

92037A

CLAMP,JET NEEDLE

92037-1401

1
Out of stock

92037B

CLAMP

92037-1712

1
Out of stock

92055

RING-O

92055-1053

1
Out of stock

92055A

RING-O

92055-1541

1
Out of stock

92063

JET-MAIN,#90

92063-0013

—
Out of stock

92063A

JET-MAIN,#92

92063-0014

—
Out of stock

92063B

JET-MAIN,#95

92063-0015

1
Out of stock

92063C

JET-MAIN,#98

92063-0016

—
Out of stock

92063D

JET-MAIN,#100

92063-0017

—
Out of stock

92093

SEAL-"U"RING

92093-1046

1
Out of stock

132

1

$0.94

In stock

92145

SPRING

92145-0004

1
Out of stock

92145A

SPRING

92145-0217

1
Out of stock

92145B

SPRING

92145-0610

1
Out of stock

92171

CLAMP

92171-1837

1
Out of stock

92172

SCREW

92172-0165

1
Out of stock

92190

TUBE,3.5X6.5X240

92190-1218

1
Out of stock

92191

TUBE,3.5X6.5X298

92191-1142

1
Out of stock

92192

TUBE,5X10X150

92192-0477

1
Out of stock

92192A

TUBE,3.5X6.5X18/320

92192-0690

1
Out of stock
