2021 Kawasaki KLX®140R L Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2021 Kawasaki KLX®140R L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

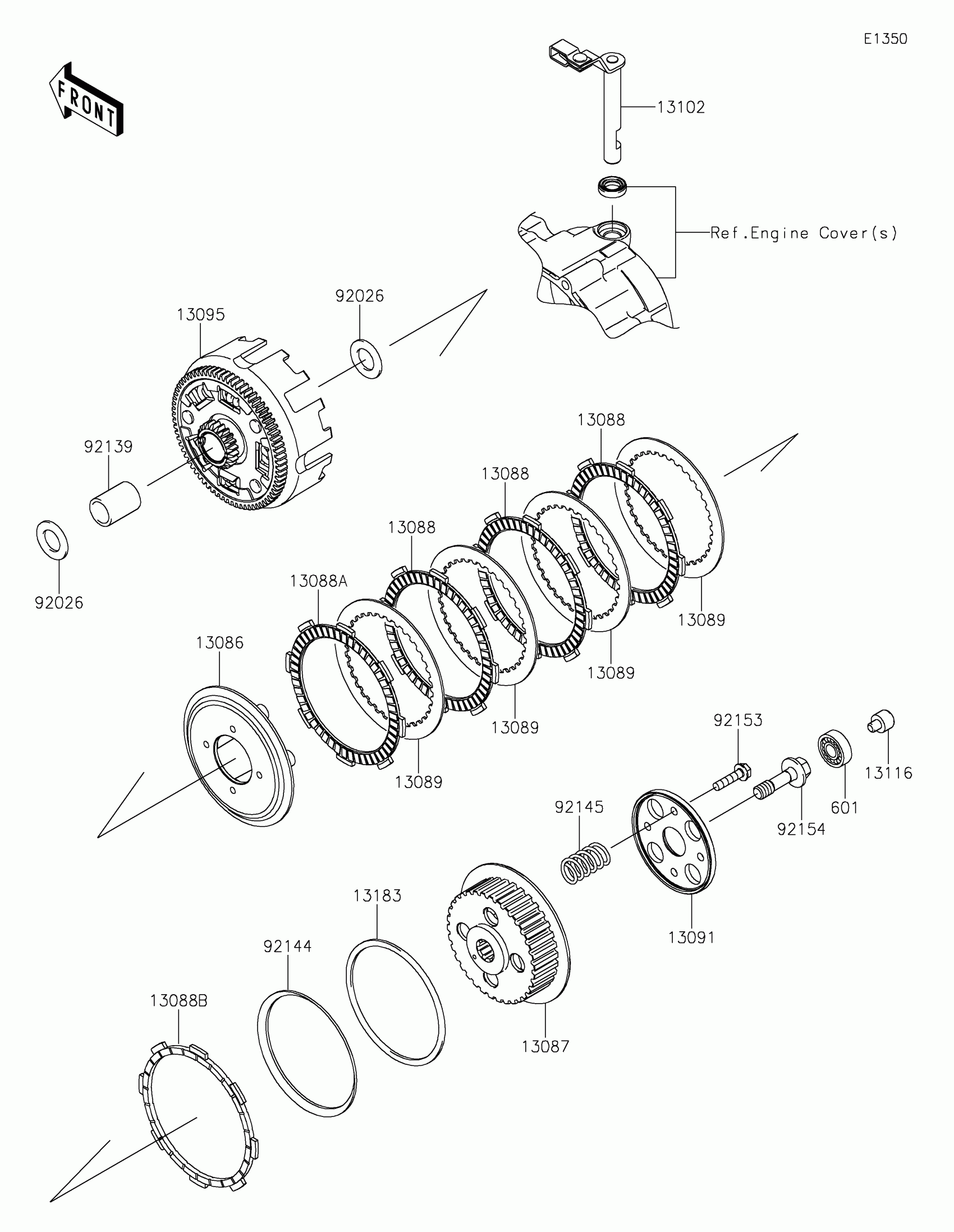

2021 Kawasaki KLX®140R L Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13086

WHEEL-CLUTCH

13086-1070

1
Out of stock

13087

HUB-CLUTCH

13087-1161

1
Out of stock

13088

PLATE-FRICTION

13088-0040

1
Out of stock

13088A

PLATE-FRICTION

13088-0041

1
Out of stock

13088B

PLATE-FRICTION,ID=100

13088-1077

1
Out of stock

13089

PLATE-CLUTCH

13089-1108

1
Out of stock

13091

1

$40.17

In stock

13095

HOUSING-COMP-CLUTCH

13095-0078

1

$195.74

In stock

13116

ROD-PUSH

13116-1136

1
Out of stock

13183

PLATE

13183-1274

1
Out of stock

13236

LEVER-COMP,CLUTCH RELEASE

13236-0159

1
Out of stock

601

BEARING-BALL

601A6000

1
Out of stock

92026

SPACER

92026-1614

1
Out of stock

92139

BUSHING,17X22X30

92139-0244

1
Out of stock

92144

SPRING,CLUTCH

92144-1289

1
Out of stock

92145

SPRING

92145-0759

1
Out of stock

92153

BOLT,10X36

92153-0794

1
Out of stock

92153A

BOLT,6X25

92153-1067

1
Out of stock
