2021 Kawasaki KLX®140R F Swingarm Diagram

← All diagrams

Find the part on the Swingarm diagram for your 2021 Kawasaki KLX®140R F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

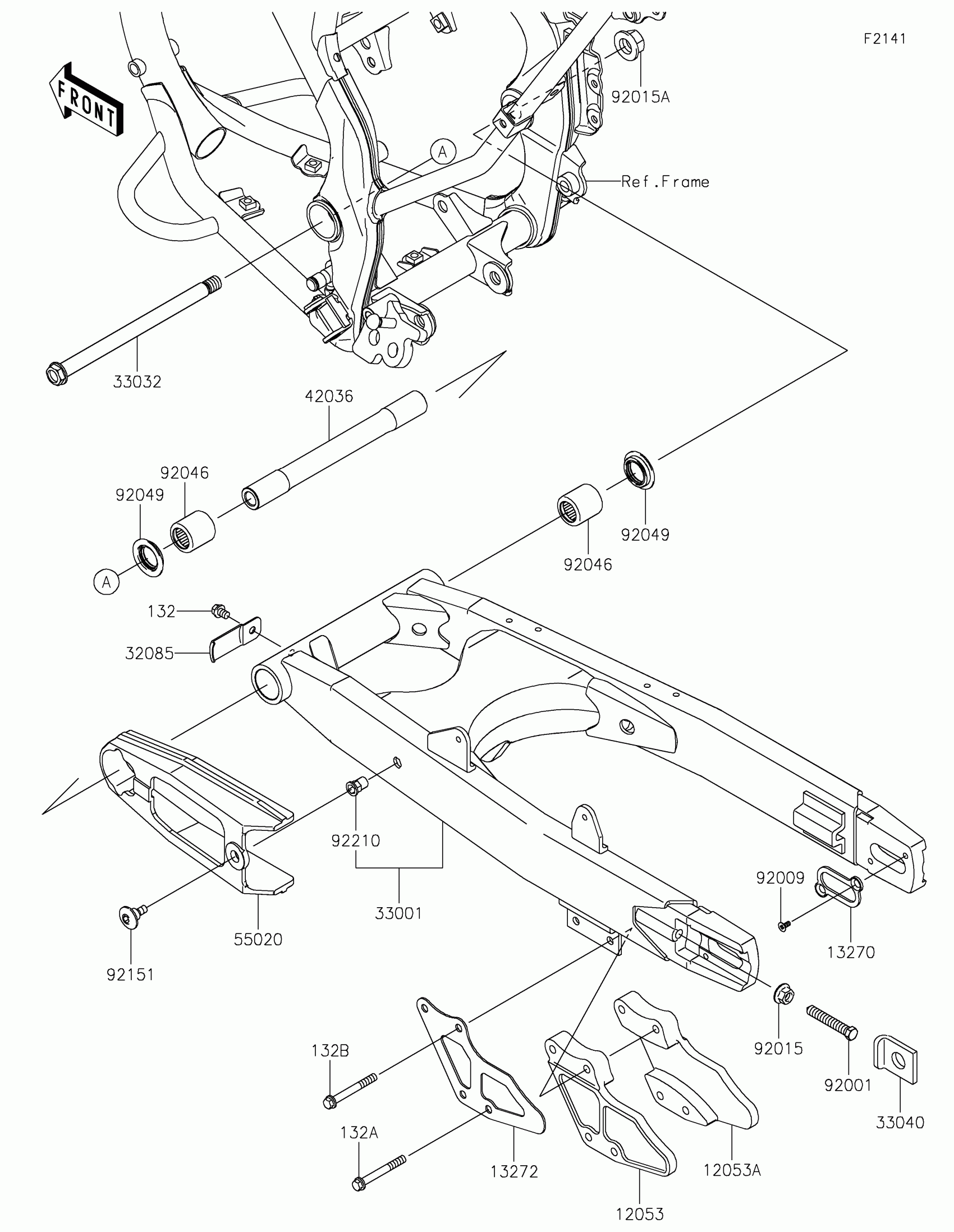

2021 Kawasaki KLX®140R F Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12053

GUIDE-CHAIN

12053-0116

1
Out of stock

12053A

GUIDE-CHAIN

12053-0118

1
Out of stock

132

BOLT-FLANGED-SMALL,6X8

132BA0608

1
Out of stock

13270

PLATE

13270-1899

1
Out of stock

13272

PLATE,CHAIN GUIDE

13272-0406

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X45

132BA0645

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X50

132BA0650

1
Out of stock

32085

STOPPER

32085-0138

1
Out of stock

33001

ARM-COMP-SWING

33001-0656

1
Out of stock

33032

SHAFT-SWING ARM,14X227

33032-0030

1
Out of stock

33040

ADJUSTER-CHAIN

33040-0032

1
Out of stock

42036

SLEEVE,PIVOT,L=197.8

42036-0045

1
Out of stock

55020

GUARD,CHAIN

55020-0336

1
Out of stock

92001

BOLT,8X46

92001-1179

1
Out of stock

92009

SCREW,5X10

92009-1828

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1014

1
Out of stock

92015A

NUT,14MM

92015-1407

1
Out of stock

92046

BEARING-NEEDLE,BM202726

92046-1110

1
Out of stock

92049

SEAL-OIL,ARM

92049-1109

1
Out of stock

92151

BOLT,SOCKET,6X18

92151-1149

1
Out of stock

92210

NUT,POP,6MM,L=15

92210-1397

1
Out of stock
